CUDAOpening

CUDAOpening[img,r]

gives the morphological opening of img with respect to a range-r square.

CUDAOpening[list,r]

gives the morphological opening of list with respect to a range-r square.

CUDAOpening[mem,r]

gives the morphological opening of mem with respect to a range-r square.

Details and Options

  • The CUDALink application must be loaded using Needs["CUDALink`"].
  • CUDAOpening works with binary, grayscale, and other images.
  • CUDAOpening[image,r] is equivalent to Opening[image,r].
  • If multiple image channels are present, CUDAOpening operates on each of them separately.
  • The following options can be given:
  • "Device"Automaticdevice used for CUDA computation
    Padding"Fixed"value used on boundary
    "OutputMemory"NoneCUDAMemory where output is stored

Examples

Basic Examples  (5)Summary of the most common use cases

First, load the CUDALink application:

In[1]:=1
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-9h8a50

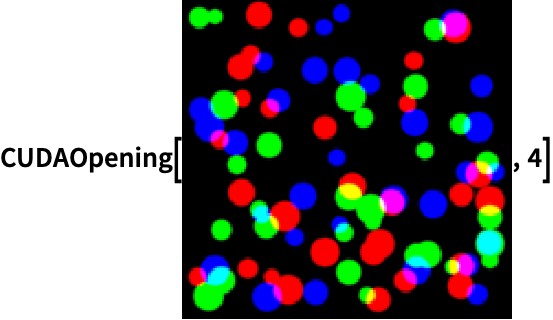

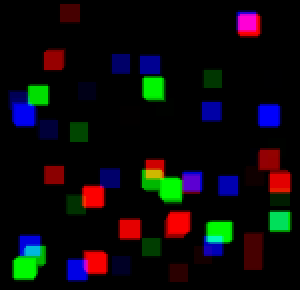

Use morphological opening to extract objects larger than the structuring element:

In[2]:=2
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-eifnxu
Out[2]=2

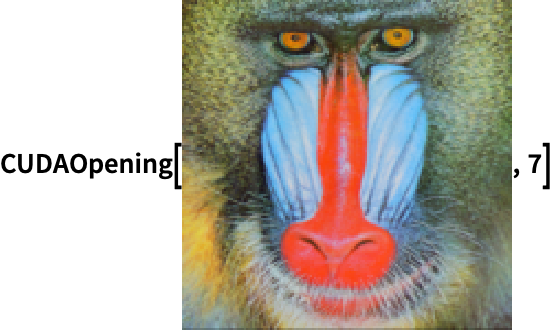

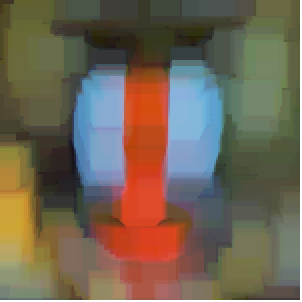

The radius can be varied:

In[1]:=1
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-400cb1
Out[1]=1

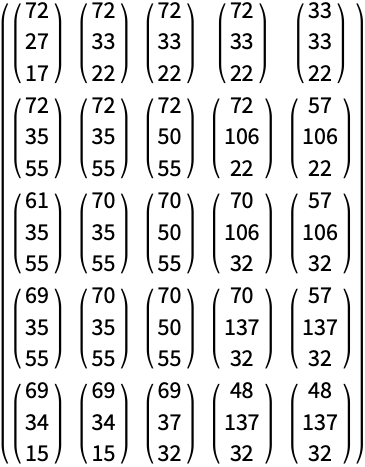

CUDAOpening works with lists:

In[1]:=1
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-hjc1w

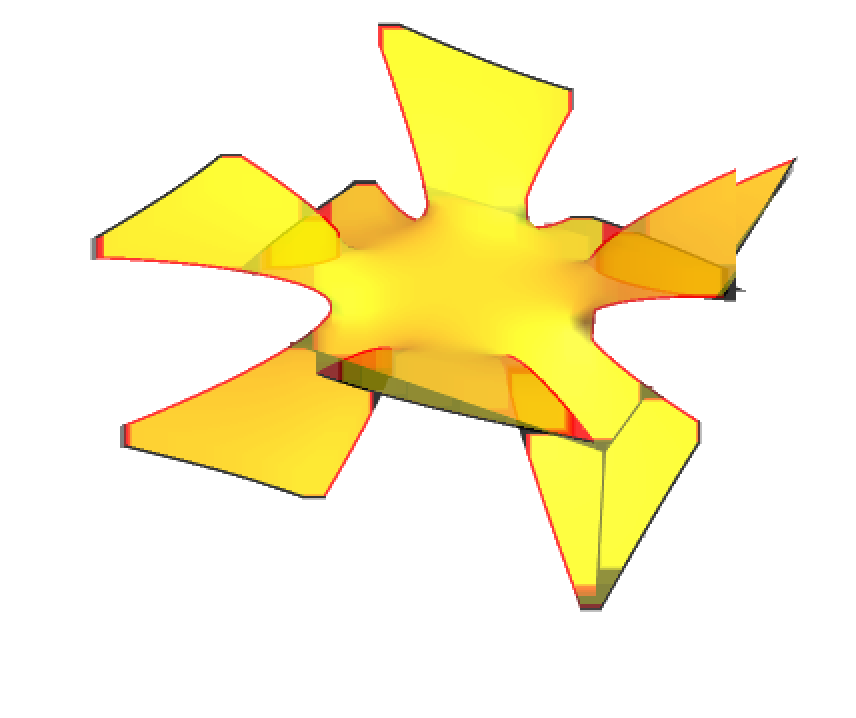

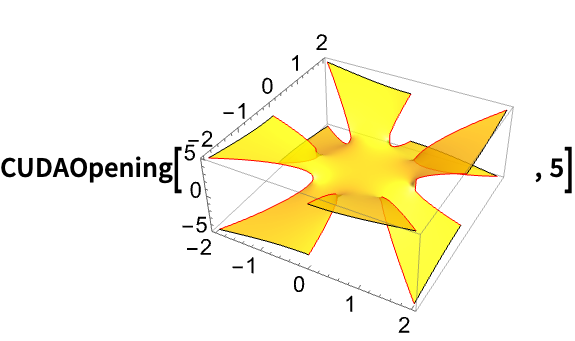

CUDAOpening works with graphics objects:

In[1]:=1
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-bbavb0
Out[1]=1

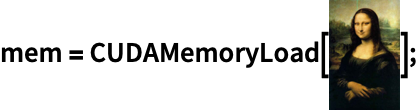

Using CUDAMemory, you can speed up computation by reducing the time spent on memory operations. This loads memory onto the GPU:

In[1]:=1
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-f3hsxr

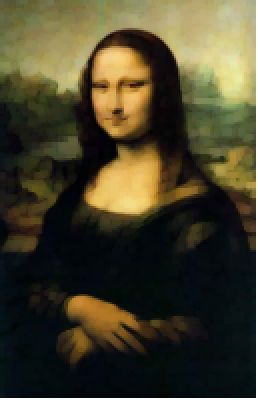

This performs the opening operation:

In[2]:=2
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-ie3ki6
Out[2]=2

This gets the memory back to the CPU:

In[3]:=3
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-dg0ah9
Out[3]=3

Memory must be deleted:

In[4]:=4
✖
https://wolfram.com/xid/0cer7h7p4pr1m44sijmazvju6-ccytfa
