CompositeBezier

As of Version 7.0, some of the functionality of the Splines Package is now built into the Wolfram Language kernel. »

CompositeBezier

is a setting specifying the type of spline generated by Spline and SplineFit.

Details and Options

  • To use CompositeBezier, you first need to load the Splines Package using Needs["Splines`"].
  • A composite Bézier spline is made up of a series of third‐order Bézier curves with C^(1) continuity. It alternates interpolating points and control points.
  • If the number of points given is even, then the last two points are reversed so that the final point is interpolated and the next to last is a control point for the final segment; if odd, then the final vertex is doubled.

Examples

Basic Examples  (1)

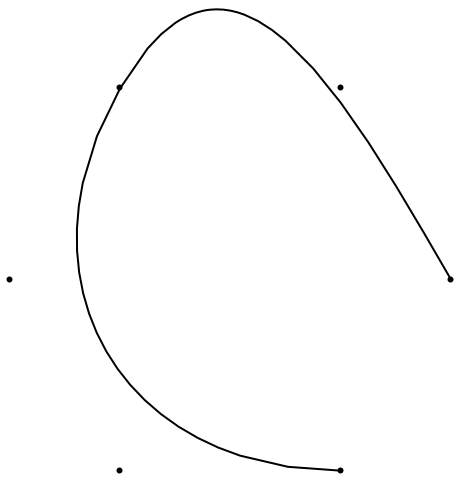

Composite Bézier splines go through some, but not all, of the points:
