RLE (.rle)

[Experimental]

Background & Context

    • Raster image format.
    • A very simple lossless data compression.
    • Compresses image data using run-length encoding.
    • Efficient in compressing black-and-white images.
    • Plain text format.
    • Superseded by other raster formats such as GIF.

Import & Export

  • Import["file.rle"] imports an RLE file, returning an Image object.
  • Import["file.rle",elem] imports the specified element from an RLE file.
  • The import format can be specified with Import["file","RLE"] or Import["file",{"RLE",elem,…}].
  • Export["file.rle",expr] exports an image, graphics and numeric arrays to an RLE file.
  • Image objects are by default exported at their full raster size. Graphics and other arbitrary expressions are exported using the same raster size as their displayed form.
  • See the following reference pages for full general information:
  • Import, Exportimport from or export to a file
    CloudImport, CloudExportimport from or export to a cloud object
    ImportString, ExportStringimport from or export to a string
    ImportByteArray, ExportByteArrayimport from or export to a byte array

Import Elements

  • General Import elements:
  • "Elements" list of elements and options available in this file
    "Summary"summary of the file
    "Rules"list of rules for all available elements
  • Data representation elements:
  • "Array"initial state as a SparseArray object
    "Image"initial state as an Image object
  • Metadata elements:
  • "Comments"comments stored in the file
    "ImageSize"size of the imported raster
  • An RLE file may include additional images such as intermediate results of a cellular automaton evolution.
  • Elements to access additional data:
  • "ArrayList"list of SparseArray objects
    "FullData"a list of associations including "Rule", "Array" and "Comments" key-value pairs
    "ImageCount"total number of images stored in the file
    "ImageList"list of Image objects

Options

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

Import an RLE file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-1nwrdq
Out[1]=1

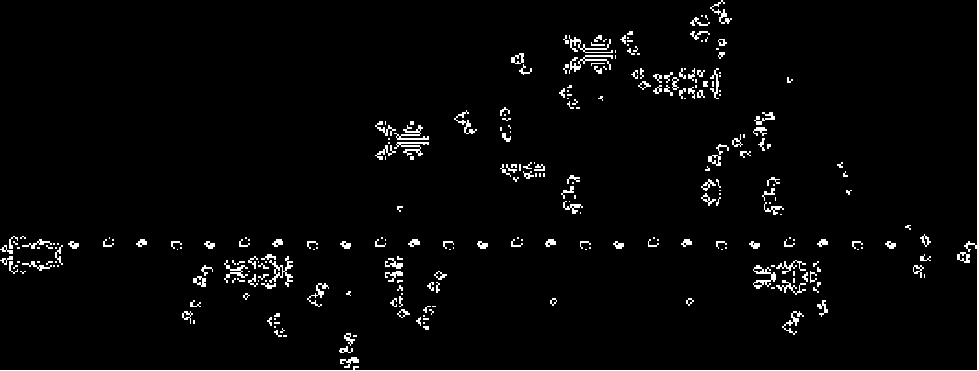

Import an RLE image:

In[2]:=2
✖
https://wolfram.com/xid/06157nllp-tzelme
Out[2]=2

Scope  (2)Survey of the scope of standard use cases

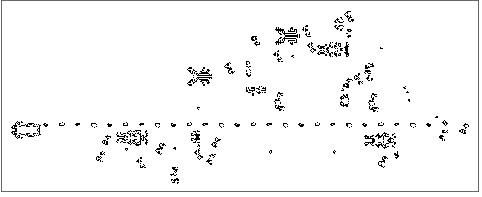

Plot data imported from an RLE file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-tvayks
Out[1]=1

Export data to an RLE file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-kty7ni
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/06157nllp-4jsjor
Out[2]=2

Import Elements  (10)

Available Elements  (2)

List of available elements:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-8mq70w
Out[1]=1

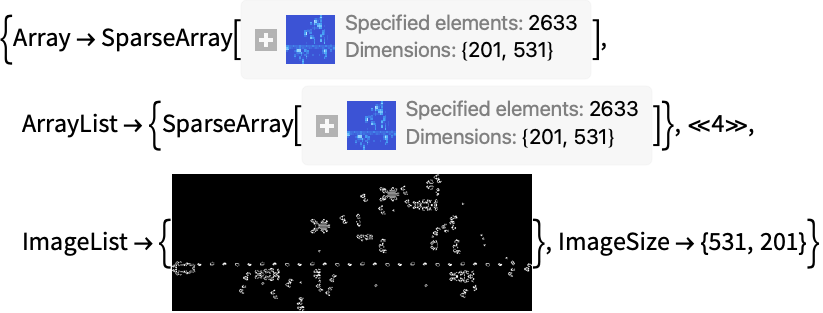

Import all elements as a list of rules:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-mvwstg

Data Representation  (4)

"Array"  (1)

Import image data:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-hfwow
Out[1]=1

Construct the image using a proper type:

In[2]:=2
✖
https://wolfram.com/xid/06157nllp-o8nr5i
Out[2]=2

"ArrayList"  (1)

Import all the data stored in the file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-oxk5kn
Out[1]=1

"Image"  (1)

Import image data stored in a file as an Image object:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-lwg3jm
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/06157nllp-jadh3j
Out[2]=2

"ImageList"  (1)

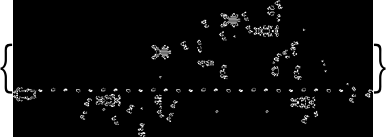

Import all the data stored in the file as Image objects:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-cqqm2u
Out[1]=1

Metadata Elements  (2)

"Comments"  (1)

Import comments stored in a file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-iyc2i7
Out[1]=1

"ImageSize"  (1)

Import the dimensions of the image:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-yomsbe
Out[1]=1

Additional Elements  (2)

"ImageCount"  (1)

Total number of images stored in the file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-2rjcxe
Out[1]=1

"FullData"  (1)

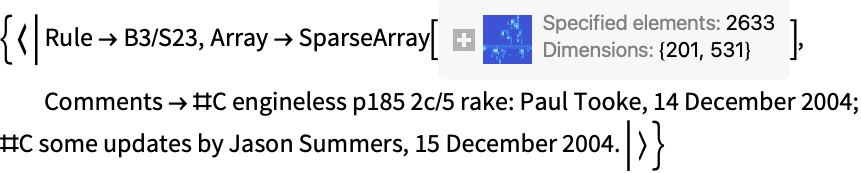

A list of associations including rule, data and comments for each image stored in the file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-wjfwbv
Out[1]=1

Export Options  (2)

"Rule"  (1)

Export data to a file:

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-o0ehe5
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/06157nllp-pj8hpt
Out[2]=2

Import the file back to see the full data:

In[3]:=3
✖
https://wolfram.com/xid/06157nllp-nhcu6o
Out[3]=3

Specify a custom rule on export:

In[4]:=4
✖
https://wolfram.com/xid/06157nllp-hahuvv
Out[4]=4

"Comments"  (1)

In[1]:=1
✖
https://wolfram.com/xid/06157nllp-7hv8z
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/06157nllp-tg0x9y
Out[2]=2

By default, no comment is stored in the file:

In[3]:=3
✖
https://wolfram.com/xid/06157nllp-ybt4bh
Out[3]=3

Specify a custom rule on export:

In[4]:=4
✖
https://wolfram.com/xid/06157nllp-6js0qv
Out[4]=4
