"GridEmbedding" (Graph Layout Method)

  • Vertex layout for GraphLayout.
  • Use grid embedding to lay out vertices of a graph.

Details & Suboptions

  • The grid embedding is a graph-drawing technique to position vertices of a graph on a grid.
  • The grid embedding is typically used to lay out grid graphs.
  • Possible settings to control the layout include:
  • "Dimension" Automaticdimension of the grid

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

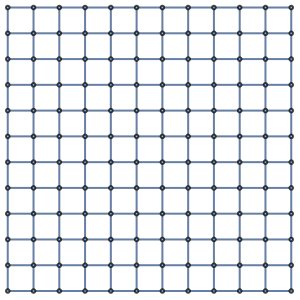

Place vertices on a grid:

In[1]:=1
✖
https://wolfram.com/xid/0baudcjxesko8wi-zmp4ic
Out[1]=1

Options  (1)Common values & functionality for each option

"Dimension"  (1)

Use "Dimension"dim to specify the dimensions of a grid:

In[1]:=1
✖
https://wolfram.com/xid/0baudcjxesko8wi-e1miro
Out[1]=1
