ElementMeshRegionProduct

ElementMeshRegionProduct[mesh1,mesh2]

represents the Cartesian product of the ElementMesh mesh1 and mesh2.

Details and Options

  • ElementMeshRegionProduct is also known as outer product region or region extrusion.

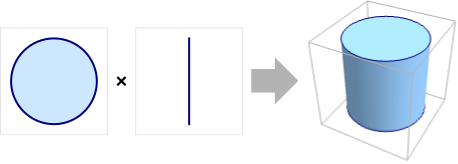

  • ElementMeshRegionProduct[mesh1,mesh2] represents the region .
  • The embedding dimension of the product region is the sum of embedding dimensions, and the geometric dimension is the sum of geometric dimensions.
  • The highest product dimension supported is 3.
  • ElementMeshRegionProduct has the same options as ToElementMesh, with the following additions and changes:
  • "RegionMarkerFunction" Nonespecify region markers

Examples

open allclose all

Basic Examples  (2)

Load the package:

Create an ElementMesh:

Compute the ElementMesh region product:

Visualize the region product mesh:

Create three ElementMesh instances:

Compute the ElementMesh region product:

Visualize the region product mesh:

Scope  (1)

Create two ElementMesh instances:

Extrude the first ElementMesh with the second by forming a region product:

Visualize the region product mesh:

Options  (2)

"RegionMarkerFunction"  (2)

Create a marker association and a region member function:

Define a region marker function:

Create ElementMesh that is used in each direction:

Compute the ElementMesh region product:

Inspect the "MeshElementMarkerUnion" of the generated mesh:

Visualize the region product mesh with the region markers:

Create a marker association and a region member function:

Define a region marker function:

Create ElementMesh that is used in each direction:

Compute the ElementMesh region product:

Inspect the "MeshElementMarkerUnion" of the generated mesh:

Visualize the region product mesh with the region markers:

Applications  (2)

Create a 2D graded mesh from a product of two 1D graded meshes:

Create a 1D graded mesh with a "Central" point distribution:

Create a second 1D graded mesh with a "Central" point distribution and 50 elements:

Construct a region product:

Visualize the region product of the anisotropic mesh:

Create a third 1D graded mesh with a "BothEnds" point distribution, 50 elements and an endpoint distance of 1/200:

Create the region product:

Visualize the 3D graded mesh:
