BoxesToSymbolicMathML

BoxesToSymbolicMathML[boxes]

converts the Wolfram Language box structure, boxes, into a MathML-flavored SymbolicXML structure.

Details and Options

  • To use BoxesToSymbolicMathML, you first need to load the XML Package using Needs["XML`"].
  • The following options can be given:
  • "Annotations"{}annotations to add to the output (acceptable values are combinations of "DocumentHeader", "XMLDeclaration", and "DOCTYPEDeclaration")
    "Formats"{"PresentationMathML"}type of MathML markup to generate
    "IncludeMarkupAnnotations"Truewhether to add annotation when exporting a formula with constructs specific to the Wolfram Language and no clear counterpart in MathML
    "MathAttributes"{}attributes to add to the root element of the MathML
    "UseUnicodePlane1Characters"Truewhether to replace plane 1 Unicode characters with similar plane 0 characters

Examples

Basic Examples  (1)Summary of the most common use cases

In[1]:=1
✖
https://wolfram.com/xid/0bo5yh7ar7s5wmv8-lp2fsa

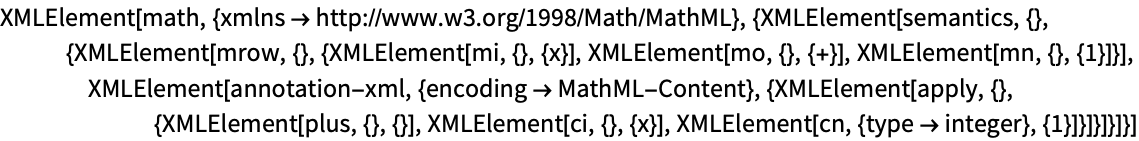

Generate some MathML-flavored SymbolicXML:

In[2]:=2
✖
https://wolfram.com/xid/0bo5yh7ar7s5wmv8-uyu
Out[2]=2

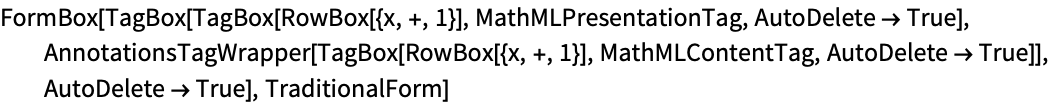

Use the result to convert the data into a Wolfram Language box expression:

In[3]:=3
✖
https://wolfram.com/xid/0bo5yh7ar7s5wmv8-yjn
Out[3]=3

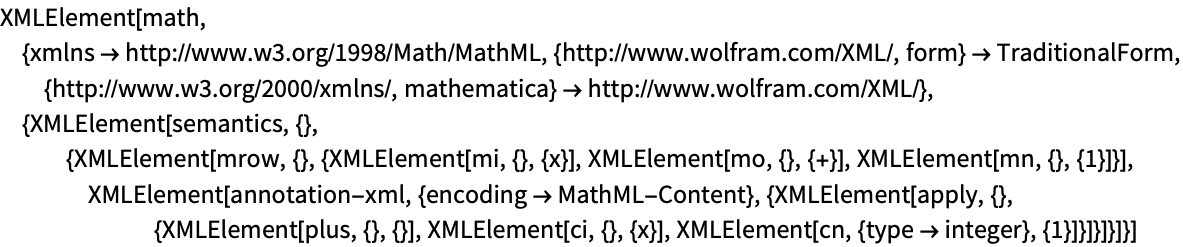

Recover the SymbolicMathML:

In[4]:=4
✖
https://wolfram.com/xid/0bo5yh7ar7s5wmv8-po4
Out[4]=4
