DirichletWindow

DirichletWindow[x]

represents a Dirichlet window function of x.

Details

  • DirichletWindow, also known as the rectangular or boxcar window, is a window function used in signal processing applications where data needs to be processed in short segments.
  • DirichletWindow[x] is equal to  1 -1/2<=x<=1/2; 0 TemplateBox[{x}, Abs]>1/2; .
  • DirichletWindow automatically threads over lists.

Examples

open allclose all

Basic Examples  (3)

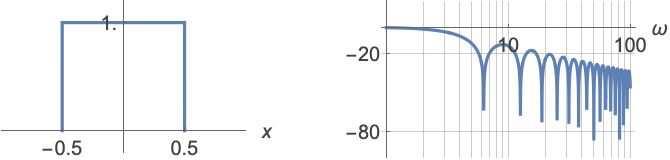

Shape of a 1D Dirichlet window:

Shape of a 2D Dirichlet window:

Extract the continuous function representing the Dirichlet window:

Scope  (4)

Evaluate numerically:

Translated and dilated Dirichlet window:

2D Dirichlet window with a circular support:

Discrete Dirichlet window of length 15:

Discrete 15×10 2D Dirichlet window:

Applications  (2)

Use a window specification to calculate sample PowerSpectralDensity:

Calculate the spectrum:

Compare to spectral density calculated without a windowing function:

The Dirichlet window does not change the spectral density:

Compare to the theoretical spectral density of the process:

Use a window specification for time series estimation:

Specify the window for the spectral estimator:

Properties & Relations  (3)

DirichletWindow is equivalent to UnitBox:

Fourier transform of the Dirichlet window:

Power spectrum of the Dirichlet window:

Discrete-time Fourier transform of the discrete Dirichlet window of length 11:

Magnitude at ω=0:

Power spectrum:
