ExactBlackmanWindow

ExactBlackmanWindow[x]

represents an exact Blackman window function of x.

Details

  • ExactBlackmanWindow is a window function typically used for finite impulse response (FIR) filter design and spectral analysis.
  • Window functions are used in applications where data is processed in short segments and have a smoothing effect by gradually tapering data values to zero at the ends of each segment.
  • ExactBlackmanWindow[x] is equal to  (4620 cos(2 pi x)+715 cos(4 pi x)+3969)/(9304) -1/2<=x<=1/2; 0 TemplateBox[{x}, Abs]>1/2;
  • ExactBlackmanWindow automatically threads over lists.

Examples

open allclose all

Basic Examples  (3)

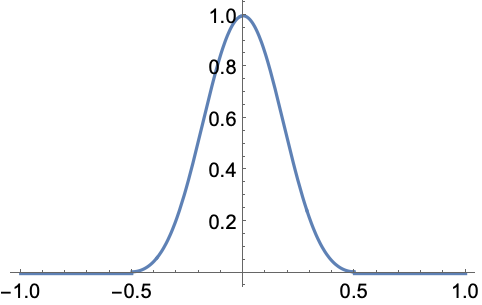

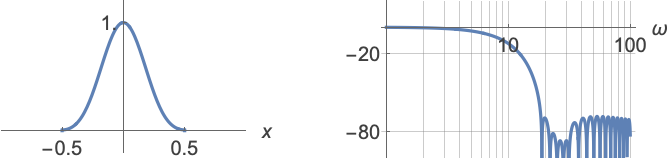

Shape of a 1D exact Blackman window:

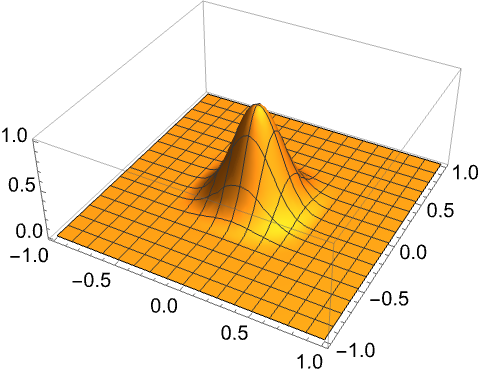

Shape of a 2D exact Blackman window:

Extract the continuous function representing the exact Blackman window:

Scope  (4)

Evaluate numerically:

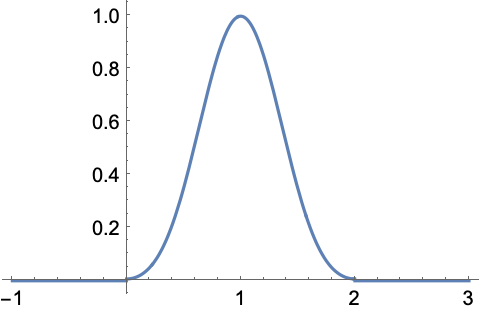

Translated and dilated exact Blackman window:

2D exact Blackman window with a circular support:

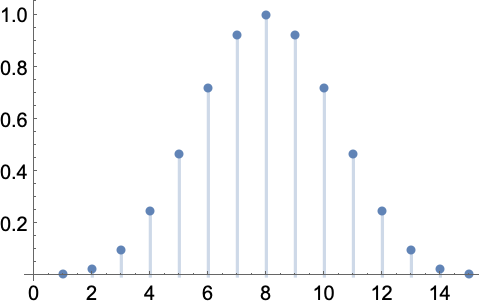

Discrete exact Blackman window of length 15:

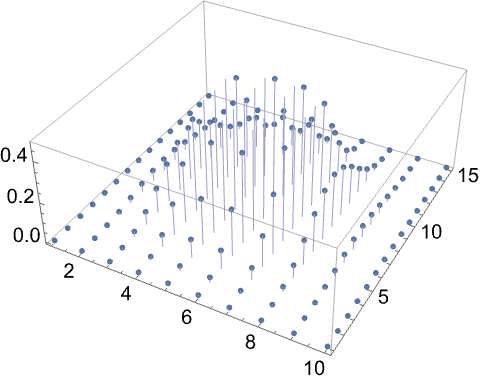

Discrete 15×10 2D exact Blackman window:

Applications  (3)

Create a moving average filter of length 11:

Smooth the filter using a exact Blackman window:

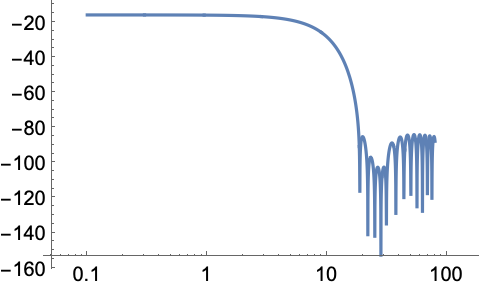

Log-magnitude plot of the frequency spectrum of the filters:

Use a window specification to calculate sample PowerSpectralDensity:

Calculate the spectrum:

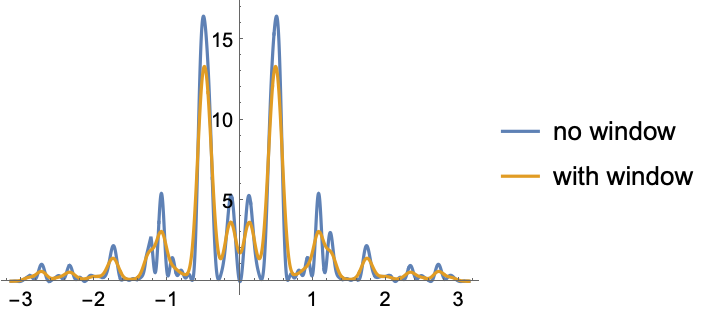

Compare to spectral density calculated without a windowing function:

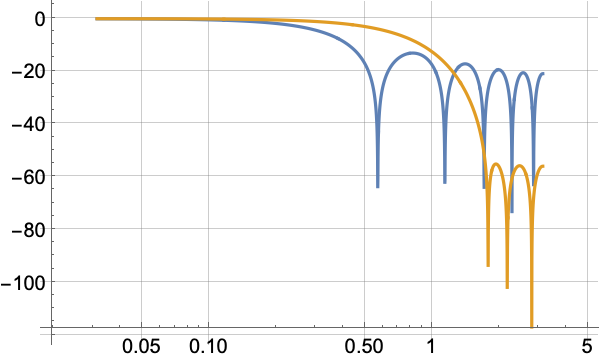

The plot shows that window smooths the spectral density:

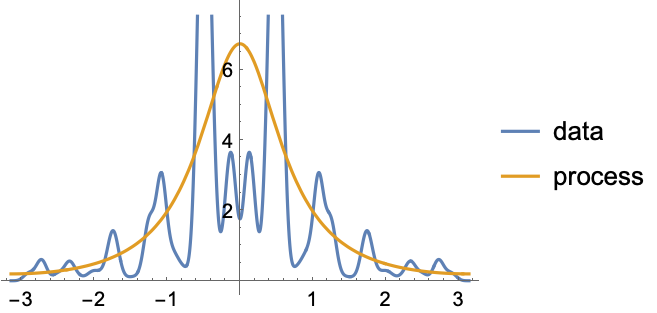

Compare to the theoretical spectral density of the process:

Use a window specification for time series estimation:

Specify window for spectral estimator:

Properties & Relations  (2)

The area under the exact Blackman window:

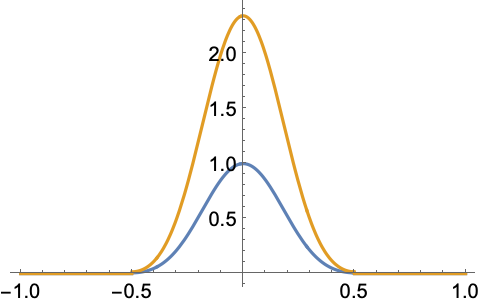

Normalize to create a window with unit area:

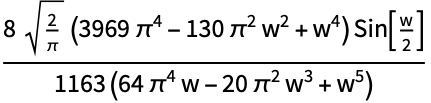

Fourier transform of the exact Blackman window:

Power spectrum of the exact Blackman window:
