LeaderSize

LeaderSize

is an option for Callout that specifies what sizes to use for leader lines.

Details

  • LeaderSize controls the sizes of the leader, neck, and gap used to connect the callout label to the anchor position.
  • Possible values for LeaderSize:
  • Automaticautomatic leader size
    lrlength of the leader
    {lr,lθ,s}leader length lr at angle lθ and the gap s to the anchor
    {{lr,lθ,s},{nr,nθ}}leader specification with neck length nr at angle nθ

Examples

Basic Examples  (3)

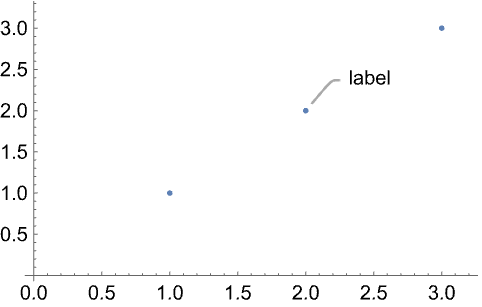

Specify the leader length for an automatically placed callout label:

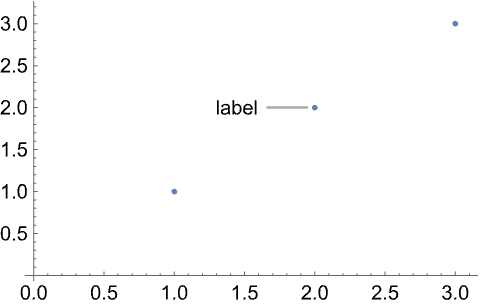

Specify the leader length for a relatively placed callout label:

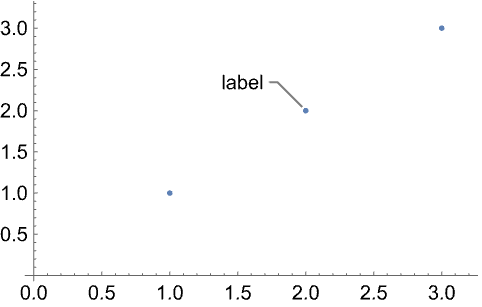

Specify the leader angle and gap:

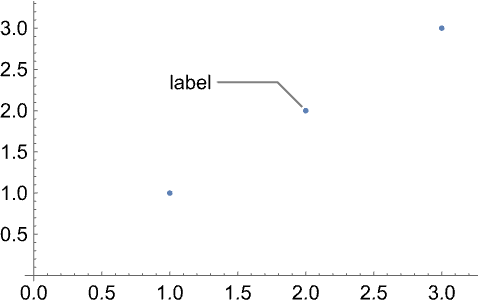

Increase the neck length:

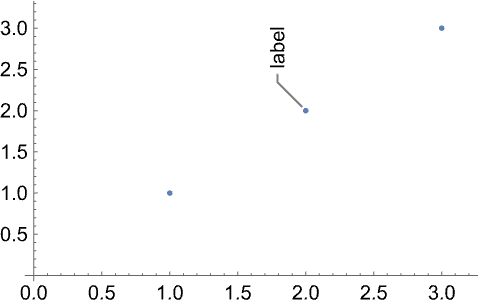

Rotate the neck and label:
