MaxDisplayedChildren
✖
MaxDisplayedChildren

[Experimental]

✖

is an option for Tree and related functions that specifies the maximum number of children that should be displayed for each subtree.

Details

  • MaxDisplayedChildren allows the children of the root node of a tree to be elided, as well as those of any subtrees at positions matching a pattern.
  • The following option settings can be used:
  • Automaticdisplay the default number of children
    mdisplay m children for the node »
    Allmdisplay m children for all nodes »
    TreeCases[pattern]mdisplay m children for nodes with data matching pattern »
    {pos1m1,pos2m2,…}display mi children for the node at relative position posi »
    {patt1m1,patt2m2,…}display mi children for nodes at positions matching patti »
  • The global variable $MaxDisplayedChildren gives the default number of children for all nodes.

Examples

open allclose all

Basic Examples  (3)Summary of the most common use cases

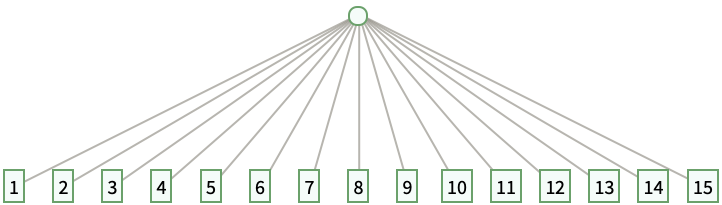

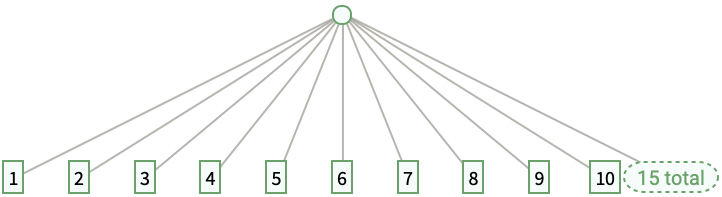

Display all children of the root node:

In[3]:=3
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-z8b82g
Out[3]=3

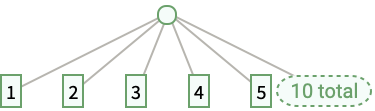

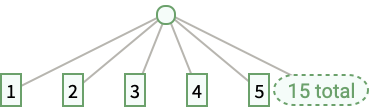

Display five children:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-mh7wkk
Out[1]=1

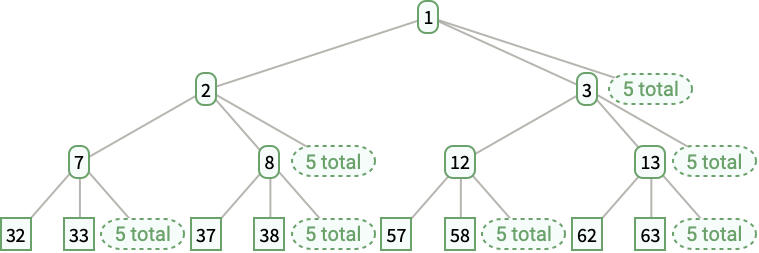

Display two children for all nodes:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-hg2j9a
Out[1]=1

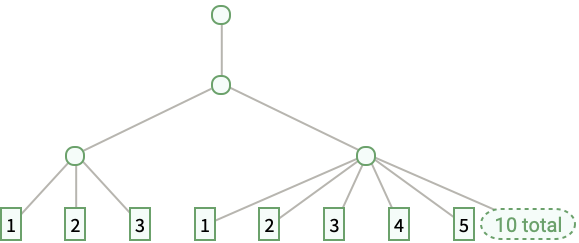

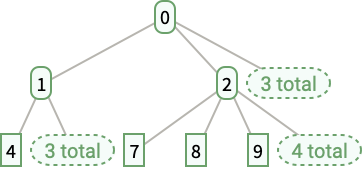

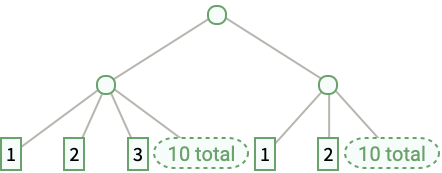

Specify a list of max child numbers:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-csslaf
Out[1]=1

Scope  (2)Survey of the scope of standard use cases

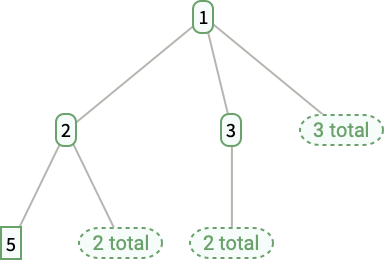

Specify positions using position patterns:

In[6]:=6
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-flg5lf
Out[6]=6

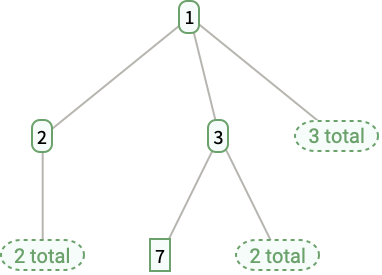

Specify positions using data patterns:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-tm8d43
Out[1]=1

Properties & Relations  (6)Properties of the function, and connections to other functions

Ten children are displayed by default:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-6ujmlz
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-h7bjr2
Out[2]=2

Setting $MaxDisplayedChildren=m specifies the default number of children to display for the option setting MaxDisplayedChildrenAutomatic:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-pkqs90
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-lsyula
Out[2]=2

Restore $MaxDisplayedChildren to its default:

In[3]:=3
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-jdbo4p

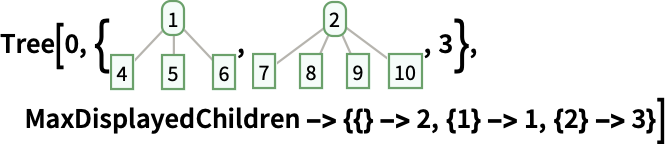

Maximum children for nodes can be specified by position:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-rzu1f0
Out[1]=1

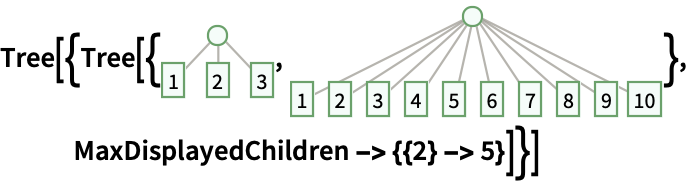

Specify the maximum number of children for a tree:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-5411c0
Out[1]=1

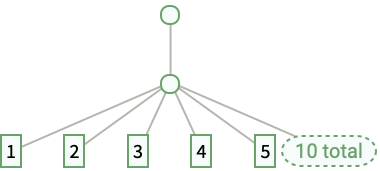

Maximum children specified by a subtree take precedence over those specified by its ancestors:

In[2]:=2
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-0ghtad
Out[2]=2

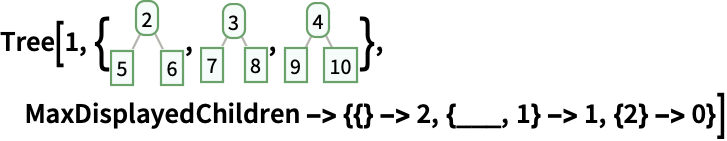

A position {i,j,…} in a subtree refers to its subtree at relative position {i,j,…}:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-i5nn9b
Out[1]=1

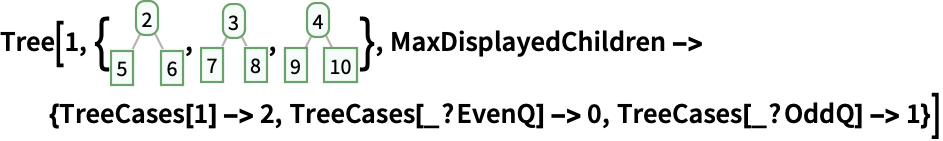

A relative position {2} at position {1} refers to the global position {1,2}:

In[2]:=2
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-djnkdj
Out[2]=2

In general, a pattern patt applies to subtrees at global positions {i,j,…} that match patt:

In[1]:=1
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-ym39qo
Out[1]=1

A list of patterns {patt1,patt2,…} applies to relative positions {i,j,…} that match the patti:

In[2]:=2
✖
https://wolfram.com/xid/08ufeaf3lcb9yy6-imuot7
Out[2]=2
