OpaqueRawPointer
✖
OpaqueRawPointer
Details

- RawPointer can be used to represent typed pointers.
- OpaqueRawPointer[ptr] can be used to cast a pointer to an untyped pointer.
- Information for an OpaqueRawPointer may include the following properties:
-
"Address" memory address - Properties can be accessed with OpaqueRawPointer[…][prop].
- Properties that can be extracted include all Information properties listed above.
Examples
open allclose allBasic Examples (1)Summary of the most common use cases
Get the pointer to a function in a library:

https://wolfram.com/xid/0d4mjmxkngc6v51y-dix5ow

This pointer can be used to load a foreign function:

https://wolfram.com/xid/0d4mjmxkngc6v51y-vijdmn


https://wolfram.com/xid/0d4mjmxkngc6v51y-difhb6

Scope (1)Survey of the scope of standard use cases
Information (1)
Get the pointer to a function in a library:

https://wolfram.com/xid/0d4mjmxkngc6v51y-foy396

Get Information about the pointer:

https://wolfram.com/xid/0d4mjmxkngc6v51y-mffoz6

Get the memory address of the pointer:

https://wolfram.com/xid/0d4mjmxkngc6v51y-8buros

Properties & Relations (3)Properties of the function, and connections to other functions
NullRawPointerQ returns True if an opaque raw pointer has 0 as its address:

https://wolfram.com/xid/0d4mjmxkngc6v51y-o7h4us

Get the pointer to a function in a library:

https://wolfram.com/xid/0d4mjmxkngc6v51y-njmgku

Convert an OpaqueRawPointer into a RawPointer:

https://wolfram.com/xid/0d4mjmxkngc6v51y-38texn

Convert the raw pointer back to an OpaqueRawPointer:

https://wolfram.com/xid/0d4mjmxkngc6v51y-127kwl

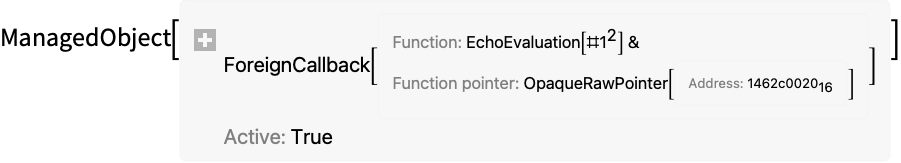

Create a foreign callback function:

https://wolfram.com/xid/0d4mjmxkngc6v51y-wpw6vf


https://wolfram.com/xid/0d4mjmxkngc6v51y-hh7ah2

Possible Issues (1)Common pitfalls and unexpected behavior

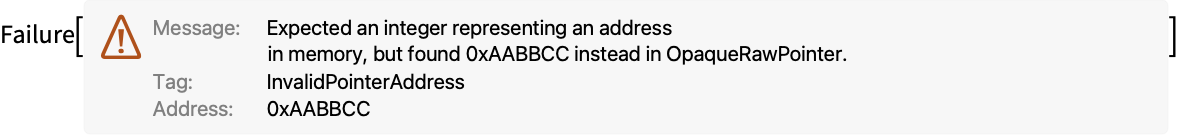

OpaqueRawPointer returns a Failure for invalid memory addresses:

https://wolfram.com/xid/0d4mjmxkngc6v51y-swz10k
