ExtendedLog

Background & Context

    • Extended Log Format.
    • Customizable log format for advanced logging.
    • Plain text format.
    • Represents each record as a line of text.
    • Developed by W3C.

Import

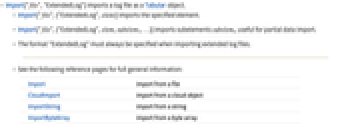

  • Import["file","ExtendedLog"] imports a log file as a Tabular object.
  • Import["file",{"ExtendedLog",elem}] imports the specified element.
  • Import["file",{"ExtendedLog",elem,subelem1,…}] imports subelements subelemi, useful for partial data import.
  • The format "ExtendedLog" must always be specified when importing extended log files.
  • See the following reference pages for full general information:
  • Importimport from a file
    CloudImportimport from a cloud object
    ImportStringimport from a string
    ImportByteArrayimport from a byte array

Import Elements

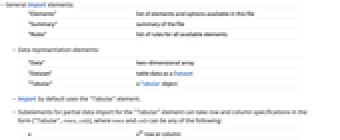

  • General Import elements:
  • "Elements" list of elements and options available in this file
    "Summary"summary of the file
    "Rules"list of rules for all available elements
  • Data representation elements:
  • "Data"two-dimensional array
    "Dataset"table data as a Dataset
    "Tabular"a Tabular object
  • Import by default uses the "Tabular" element.
  • Subelements for partial data import for the "Tabular" element can take row and column specifications in the form {"Tabular",rows,cols}, where rows and cols can be any of the following:
  • nnth row or column
    -ncounts from the end
    n;;mfrom n through m
    n;;m;;sfrom n through m with steps of s
    {n1,n2,…}specific rows or columns ni
  • Data descriptor elements:
  • "ColumnLabels"names of columns
    "ColumnTypes"association with data type for each column
    "Schema"TabularSchema object
  • Columns or identifiers typically present in an extended log file are:
  • "Date"date of the request
    "Time"time of the request
    "ClientToServerUsername"name of the client accessing the server or an IP number
    "ClientIP"IP address of the client
    "ClientToServerMethod"the HTTP method used
    "ClientToServerURIStem"URI stem only, without the query
    "ClientToServerURIQuery"query portion only
    "ServerToClientStatus"the HTTP status code returned to the client
    "TimeTaken"time to complete the transaction in seconds
  • Metadata elements:
  • "ColumnCount"number of columns stored in file
    "Dimensions"data dimensions
    "RowCount"number of rows stored in file

Import Options

  • General Import options:
  • "Schema"Automaticschema used to construct Tabular object
  • Possible settings for the "Schema" option include:
  • schemaa complete TabularSchema specification
    propvala schema property and value (see reference page for TabularSchema)
    <|"prop1"val1,…|>an association of schema properties and values

Examples

open all close all

Basic Examples  (2)

Import a log file as a Tabular:

Import the file summary:

Scope  (2)

Import metadata from a log file:

Import a sample row of a log file:

Import Elements  (20)

"ColumnCount"  (1)

Get the number of columns from a log file:

"ColumnLabels"  (1)

Get the column labels from a log file:

"ColumnTypes"  (1)

Get the inferred column types from a log file:

"Data"  (6)

Import a log file as a 2D list of values:

Import a single row from a log file:

Import multiple rows:

Import the first 5 rows:

Import a single element at a given row and column:

Import a single column:

"Dataset"  (1)

Import a log file as a Dataset:

"Dimensions"  (1)

Get the dimensions from a log file:

"RowCount"  (1)

Get the number of rows from a log file:

"Schema"  (1)

Get the TabularSchema object:

"Summary"  (1)

Summary of a log file:

"Tabular"  (6)

Import a log file as a Tabular object:

Import a single row:

Import multiple rows:

Import the first 5 rows:

Import a single element at a given row and column:

Import a single column:

Import Options  (2)

Import automatically infers column labels and types from data stored in a log file:

Use the "Schema" option to specify column labels and types:
