SystemModeler Archive (.sma)

[Experimental]

Background & Context

- System model files that include model dependencies.
- File format created by Wolfram Research, Inc.
- Imported result data is represented as a SystemModel.

Import & Export

See the following reference pages for full general information:

	Import, Export	import from or export to a file
	CloudImport, CloudExport	import from or export to a cloud object
	ImportString, ExportString	import from or export to a string
	ImportByteArray, ExportByteArray	import from or export to a byte array

Import Elements

General Import elements:
"Elements" list of elements and options available in this file

"Summary" summary of the file

"Rules" list of rules for all available elements

Options

Export option:
"IncludedLibraries" Automatic libraries to include in file
Possible values for "IncludedLibraries" are:

	Automatic	automatically decide what to include
	None	include no dependencies
	All	include all dependencies
	"User"	include dependencies not shipped with the system
	{lib₁,lib₂,…}	include the explicit libraries lib_i

Examples

open allclose all

Basic Examples (2)Summary of the most common use cases

Import a total model from an archive:

In[1]:=1

✖

https://wolfram.com/xid/0ev7ehu1-b4lvyk

Out[1]=1

Examine the model's equations:

In[2]:=2

✖

https://wolfram.com/xid/0ev7ehu1-ezrg2s

Out[2]=2

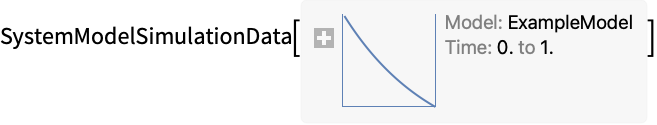

Simulate the model:

In[3]:=3

✖

https://wolfram.com/xid/0ev7ehu1-i0zv5r

Out[3]=3

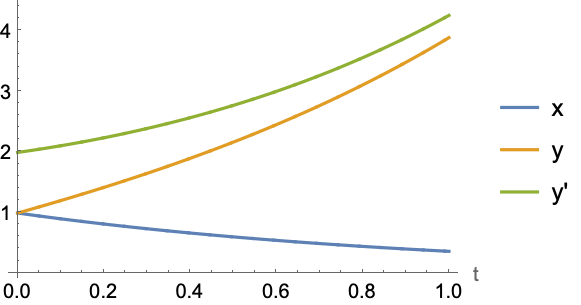

In[4]:=4

✖

https://wolfram.com/xid/0ev7ehu1-ce1mfj

Out[4]=4

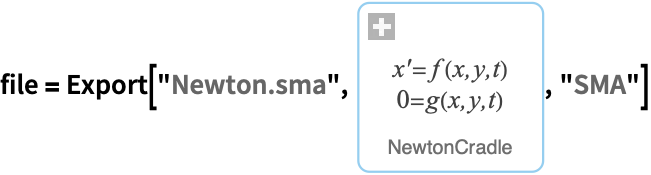

Export a model with dependencies:

In[1]:=1

✖

https://wolfram.com/xid/0ev7ehu1-ukfii1

Out[1]=1

Import the model again:

In[2]:=2

✖

https://wolfram.com/xid/0ev7ehu1-evrc7w

Out[2]=2

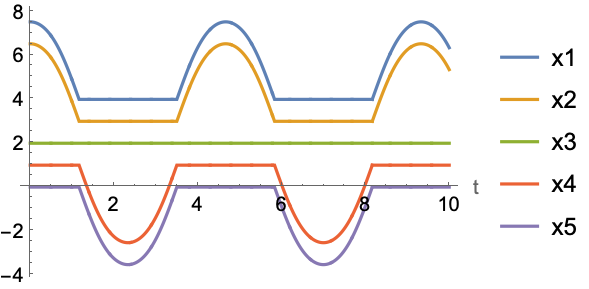

Simulate for 10 seconds and plot the first stored plot in the model:

In[3]:=3

✖

https://wolfram.com/xid/0ev7ehu1-fz9neg

Out[3]=3

Clean up by deleting the new file and model:

In[4]:=4

✖

https://wolfram.com/xid/0ev7ehu1-pv7qdp

Export Options (1)

"IncludedLibraries" (1)

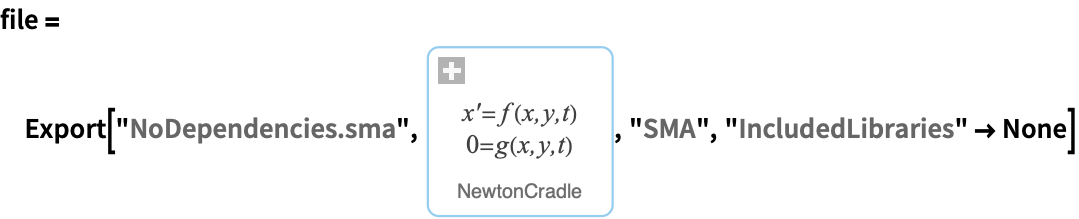

Export a model without any dependencies:

In[1]:=1

✖

https://wolfram.com/xid/0ev7ehu1-2ubor8

Out[1]=1

The resulting file size is typically small:

In[2]:=2

✖

https://wolfram.com/xid/0ev7ehu1-un0h5x

Out[2]=2

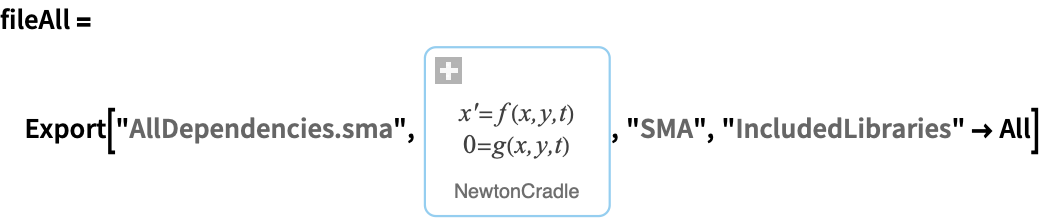

Including all dependencies, including system libraries, typically results in a large file:

In[3]:=3

✖

https://wolfram.com/xid/0ev7ehu1-7f3dbp

Out[3]=3

In[4]:=4

✖

https://wolfram.com/xid/0ev7ehu1-51mljh

Out[4]=4

In[5]:=5

✖

https://wolfram.com/xid/0ev7ehu1-cswq3h
