OpenUnityScene

OpenUnityScene["path"]

open the Unity scene at the specified path.

Details

OpenUnityScene[expr] returns the UnityScene it opened, and $Failed if it cannot be created.
OpenUnityScene is Listable.
The following option can be given:
Method Automatic how to open the scene
Possible settings for Method include "Single" and "Additive", with the default being Automatic.

Examples

open allclose all

Basic Examples (2)Summary of the most common use cases

Load the UnityLink:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-buodkt

Open a Unity project:

In[2]:=2

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-c28u0u

Open a scene in the current Unity project:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-rh4pcp

Out[1]=1

Open a scene at a given path relative to the Assets directory:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-o1f5xf

Out[1]=1

Open a scene without closing any currently open scenes:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-e041wb

Out[1]=1

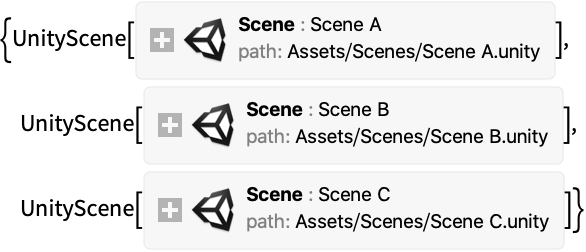

OpenUnityScene is Listable:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-odkw59

Out[1]=1

Options (2)Common values & functionality for each option

Method (2)

Use "Single" to close all open scenes before opening the specified scene:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-ho2k8v

Out[1]=1

The specified scene is made the active scene:

In[2]:=2

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-srtw5i

Out[2]=2

Use "Additive" to add the specified scene to the currently open scenes:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-s7edmd

Out[1]=1

The active scene does not change:

In[2]:=2

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-zt8lrm

Out[2]=2

Possible Issues (1)Common pitfalls and unexpected behavior

Opening a currently open scene will reload the scene from its file and discard any unsaved changes:

In[1]:=1

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-xe0s03

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-7kyb4x

Out[2]=2

Use SaveUnityScene to save any changes:

In[3]:=3

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-b8x6w9

Out[3]=3

In[4]:=4

✖

https://wolfram.com/xid/0mepildhgfecba6lw38lum-9b6b0b

Out[4]=4
