ChanVeseBinarize

ChanVeseBinarize[image]

finds a two-level segmentation of image by computing optimal contours around regions of consistent intensity in image.

ChanVeseBinarize[image,marker]

uses marker to create an initial contour.

ChanVeseBinarize[image,marker,{μ,ν,λ1,λ2}]

specify the ChanVese weights μ, ν, λ1, and λ2.

Details and Options

  • ChanVeseBinarize implements an iterative active contour method to achieve a two-level segmentation of image.
  • ChanVeseBinarize works with arbitrary 2D as well as 3D images.
  • The target region marker can be any of the following:
  • markerimagea marker image
    {pos1,pos2,}a list of positions
    fgcolorforeground color
    {{fgcolor,bgcolor}}foreground and background colors

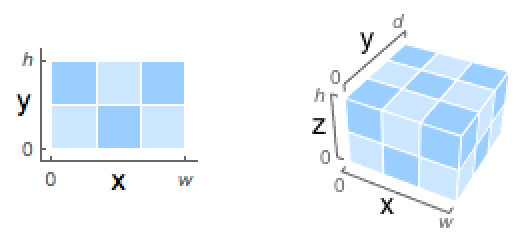

  • Positions posi are assumed to be in the standard image coordinate system.
  • ChanVeseBinarize uses the Euclidean distance between channel vectors to determine the similarity between pixels inside and outside of the contour.
  • The ChanVese segmentation of an image domain into the two segments and with contour minimizes the following functional of image :
  • F(c_1,c_2,Gamma)=mu Length[Gamma]+nu Area(D)+lambda_1int_DTemplateBox[{{f, -, {c, _, 1}}}, Abs]^2dxdy+lambda_2int_(Omega\D)TemplateBox[{{f, -, {c, _, 2}}}, Abs]^2dxdy
  • The functional is parametrized by the length penalty , the area penalty , and level penalties and .
  • The ChanVese algorithm partitions image such that the first segment will differ as little as possible from constant and the second segment will deviate as little as possible from constant . If constants and are not specified, one assumes c1=Mean[f] in , and c2=Mean[f] in .
  • The contour between the two resulting segments and will exhibit a short length for , and for the area of will tend to be small or for tend to be large.
  • ChanVeseBinarize iteratively minimizes a functional that is a weighted sum of the contour length, the enclosed area, and the deviation between the image and the two-level segmentation.
  • The maximum number of iteration steps is given by the MaxIterations option with default setting 100.

Examples

open allclose all

Basic Examples  (2)

Binary segmentation of a color image:

Segmentation of a 3D volume:

Scope  (8)

Specify the foreground color to be used for an initial marker:

Specify both foreground and background colors for creating an initial marker:

Use foreground edges as the marker image:

Control the area of the segmented region:

Increase the smoothness of the segmented region:

Increase the length penalty when segmenting noisy images:

Increase the penalty for the segment to select background pixels:

Increase the penalty for the segment to improve the segmentation of a satellite image:

Options  (1)

MaxIterations  (1)

By default, ChanVese segmentation iterates until convergence or until the maximum of 100 iterations:

Run only a single iteration:

Applications  (3)

Chroma key compositing:

Compose the separated foreground with a different background:

Find the precise contour of a coastline in a satellite image:

Improve text recognition of a noisy image:
