CommonestFilter

CommonestFilter[data,r]

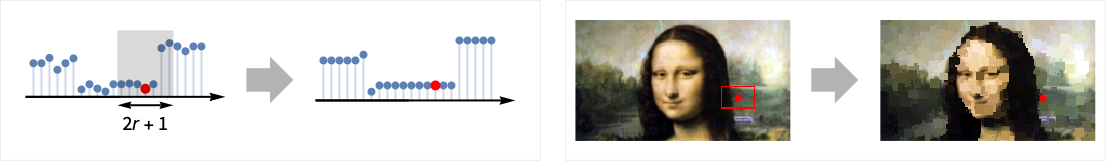

filters data by replacing every value with the most common value in its range-r neighborhood.

CommonestFilter[data,{r1,r2,…}]

uses ri for filtering the ^(th)dimension in data.

Details

  • CommonestFilter, also known as majority filter, is used to filter data by returning the commonest local value, where the extent of the effect is dependent on the value of r.
  • The function applied to each range-r neighborhood is Commonest.
  • If more than one commonest pixel exists and the center pixel is one of them, the center pixel is used. Otherwise, the pixel is replaced with a random commonest.
  • The data can be any of the following:
  • listarbitrary-rank numerical array
    tseriestemporal data such as TimeSeries, TemporalData, …
    imagearbitrary Image or Image3D object
    audioan Audio object
  • For multichannel images, CommonestFilter replaces each pixel by the commonest pixel vector in the neighborhood.

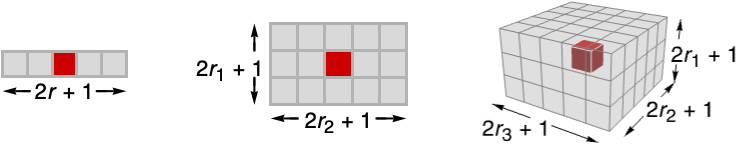

  • CommonestFilter[data,{r1,r2,…}] computes the commonest value in blocks centered on each sample.
  • CommonestFilter assumes the index coordinate system for lists and images.
  • At the data boundaries, CommonestFilter uses smaller neighborhoods.

Examples

open allclose all

Basic Examples  (3)

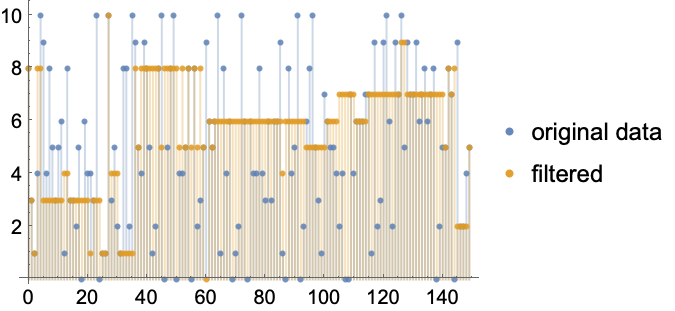

Apply a majority filter to a vector of numbers:

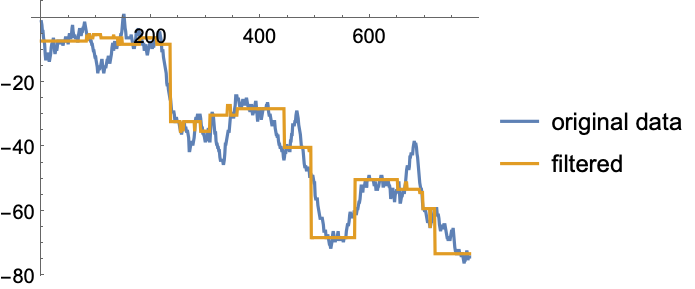

Filter a TimeSeries:

Commonest filtering of a color image:

Scope  (11)

Data  (7)

Commonest filtering applied to arbitrary expressions:

Majority filtering of a 2D array:

Filter a quantity array:

Filter an EventSeries:

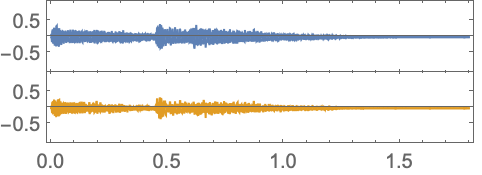

Filter an Audio signal:

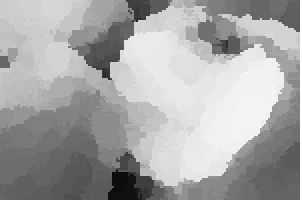

Filtering a 2D grayscale image:

Apply commonest filtering to a 3D volume:

Parameters  (4)

Specify one radius to be used in all directions:

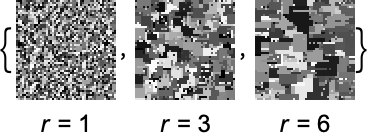

Increasing the radius will increase the regions of uniform value in images:

Majority filtering just in the first direction:

Second direction:

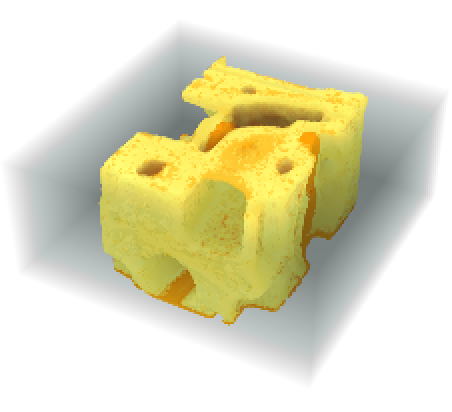

Commonest filtering of a 3D image in the vertical direction only:

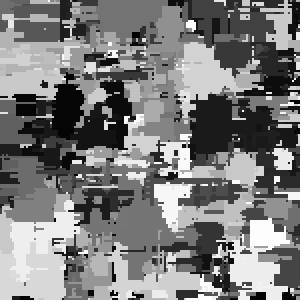

Filtering of the horizontal planes only:

Applications  (2)

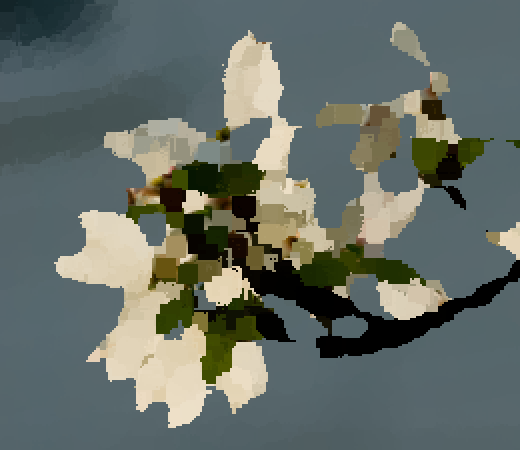

Replacing each pixel with the most common color in its neighborhood creates a posterization effect:

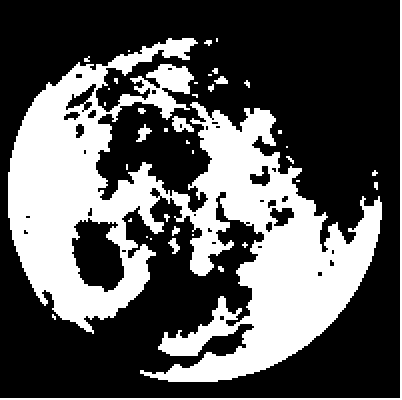

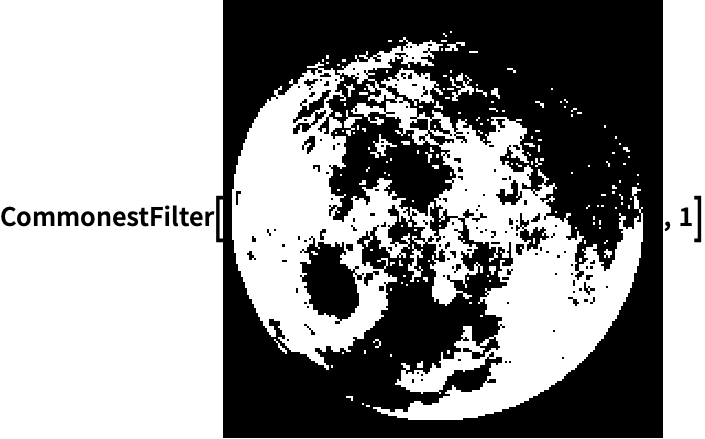

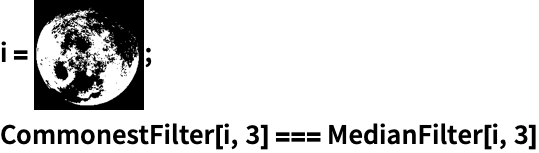

Majority filtering removes noise from a binary image:

Properties & Relations  (1)

Commonest filter gives the same result as MedianFilter on binary images:

Possible Issues  (1)

Majority filtering may not have the desired effect when applied to real-valued data, since all sample values may be unique:

Quantize the sample values to overcome this problem:

Neat Examples  (1)

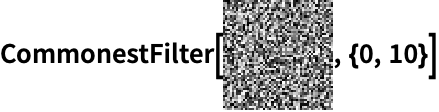

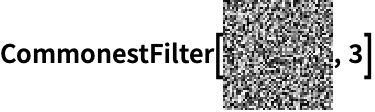

Commonest filtering applied to random noise:
