DataReversed

✖

is an option for ArrayPlot and related functions that specifies whether data should be plotted in reverse order.

Details

  • DataReversed->True specifies that the order of rows should be reversed, effectively turning the plot upside down.
  • DataReversed->{row,col} specifies whether each row and each column should be reversed.

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

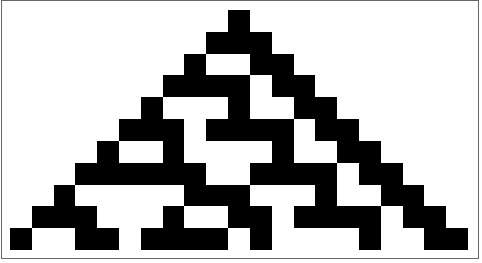

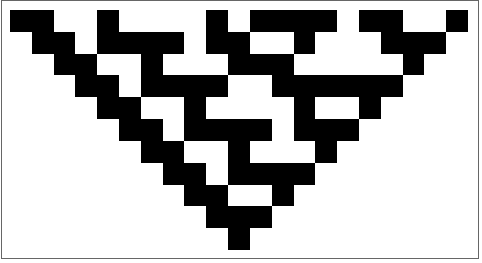

Reverse the order of rows, turning the image upside down:

In[1]:=1
✖
https://wolfram.com/xid/0b8dj92lq2-tsl
Out[1]=1

Scope  (1)Survey of the scope of standard use cases

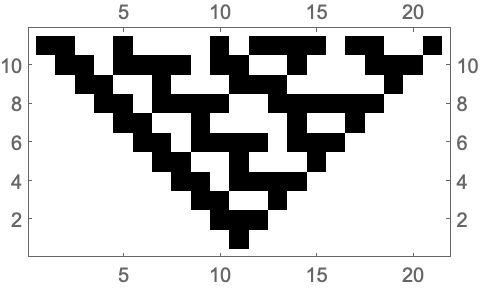

The frame ticks give the original row numbers:

In[1]:=1
✖
https://wolfram.com/xid/0b8dj92lq2-tkd
Out[1]=1

Generalizations & Extensions  (1)Generalized and extended use cases

Reverse in but not :

In[1]:=1
✖
https://wolfram.com/xid/0b8dj92lq2-dasuv5
Out[1]=1

Properties & Relations  (3)Properties of the function, and connections to other functions

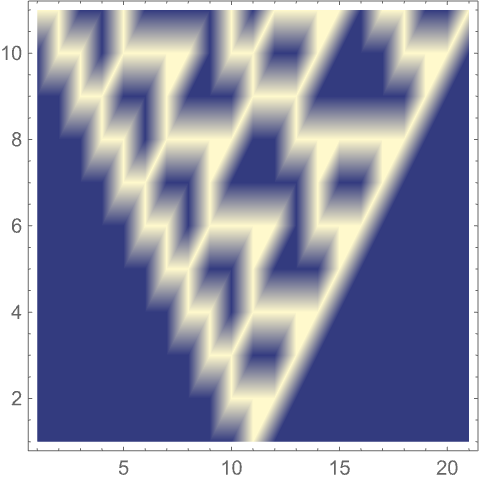

With DataReversed->True, ArrayPlot gives the same orientation as ListDensityPlot:

In[1]:=1
✖
https://wolfram.com/xid/0b8dj92lq2-xry
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0b8dj92lq2-tcj
Out[2]=2

DataReversed->True is equivalent to reversing the input to ArrayPlot:

In[1]:=1
✖
https://wolfram.com/xid/0b8dj92lq2-l5ncwn
Out[1]=1

DataReversed->{False,True} effectively maps Reverse onto each row:

In[1]:=1
✖
https://wolfram.com/xid/0b8dj92lq2-1r95j9
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0b8dj92lq2-yon6b9
Out[2]=2
