DiamondMatrix
✖
DiamondMatrix

✖

gives a matrix whose elements are 1 in a diamond-shaped region that extends r index positions to each side, and are 0 otherwise.

✖

gives a w×w matrix containing a diamond-shaped region of 1s.

✖
DiamondMatrix[{r1,r2,…},…]

yields an array whose elements are 1 in a diamond-shaped region that extends ri index positions in the i^(th) direction.

Details

  • The diamond of 1s is always at the center of the region.
  • In DiamondMatrix[r] or DiamondMatrix[{r1,…}] the matrix or array is sized so as to just include all nonzero elements.
  • The region of 1s is taken to be the best discrete approximation to a diamond-shaped region possible given the size of the matrix.
  • DiamondMatrix[All,w] gives a w×w matrix containing a diamond shape that is as large as possible.
  • DiamondMatrix[…,{w1,w2,…}] gives a w1×w2×… array.
  • DiamondMatrix[{r1,…,rn},w] gives a w×…×w array.
  • DiamondMatrix[All,{w1,…,wn}] gives a w1×…×wn array containing a diamond-shaped region that is as large as possible.
  • The parameter r need not be an integer; in general elements are 1 if their Manhattan distance from the center is not more than .
  • For integer r, DiamondMatrix[r] yields a matrix.

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

This computes and plots a square diamond-shaped matrix of radius 10:

In[1]:=1
✖
https://wolfram.com/xid/0i1ovah66-q7kw9q
Out[1]=1

Scope  (5)Survey of the scope of standard use cases

Create a rectangular diamond-shaped matrix:

In[3]:=3
✖
https://wolfram.com/xid/0i1ovah66-qpi35b
Out[3]=3

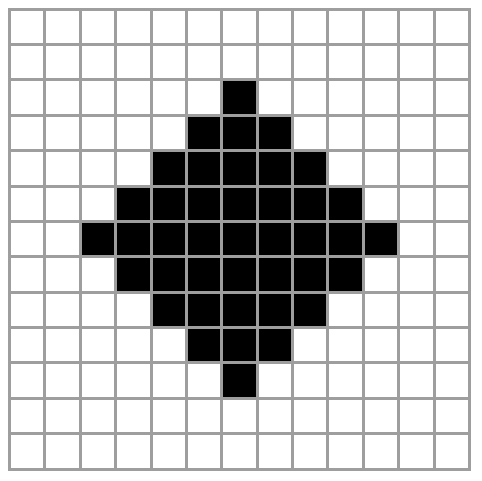

Put a diamond inside a bigger matrix:

In[1]:=1
✖
https://wolfram.com/xid/0i1ovah66-xjedjo
Out[1]=1

Extend the diamond to the boundaries of the matrix:

In[1]:=1
✖
https://wolfram.com/xid/0i1ovah66-qazkdu
Out[1]=1

Automatically choose an odd width to just fit the diamond:

In[1]:=1
✖
https://wolfram.com/xid/0i1ovah66-145bbn
Out[1]=1

Extend the diamond to the given width, and automatically choose the height:

In[1]:=1
✖
https://wolfram.com/xid/0i1ovah66-fultpq
Out[1]=1
