DotDashed
✖
DotDashed

✖

is a graphics directive specifying that lines that follow should be drawn dot-dashed.

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

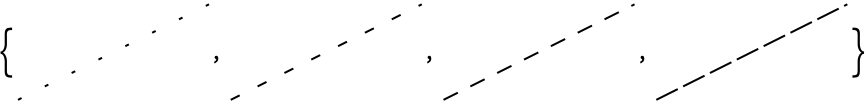

Dot-dashed lines:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-i9145p
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0h2ncwfebn-igvxvy
Out[2]=2

Dot-dashed frame:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-fwyz3k
Out[1]=1

Scope  (2)Survey of the scope of standard use cases

Use EdgeForm to draw dot-dashed edges:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-hbctzx
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0h2ncwfebn-pec6vw
Out[2]=2

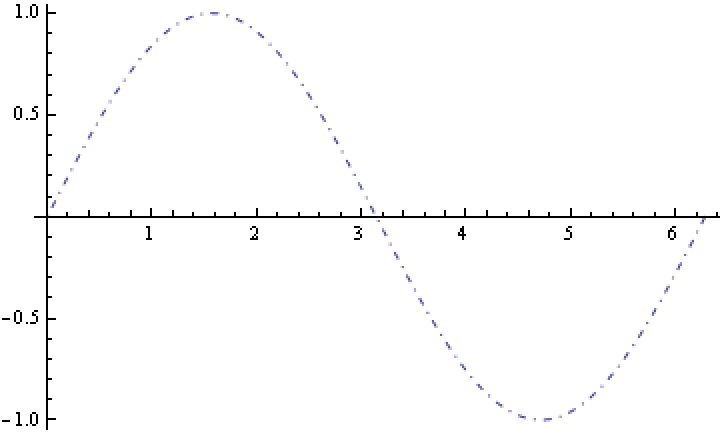

A plot with a dot-dashed line:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-fnw3ym
Out[1]=1

Properties & Relations  (3)Properties of the function, and connections to other functions

DotDashed is equivalent to Dashing[{0,Small,Small,Small}]:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-e7fs5h
Out[1]=1

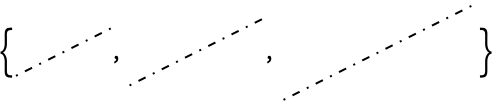

Dashing and AbsoluteDashing provide richer ways to specify dashing:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-ib9s57
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0h2ncwfebn-fageak
Out[2]=2

DotDashed is absolute dashing, independent of the image size:

In[1]:=1
✖
https://wolfram.com/xid/0h2ncwfebn-i778zx
Out[1]=1
