EdgeStyle

✖

is an option and annotation for Graph and related functions that specifies what style to use for edges.

Details

  • The following option settings can be used:
  • Automaticuse automatic setting for style
    styleuse style for all edges
    {vivj->styleij,…}use styleij for edge vivj
    {pattistylei,…}use stylei for edges matching the pattern patti
  • Edges with explicit edge style vw->style are taken to use the automatic style.
  • The wrapper Style[vw,style] is equivalent to Annotation[vw,EdgeStyle->style] and can be used when creating graphs in functions such as Graph etc.
  • EdgeStyle can apply to lines and faces.
  • To specify multiple style directives use Directive[style1,style2,…].
  • Style and other specifications are effectively applied in the order EdgeStyle, Style and other wrappers, and EdgeShapeFunction, with later specifications overriding earlier ones.

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

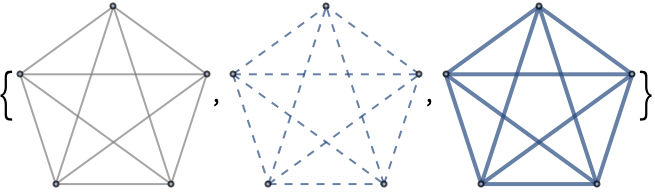

Style all edges:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-dx7dg5
Out[1]=1

Style individual edges:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-ffvp7v
Out[1]=1

Scope  (9)Survey of the scope of standard use cases

EdgeStyle can be used for general graphs:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-w9j3f
Out[1]=1

Matrix graphs:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-fi80b1
Out[1]=1

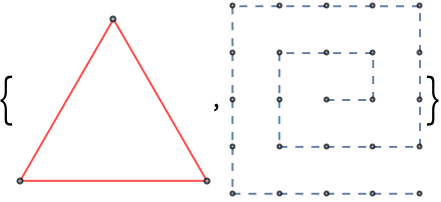

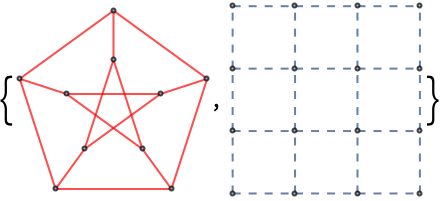

Special graphs:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-xwdja
Out[1]=1

Random graphs:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-kjdxrt
Out[1]=1

Use EdgeStyle in an Annotation wrapper:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-f4jo2s
Out[1]=1

Alternatively, use a Style wrapper:

In[2]:=2
✖
https://wolfram.com/xid/0bdphtoda-nmuw
Out[2]=2

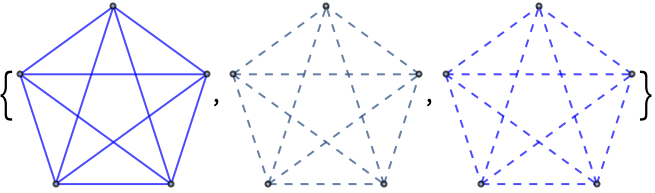

Use Directive to set multiple style directives:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-o978uk
Out[1]=1

EdgeStyle works with patterns:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-64pi0q
Out[1]=1

EdgeStyle can be combined with EdgeShapeFunction:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-byw1p6
In[2]:=2
✖
https://wolfram.com/xid/0bdphtoda-gt52v9
Out[2]=2

EdgeShapeFunction has higher priority than EdgeStyle:

In[3]:=3
✖
https://wolfram.com/xid/0bdphtoda-f7ohq3
In[4]:=4
✖
https://wolfram.com/xid/0bdphtoda-cfn5oz
Out[4]=4

EdgeStyle can be combined with BaseStyle:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-mwzwu
Out[1]=1

EdgeStyle has higher priority than BaseStyle:

In[2]:=2
✖
https://wolfram.com/xid/0bdphtoda-ovk4z6
Out[2]=2

Possible Issues  (1)Common pitfalls and unexpected behavior

Using Rule to indicate edges does not work:

In[1]:=1
✖
https://wolfram.com/xid/0bdphtoda-crp5pc
Out[1]=1

Use parentheses to get correct parsing:

In[2]:=2
✖
https://wolfram.com/xid/0bdphtoda-bue20b
In[3]:=3
✖
https://wolfram.com/xid/0bdphtoda-m04fnn
In[4]:=4
✖
https://wolfram.com/xid/0bdphtoda-mh35n
Out[4]=4
