EdgeValueRange

EdgeValueRange

is an option for GeoGraphValuePlot that specifies the range of edge values to include in a plot.

Details

  • The following settings can be given for EdgeValueRange:
  • Automaticautomatically determine the edges to include
    Allinclude all edges
    {min,max}include edges whose weights are between min and max
  • With the Automatic setting, edges with small weights are not shown.
  • The appearance of clipped vectors depends on ClippingStyle.

Examples

Basic Examples  (2)

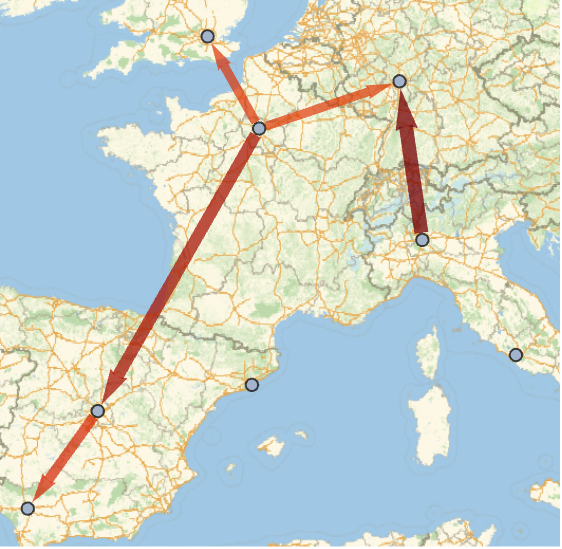

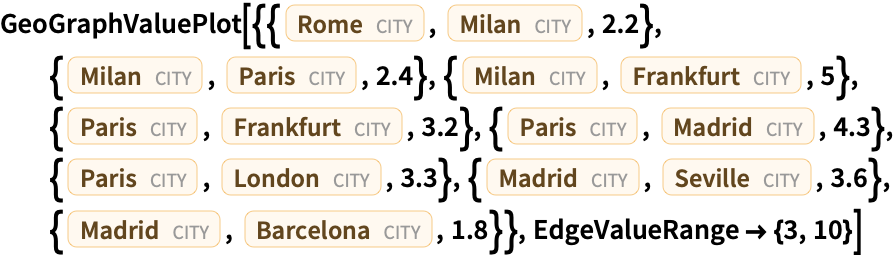

Show only edges whose values are between 3 and 10:

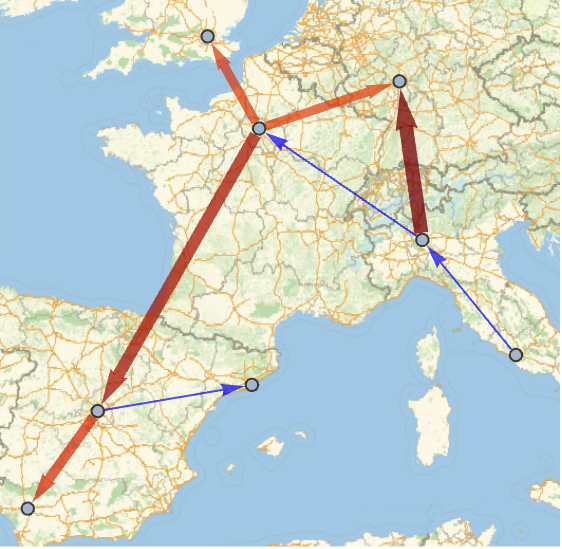

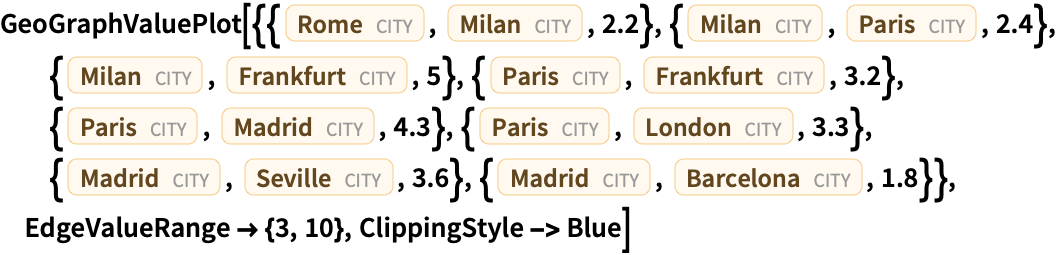

Show edges outside of the range in blue:
