FindPostmanTour

FindPostmanTour[g]

finds a Chinese postman tour in the graph g of minimal length.

FindPostmanTour[g,k]

finds at most k Chinese postman tours.

FindPostmanTour[{vw,…},…]

uses rules vw to specify the graph g.

Details

  • A Chinese postman tour is a tour that traverses each edge at least once.
  • FindPostmanTour returns a list of edges consisting of Chinese postman tours.
  • FindPostmanTour returns the list {} if no Chinese postman tours exist.
  • FindPostmanTour[g] is equivalent to FindPostmanTour[g,1].
  • FindPostmanTour works with undirected graphs, directed graphs, weighted graphs, and multigraphs.

Examples

open allclose all

Basic Examples  (2)

Find a Chinese postman tour:

Highlight the tour:

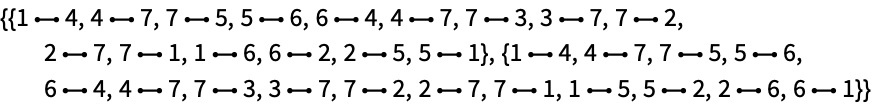

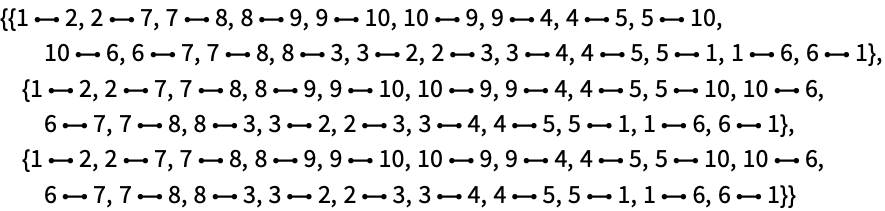

Find several Chinese postman tours:

Scope  (8)

FindPostmanTour works with undirected graphs:

Directed graphs:

Weighted graphs:

Multigraphs:

Find several Chinese postman tours:

Use rules to specify the graph:

FindPostmanTour returns an empty result for a graph with no Chinese postman tours:

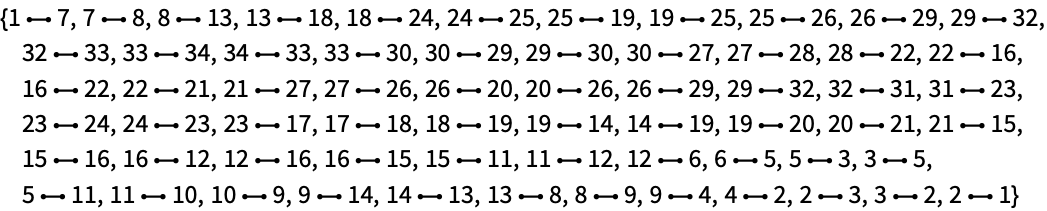

FindPostmanTour works with large graphs:

Applications  (3)

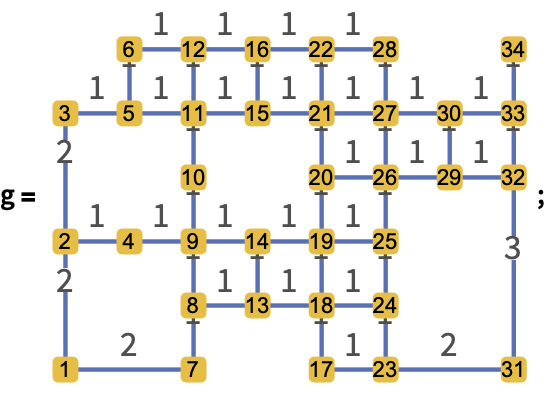

Find a shortest route that a newspaper carrier can use to distribute newspapers in a neighborhood:

The total distance:

Find the most efficient way for a letter carrier to deliver letters, knowing the time it takes to deliver mail on a street and the time it takes to walk a street without delivering mail (deadheading time):

A route that goes through all the streets and minimizes the total deadheading time:

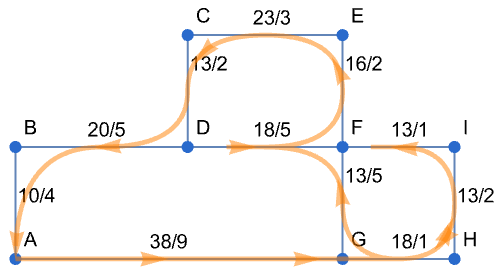

Show the route:

The total delivery time:

Testing combinations of actions in a finite-state machine:

Generate a line graph:

A length-2 switch cover:

Properties & Relations  (2)

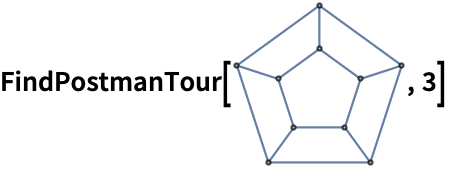

An Eulerian graph has a Chinese postman tour:

It is the same as its Eulerian cycle:

A connected graph has a Chinese postman tour:

Neat Examples  (1)

Find a Chinese postman tour:

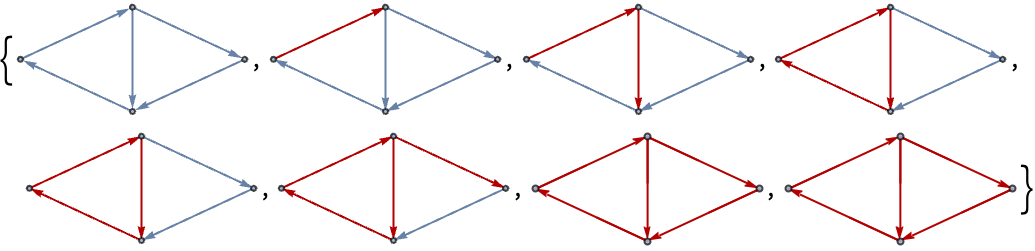

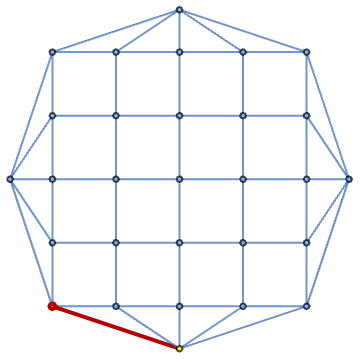

Dynamically highlight cycles:
