GraphAssortativity

✖
`GraphAssortativity`

✖

GraphAssortativity[g]

gives the assortativity coefficient of a graph g using vertex degrees.

✖

GraphAssortativity[g,"prop"]

gives the assortativity coefficient of the graph g using vertex property "prop".

✖

GraphAssortativity[g,{{v_{i 1},v_{i 2},…},…}]

gives the assortativity coefficient of the graph g with respect to the vertex partition {{v_{i 1},v_{i 2},…},…}.

✖

GraphAssortativity[g,{v₁,v₂,…}{x₁,x₂,…}]

gives the assortativity coefficient of the graph g using data {x₁,x₂,…} for vertices {v₁,v₂,…}.

✖

GraphAssortativity[{vw,…},…]

uses rules vw to specify the graph g.

Details and Options

For a graph with edges and adjacency matrix entries , the assortativity coefficient is given by , where is the out-degree for the vertex v_i and is 1 if there is an edge from v_i to v_j and 0 otherwise.
For quantitative data where x₁,x₂,… are used, is taken to be x_ix_j.
For categorical data where x₁,x₂,… are used, is taken to be 1 if x_i and x_j are equal and 0 otherwise.
In GraphAssortativity[g], x_i is taken to be the vertex out-degree for the vertex v_i.
In GraphAssortativity[g,"prop"], x_i is taken to be AnnotationValue[{g,v_i},"prop"] for the vertex v_i.
In GraphAssortativity[g,{{v_{i 1},v_{i 2},…},…}], vertices in a subset {v_{i 1},v_{i 2},…} have the same categorical data x_{i 1}=x_{i 2}=….
GraphAssortativity[g,Automatic->{x₁,x₂,…}] takes the vertex list to be VertexList[g].
The option "DataType"->type can be used to specify the type for the data x₁,x₂,…. Possible settings are "Quantitative" and "Categorical".
The option "Normalized"->False can be used to compute the assortativity modularity.
For a graph with edges and adjacency matrix entries , the assortativity modularity is given by , where is the out-degree for the vertex v_i.
GraphAssortativity works with undirected graphs, directed graphs, weighted graphs, multigraphs, and mixed graphs.

Examples

open allclose all

Basic Examples (2)Summary of the most common use cases

Compute the assortativity coefficient of the Zachary karate club network:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-lpethk

Out[1]=1

Distribution of the assortativity coefficient of uniform random graphs:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-ztkee

Out[1]=1

Scope (12)Survey of the scope of standard use cases

GraphAssortativity works with undirected graphs:

In[2]:=2

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-tzs5an

Out[2]=2

Directed graphs:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-d7rrmc

Out[1]=1

Weighted graphs:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-gcbs2g

Out[1]=1

Multigraphs:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-ffb0ew

Out[1]=1

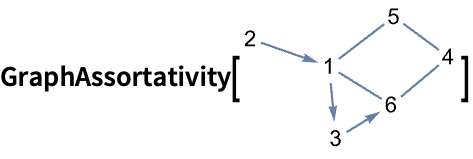

Mixed graphs:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-ffsn8

Out[1]=1

Use rules to specify the graph:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-bndh30

Out[1]=1

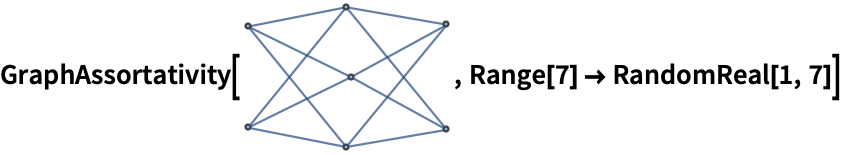

Compute the assortativity coefficient using vertex property data:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-msp35

Out[1]=1

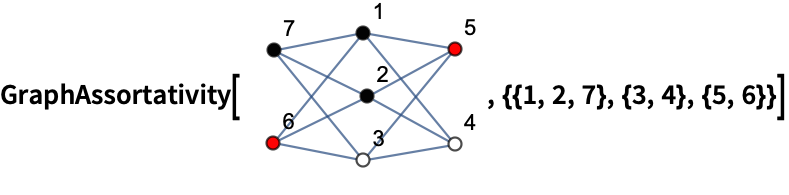

A vertex partition:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-gfd9b1

Out[1]=1

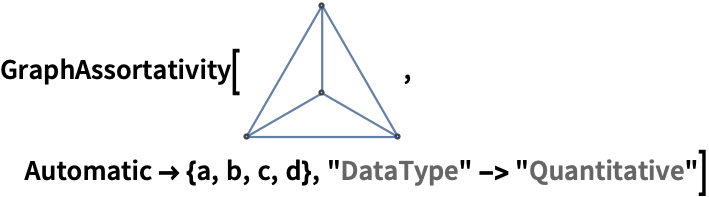

A specified dataset:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-dn3zoj

Out[1]=1

A partition or assignment of a subset of VertexList:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-8bjvs

Out[1]=1

GraphAssortativity works with symbolic expressions:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-nwyp8y

Out[1]=1

GraphAssortativity works with large graphs:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-gw1usj

In[2]:=2

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-cuju06

Out[2]=2

In[3]:=3

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-gfsfsb

Out[3]=3

Applications (3)Sample problems that can be solved with this function

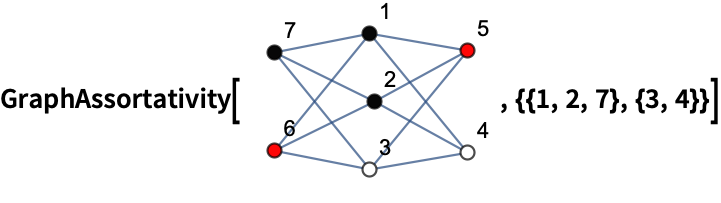

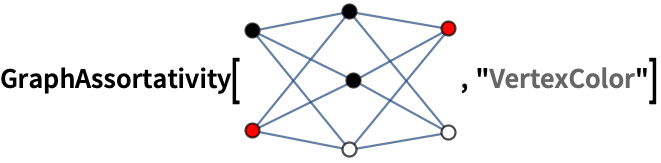

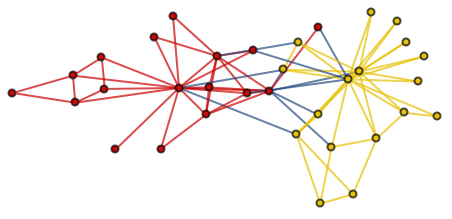

Compare the assortativity coefficient of vertex partitions by vertex color:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-lt2pno

In[2]:=2

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-j9ko80

Out[2]=2

Disassortativity by number of friends in a friendship network:

In[1]:=1

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-ntpxnb

In[2]:=2

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-echrlr

Out[2]=2

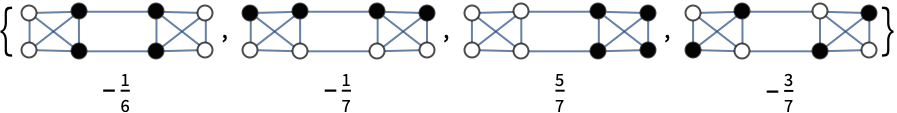

A partition of the network shows assortative mixing:

In[3]:=3

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-lvmgei

In[4]:=4

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-i1l4m5

Out[4]=4

In[5]:=5

✖

https://wolfram.com/xid/0bzranqs7bdmc3ysq-dwtlyz

Out[5]=5

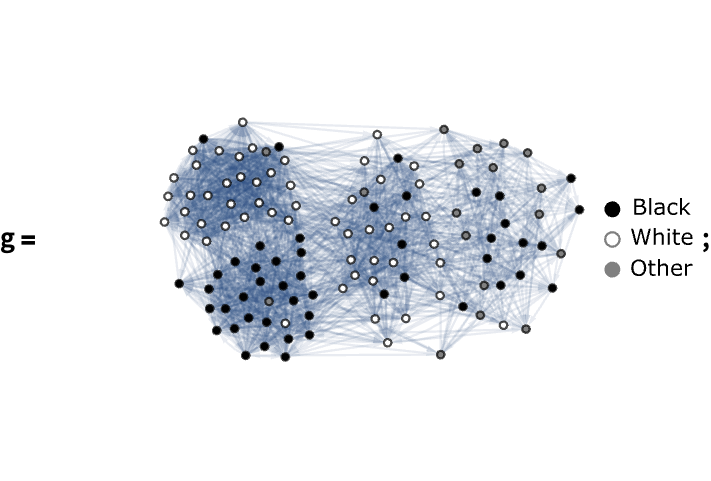

A friendship network at a high school, with vertices color coded by race. Analyze the preference for students to associate with others who are similar:

In[1]:=1
