GraphPower

GraphPower[g,n]

gives the graph-n^(th) power of the graph g.

GraphPower[{vw,…},…]

uses rules vw to specify the graph g.

Details and Options

  • The graph-n^(th) power has the same vertices, and vertex vi is adjacent to vertex vj only if there is a path of at most length n from vi to vj.
  • GraphPower works with undirected graphs, directed graphs, multigraphs, and mixed graphs.

Examples

open allclose all

Basic Examples  (1)

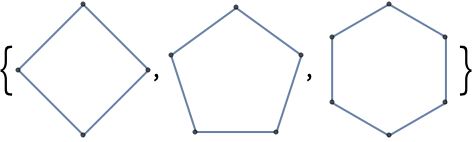

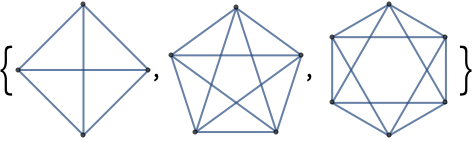

Graph power of cycle graphs:

Scope  (5)

GraphPower works with undirected graphs:

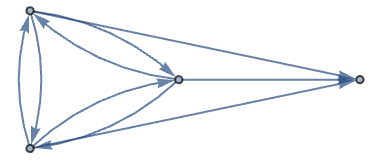

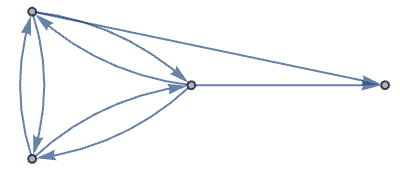

Directed graphs:

Multigraphs:

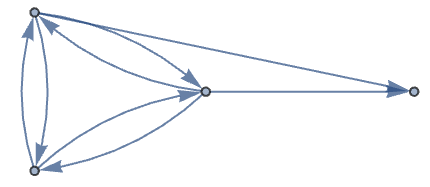

Mixed graphs:

Use rules to specify the graph:

Properties & Relations  (2)

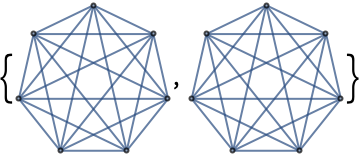

Raising a connected graph to the power of its graph diameter gives a complete graph:

Graph-^(th) powers can be obtained by the sum of the first powers of the adjacency matrix:
