ImageMultiply

✖
ImageMultiply[image,x]

multiplies each channel value in image by a factor x.

✖
ImageMultiply[image1,image2]

gives an image in which each pixel is the product of the corresponding pixels in image1 and image2.

✖
ImageMultiply[image,expr1,expr2,…]

multiplies all expri with image, where each expri can be either an image, a number, or a color value.

Details

  • The image returned by ImageMultiply[image,…] has the same dimensions as image.
  • In ImageMultiply[image,x], x can be a number normally in the range 0 to 1, a color, or a list of color channel values.
  • ImageMultiply[image,x] typically gives an image with the same underlying data type as image, clipping or truncating values if necessary. »
  • If the image dimensions are different, ImageMultiply[image1,image2] multiplies image2 into the center of image1.
  • If image1 or image2 is a single-channel image, its values are multiplied by the values in each channel of the other image in ImageMultiply[image1,image2].
  • If image1 and image2 are both multichannel images, the values in each channel are multiplied separately.
  • ImageMultiply[image1,image2] gives an image with the largest type of either image1 or image2, clipping or truncating values if necessary.
  • For binary images, ImageMultiply effectively finds the logical AND of pixel values.
  • ImageMultiply[image,expr1,expr2,…] folds ImageMultiply on the list of arguments.
  • ImageMultiply[{image,expr1,expr2,…}] is equivalent to ImageMultiply[image,expr1,expr2,…].
  • ImageMultiply works with Image3D objects.

Examples

open allclose all

Basic Examples  (4)Summary of the most common use cases

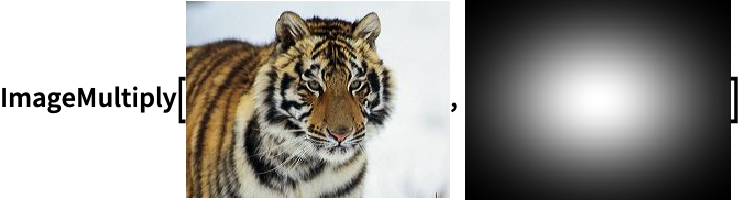

Mask an image by multiplying it with a grayscale image:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-bom9vh
Out[1]=1

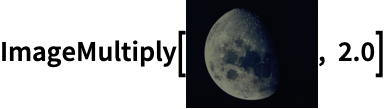

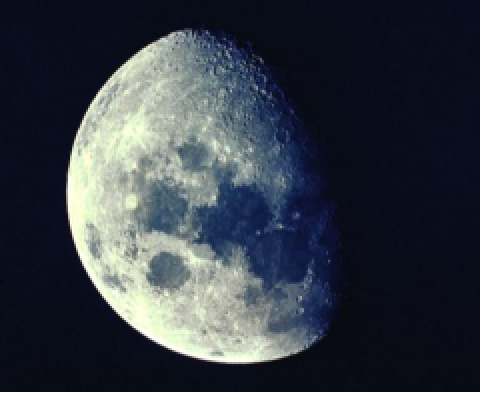

Brighten an RGB image by multiplying all pixels with a constant factor:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-7yxo5q
Out[1]=1

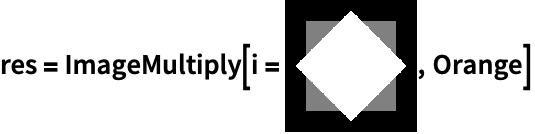

Logical AND of two binary images:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-2iiroe
Out[1]=1

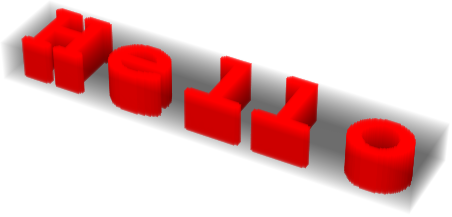

Colorize a binary 3D image:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-eyx75c
Out[1]=1

Applications  (5)Sample problems that can be solved with this function

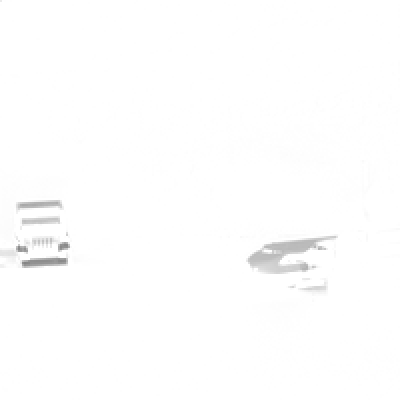

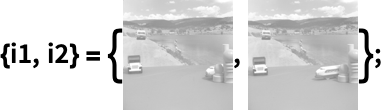

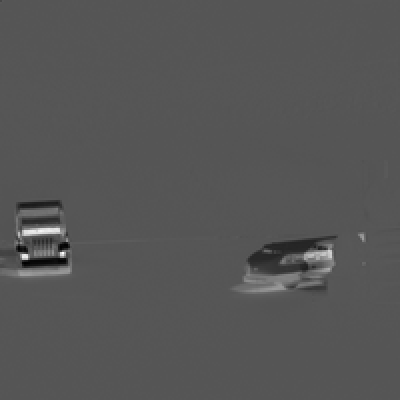

Create a division operator, typically used for detecting motion:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-vmnbaf
In[2]:=2
✖
https://wolfram.com/xid/0b8dfyy43o-v037fq
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0b8dfyy43o-wvq9hp
Out[3]=3

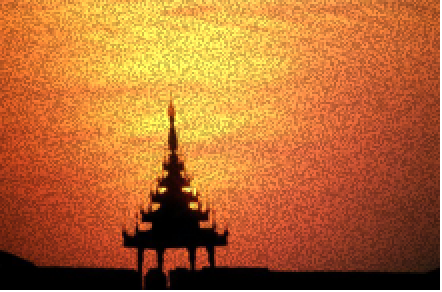

Uniform multiplicative noise:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-h7tdlv
Out[1]=1

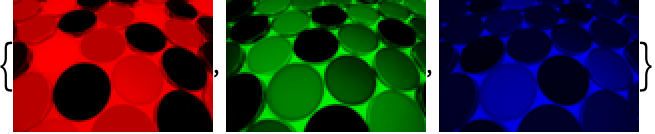

Colorize channels of an image:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-yy8kzs
Out[1]=1

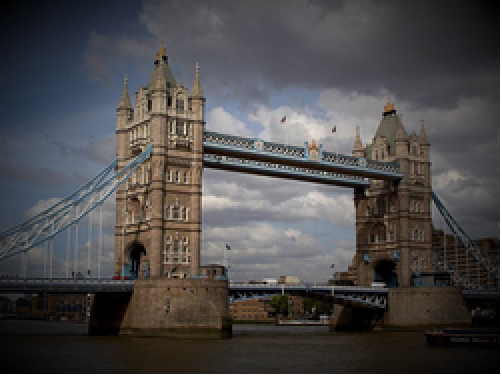

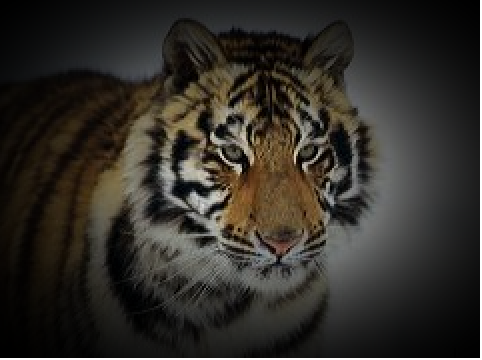

Create a vignette effect:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-bz0nfu
In[2]:=2
✖
https://wolfram.com/xid/0b8dfyy43o-ynxwkz
Out[2]=2

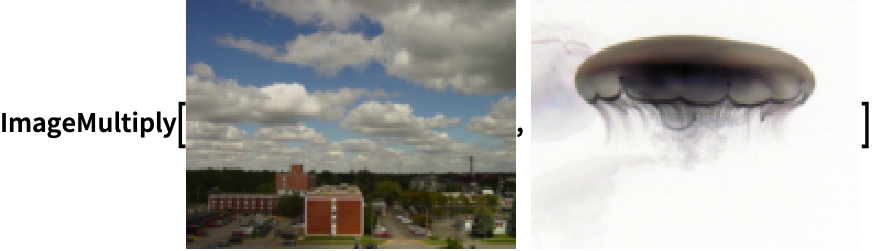

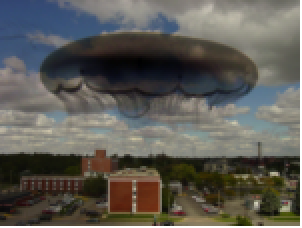

Multiply a color and a grayscale image to create a composition:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-murxiy
Out[1]=1

Properties & Relations  (1)Properties of the function, and connections to other functions

When multiplying images and colors, typically the image data type is preserved:

In[1]:=1
✖
https://wolfram.com/xid/0b8dfyy43o-jxwu1b
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0b8dfyy43o-zbgx4k
Out[2]=2
