ListZTransform
✖
ListZTransform

✖
ListZTransform[list,z]

gives the Z transform of list as a function of z.

✖
ListZTransform[list,z,k]

places the first element of list at integer time k on the infinite time axis.

✖
ListZTransform[list,{z1,z2,…},{k1,k2,…}]

gives the multidimensional Z transform.

Details

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

Z transform of a constant vector:

In[1]:=1
✖
https://wolfram.com/xid/0en0n3gj2-hxcway
Out[1]=1

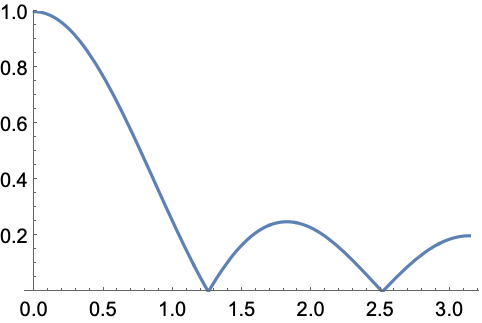

Plot the Z transform on the unit circle:

In[2]:=2
✖
https://wolfram.com/xid/0en0n3gj2-0fsrfv
Out[2]=2

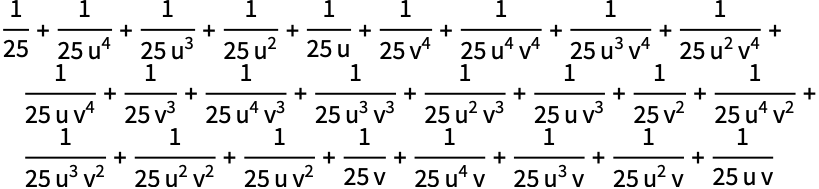

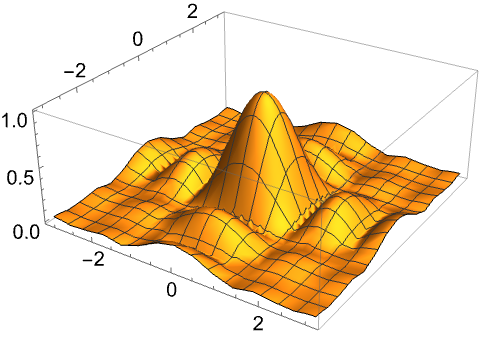

Two-dimensional Z transform:

In[1]:=1
✖
https://wolfram.com/xid/0en0n3gj2-d1f7mr
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0en0n3gj2-j1c4z9
Out[2]=2

Scope  (1)Survey of the scope of standard use cases

Z transform of a symbolic sequence:

In[1]:=1
✖
https://wolfram.com/xid/0en0n3gj2-09w14
Out[1]=1

Specify an offset:

In[2]:=2
✖
https://wolfram.com/xid/0en0n3gj2-rr3z79
Out[2]=2

Properties & Relations  (3)Properties of the function, and connections to other functions

ListZTransform of a list of numbers is equal to the ZTransform of a sum of shifted unit samples:

In[1]:=1
✖
https://wolfram.com/xid/0en0n3gj2-8b6of
In[2]:=2
✖
https://wolfram.com/xid/0en0n3gj2-dekd7k
Out[2]=2

Inverse of the ListZTransform:

In[1]:=1
✖
https://wolfram.com/xid/0en0n3gj2-5b8f8c
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0en0n3gj2-83e38
Out[2]=2

ListZTransform evaluated on a unit circle gives the Fourier transform of the list:

In[1]:=1
✖
https://wolfram.com/xid/0en0n3gj2-os227
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0en0n3gj2-bss4q6
Out[2]=2
