MinIntervalSize

✖
`MinIntervalSize`

Unsupported in Cloud

✖

MinIntervalSize

is an option for IntervalSlider that specifies the minimum size of the interval during interactive editing.

Details

The default setting of MinIntervalSize->0 allows the two IntervalSlider thumbs to take on the same value.
If a step size is given, any positive MinIntervalSize will effectively be interpreted as a multiple of the step size.
If MinIntervalSize is set to a value larger than the domain of the slider, then no interactive editing will be allowed.

Examples

open allclose all

Basic Examples (2)Summary of the most common use cases

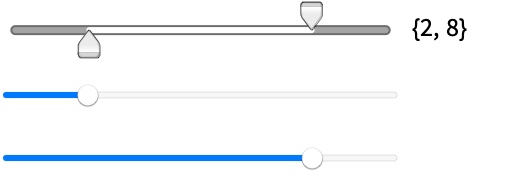

By default, IntervalSlider allows the two thumbs to take on the same value:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-5k845c

Out[1]=1

If the two thumbs must have different values, set MinIntervalSize to a positive number:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-hkk75y

Out[1]=1

Scope (4)Survey of the scope of standard use cases

Any positive value will effectively be interpreted as a multiple of the step size:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-k7mks0

Out[1]=1

MinIntervalSize is often used with a Method setting, to keep the interval oriented:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-hc133h

Out[1]=1

MinIntervalSize does not change the given initial settings:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-htwwsz

Out[1]=1

MinIntervalSize does not impose limitations on programmatic settings of the interval value:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-z3n9t

Out[1]=1

Possible Issues (2)Common pitfalls and unexpected behavior

Setting MinIntervalSize larger than the overall slider size will not allow interactive editing:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-rl7t8u

Out[1]=1

MinIntervalSize only affects interactions with the IntervalSlider control; other controls are not affected:

In[1]:=1

✖

https://wolfram.com/xid/0dcz2g51r9ca-9ssl8

Out[1]=1
