RegionCongruent

RegionCongruent[reg1,reg2]

tests whether the regions reg1 and reg2 are congruent.

Details and Options

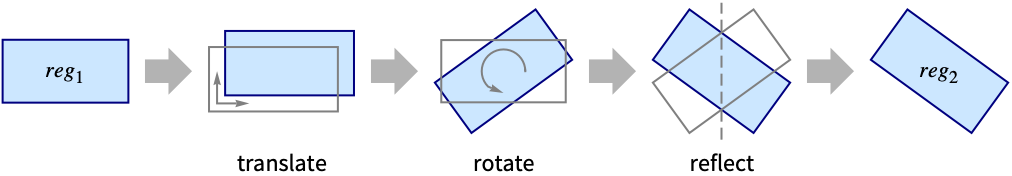

  • The regions reg1 and reg2 are congruent if reg2 can be obtained from reg1 by a combination of translations, rotations and reflections.
  • Typically used to test whether two regions have the same shape and size or whether one has the same shape and size as the mirror image of the other.
  • RegionCongruent[reg1,reg2] gives True if there is an affine transformation from reg1 to reg2 with matrix m satisfying TemplateBox[{m}, Transpose]=TemplateBox[{m}, Inverse].

Examples

open allclose all

Basic Examples  (1)

Test whether two regions are congruent:

Scope  (10)

Basic Uses  (2)

Test whether two regions are congruent:

Show two regions are not congruent:

Special Regions  (3)

RegionCongruent works in 1D:

Point:

Ball:

InfiniteLine:

RegionCongruent works in 2D:

Disk and Ball:

Polygon:

RegionCongruent works in 3D:

Formula Regions  (1)

Compare two formula regions:

Mesh Regions  (3)

Test whether two mesh regions are congruent:

Test whether two boundary mesh regions are congruent:

Test whether a mesh region and a boundary mesh region are congruent:

In :

Derived Regions  (1)

Test whether Boolean regions are congruent:

Applications  (3)

Two disks with the same radius are congruent:

Two rectangles with the same width and height are congruent:

Two polygons with the same vertex angles and edge lengths are congruent:

Properties & Relations  (3)

RegionSimilar returns True for congruent regions:

Regions that are similar are not always congruent:

Two equal regions are congruent:

FindRegionTransform gives an affine transformation m of the form TemplateBox[{m}, Transpose]=TemplateBox[{m}, Inverse] between two congruent regions:

The affine transformation:

Its affine matrix:
