SimplePolyhedronQ

SimplePolyhedronQ[poly]

gives True if the polyhedron poly is simple and False otherwise.

Details

• A polyhedron is simple if it has no voids and non-intersecting boundary faces.
• A simple polyhedron is topologically equivalent to a ball.

Examples

open allclose all

Basic Examples(2)

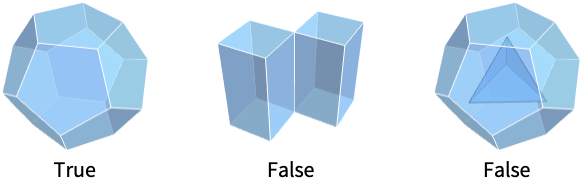

Test whether a polyhedron is simple:

SimplePolyhedronQ gives False for non-simple polyhedrons:

Scope(3)

SimplePolyhedronQ works on polyhedrons:

Cube:

Polyhedron with holes:

Polyhedrons with disconnected components:

Properties & Relations(3)

A convex polyhedron is simple:

The OuterPolyhedron of a simple polyhedron is simple:

Simple polyhedrons do not have holes:

The UniformPolyhedron is simple:

Possible Issues(1)

For nonconstant polyhedrons, SimplePolyhedronQ returns False:
