SolidData
✖
SolidData

For general access to the Wolfram Knowledgebase, use entities of type Solid instead of SolidData.

✖
SolidData[entity,property]

gives the value of the specified property for the solid entity.

✖
SolidData[{entity1,entity2,…},property]

gives a list of property values for the specified solid entities.

✖
SolidData[entity,property,annotation]

gives the specified annotation associated with the given property.

Details

  • SolidData[] gives a list of all solid entities.
  • SolidData["Properties"] gives a list of available properties.
  • SolidData["SampleEntities"] gives a list of sample entities.
  • The specified entity in SolidData can be an Entity, EntityClass, entity canonical name, or list thereof.
  • The specified property can be an EntityProperty, EntityPropertyClass, property canonical name, or list of properties.
  • Properties that do not apply or are not known in a particular case are indicated by Missing[…].
  • Properties include:
  • "AlternateNames"alternate names
    "AssociatedPeople"associated people
    "Boundary"boundary
    "BoundaryMeshRegion"boundary mesh representation
    "BoundarySurface"boundary surface
    "BoundingBox"corners of bounding box
    "Centroid"centroid
    "Circumcenter"circumcenter
    "Circumdiameter"circumdiameter
    "Circumradius"circumradius
    "Circumsphere"circumsphere
    "Classes"classes
    "Concave"concave
    "ConstantWidth"constant width
    "Convex"convex
    "ConvexityCoefficient"convexity coefficient
    "CrossSections"cross sections
    "FaceCount"face count
    "GeneralizedDiameter"generalized diameter
    "Graphics3D"3D graphics expression
    "Height"height
    "Hexahedron"hexahedron
    "Image"image
    "ImplicitRegion"implicit region
    "Incenter"incenter
    "Inequalities"inequalities
    "InertiaTensor"moment of inertia tensor
    "Inradius"inradius
    "Insphere"insphere
    "LateralSurfaceArea"lateral surface area
    "LineSegmentLengthCDF"CDF of lengths
    "LineSegmentLengthMean"mean line segment length
    "LineSegmentLengthPDF"PDF of lengths
    "MeanCylindricalRadius"mean cylindrical radius
    "MeanSphericalRadius"mean spherical radius
    "MeanSquareCylindricalRadius"mean square cylindrical radius
    "MeanSquareSphericalRadius"mean square spherical radius
    "MeshRegion"mesh representation
    "Name"name
    "Parallelepiped"parallelepiped
    "Parameters"parameters
    "ParametricRegion"parametric region
    "Polyhedron"polyhedron
    "RealWorldExamples"real-world examples
    "Region"region
    "RegularPolyhedron"regular polyhedron
    "RelatedWolframLanguageSymbols"related symbols in the Wolfram Language
    "SlantHeight"slant height
    "SolidOfRevolution"solid of revolution
    "SportObjects"sport objects of given shape
    "SurfaceArea"surface area
    "TetrahedronVolumeMean"mean volume of randomly picked tetrahedron
    "TriangleAreaCDF"CDF of randomly picked triangle area
    "TriangleAreaMean"mean area of randomly picked triangle
    "TriangleAreaPDF"PDF of randomly picked triangle area
    "VariableConstraints"variable constraints
    "VariableDescriptions"description of variables
    "Variables"variables
    "VertexCount"vertex count
    "Vertices"vertices
    "Volume"volume

Examples

open allclose all

Basic Examples  (10)Summary of the most common use cases

Use for entity discovery:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-o8t4yd
Out[1]=1

Return a list of sample solid entities:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-fvv9w9
Out[1]=1

Use to discover properties of a solid:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-kyl13z
Out[1]=1

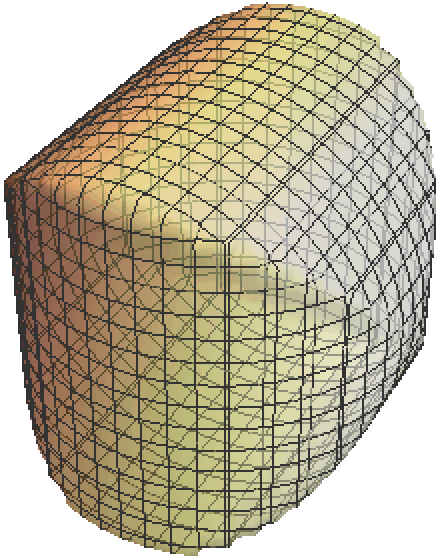

Display an image of a solid:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-4rk2d3
Out[1]=1

Find properties of a solid:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-eh0aiu
Out[1]=1

Return people associated with a solid:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-t3xwl7
Out[1]=1

Create a table of variables determining the shape of a solid, together with their descriptions:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-5dkey
Out[1]=1

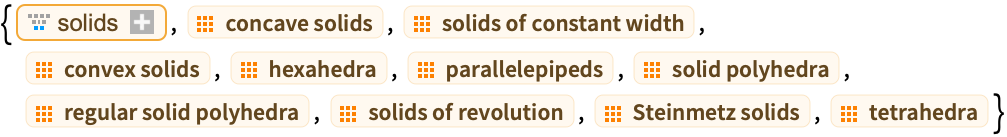

Find a list of sample entity classes of solids:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-j69kd
Out[1]=1

Find solids in a given class:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-hq4zsr
Out[1]=1

Give a geometric region corresponding to a cylindrical half-shell:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-ct73ql
Out[1]=1

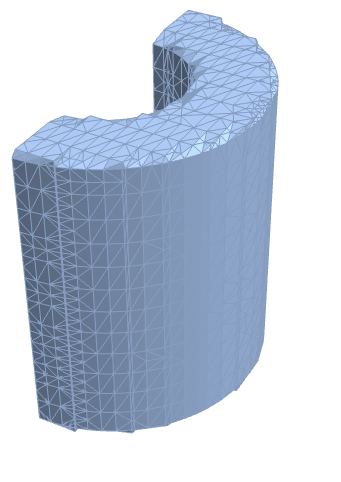

Discretize and visualize the region:

In[2]:=2
✖
https://wolfram.com/xid/0enwl29z2-nzis42
Out[2]=2

Give an implicit geometric region corresponding to a solid torus:

In[3]:=3
✖
https://wolfram.com/xid/0enwl29z2-9k4fop
Out[3]=3

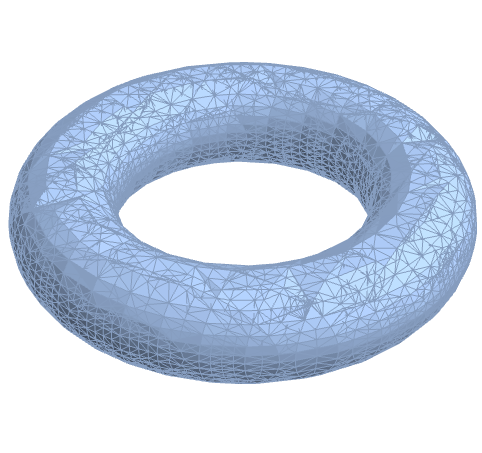

Discretize and visualize the implicit region:

In[4]:=4
✖
https://wolfram.com/xid/0enwl29z2-giansi
Out[4]=4

Properties & Relations  (2)Properties of the function, and connections to other functions

Using SolidData is equivalent to calling EntityValue on the corresponding entity and property:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-mpzww1
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0enwl29z2-2jj15p
Out[2]=2

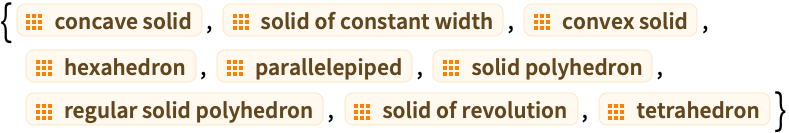

Evaluate SolidData with "Classes" argument:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-5b2e8w
Out[1]=1

The above is equivalent to evaluating EntityClassList of the entity type "Solid":

In[2]:=2
✖
https://wolfram.com/xid/0enwl29z2-lx5erw
Out[2]=2

Possible Issues  (1)Common pitfalls and unexpected behavior

Entity classes cannot be given as bare strings:

In[1]:=1
✖
https://wolfram.com/xid/0enwl29z2-ja63ev
Out[1]=1

Specifying an explicit EntityClass works as intended:

In[2]:=2
✖
https://wolfram.com/xid/0enwl29z2-4ulfxs
Out[2]=2

This is equivalent to calling EntityList on the EntityClass:

In[3]:=3
✖
https://wolfram.com/xid/0enwl29z2-rcn0sz
Out[3]=3
