Subgraph
✖
Subgraph

✖

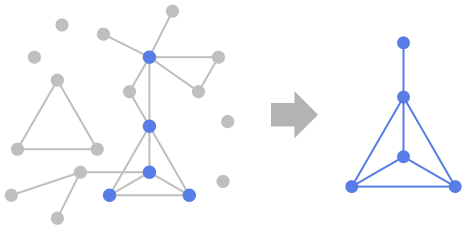

Subgraph[g,{v1,v2,…}]

gives the subgraph of the graph g generated by the vertices vi.

✖

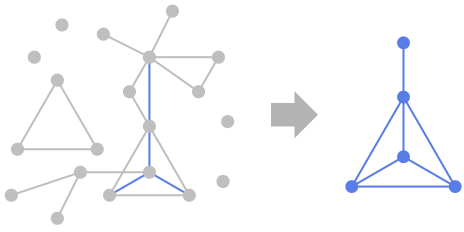

Subgraph[g,{e1,e2,…}]

gives the subgraph generated by the edges ej.

✖
Subgraph[g,patt]

gives the subgraph generated by the vertices and edges that match the pattern patt.

✖
Subgraph[{vw,…},…]

uses rules vw to specify the graph g.

Details and Options

  • The subgraph generated by the vertices v1,v2,… includes the vertices vi and all edges connecting them in the original graph g.
  • The subgraph generated by the edges e1,e2,… includes the edges ej and all edges connecting vertices vi of ej in the original graph g.
  • Subgraph works with undirected graphs, directed graphs, multigraphs, and mixed graphs.

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

Give a subgraph of a complete graph:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-mdlp
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-qh2pz
Out[2]=2

Highlight the subgraph within the main graph:

In[3]:=3
✖
https://wolfram.com/xid/0i1ivd2li-e1xwpu
Out[3]=3

Scope  (7)Survey of the scope of standard use cases

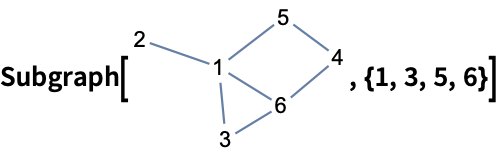

Subgraph works with undirected graphs:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-bve1eo
Out[1]=1

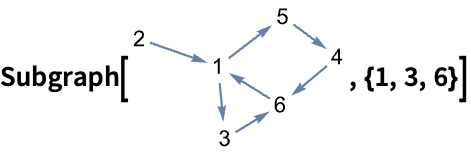

Directed graphs:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-hwrlf
Out[1]=1

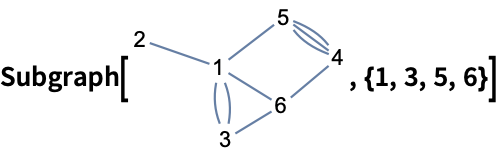

Multigraph:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-2v2f3n
Out[1]=1

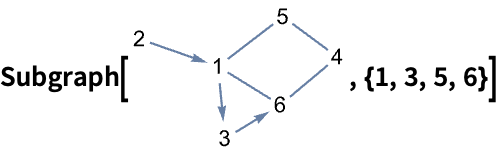

Mixed graph:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-rlhrjj
Out[1]=1

Use rules to specify the graph:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-bndh30
Out[1]=1

Use patterns to select subgraphs:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-fa2kiq
Out[1]=1

Find the subgraph with edges that are incident to 3:

In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-o3ool
Out[2]=2

Find the subgraph with vertices less than 6:

In[3]:=3
✖
https://wolfram.com/xid/0i1ivd2li-nnrbyh
Out[3]=3

Subgraph works with large graphs:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-m1lxo0
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-d43fon
Out[2]=2

Applications  (2)Sample problems that can be solved with this function

Select random subgraphs of size 5:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-bqfd1v
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-sme60
In[3]:=3
✖
https://wolfram.com/xid/0i1ivd2li-g2hnyv
Out[3]=3

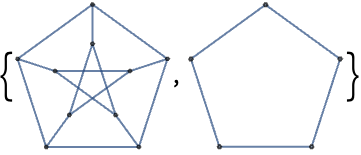

Find all the subgraphs of the graph g that are isomorphic to the graph h:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-d3gpe0
Out[1]=1

Enumerate all subsets of vertices that have the same number of vertices as h:

In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-en6144

Select the subgraphs that are isomorphic to h:

In[3]:=3
✖
https://wolfram.com/xid/0i1ivd2li-8f97t

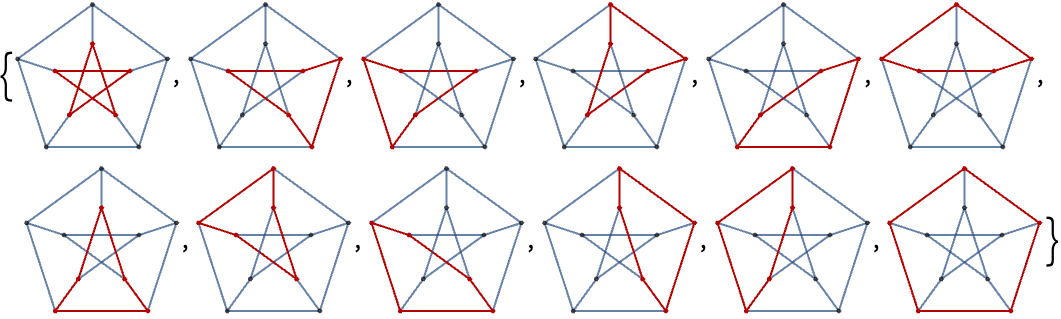

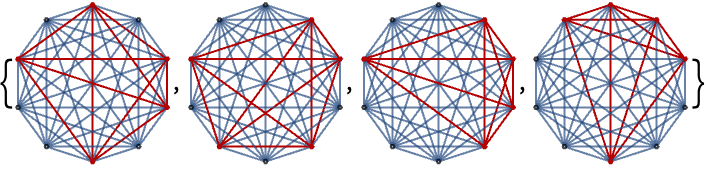

Highlight them:

In[4]:=4
✖
https://wolfram.com/xid/0i1ivd2li-jvem9p
Out[4]=4

Properties & Relations  (3)Properties of the function, and connections to other functions

The vertices of subgraphs are subsets of the original vertices:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-jzr4k
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-dhc7u6
Out[2]=2

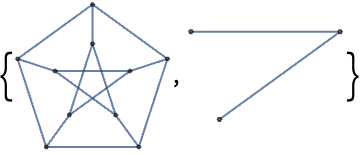

The edges of subgraphs are subsets of the original edges:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-cdkv6
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-nh3u1e
Out[2]=2

The subgraph of a complete graph is a complete graph:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-hh7eio
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-hctfgd
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0i1ivd2li-dbg0j0
Out[3]=3

Neat Examples  (1)Surprising or curious use cases

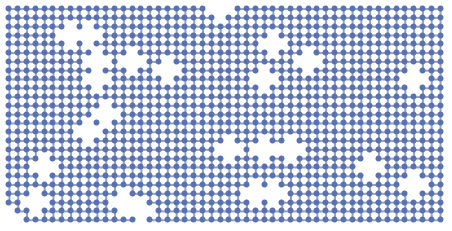

Subtract random neighborhoods from a grid:

In[1]:=1
✖
https://wolfram.com/xid/0i1ivd2li-cof010
In[2]:=2
✖
https://wolfram.com/xid/0i1ivd2li-0tu32s
Out[2]=2
