ParticleAccelerator

Related Interpreter »
Machines used to propel charged particles for particle physics research.

Entity["ParticleAccelerator",name] or

represents an entity of type "ParticleAccelerator".

[prop]

gives the value of a specified property.

[{propi,}]

gives the value of a list of properties.

EntityClass["ParticleAccelerator",{propispeci,}]

represents a class of entities with values of propi defined by speci.

Sample Entities

Sample Entity Classes

Properties

  • Abbreviationabbreviation
    AcceleratedParticlesaccelerated particles
    CenterOfMassEnergycenterofmass energy
    Classestypes
    Coordinatescoordinates
    Diameterdiameter
    EndDateoperation end date
    EntityClassesentity classes
    EntityTypeListentity type list
    Experimentsexperiments
    KineticEnergykinetic energy
    Latitudelatitude
    Lengthlength
    Longitudelongitude
    Namename
    Positionposition
    Radiusradius
    Shapeshape
    StartDateoperation start date

Details

  • "ParticleAccelerator" entities represent particular current or historical particle accelerators.
  • "ParticleAccelerator" entity classes group entities by the type of accelerator, such as "cyclotrons", and by the particles' use, such as "electron positron colliders".
  • Some properties are available for the "ParticleAccelerator" entity type as a whole and can be given using the form EntityValue["ParticleAccelerator",property]. Such properties include:
  • "Properties"the list of available properties
    "PropertyCanonicalNames"the standard names of available properties
    "SampleEntities"a sample list of available entities (typically of length 10)
    "SampleEntityClasses"a sample list of available entity classes (typically of length 10)
    "EntityCount"number of entities available
    "Entities"the list of available entities
    "EntityCanonicalNames"the standard names of available entities
    "EntityClasses"the list of available entity classes
    "EntityClassCanonicalNames"the standard names of available entity classes
    "PropertyClasses"the list of available property classes
    "PropertyClassCanonicalNames"the standard names of available property classes
    "PropertyCount"number of properties available
  • The following annotations can be used in the third argument of EntityValue["ParticleAccelerator",property,annotation]:
  • "Source"source information for the property
    "Date"the date associated with the entity-property value (if any)
    "EntityAssociation"an association of entities and entity-property values
    "PropertyAssociation"an association of properties and entity-property values
    "EntityPropertyAssociation"an association in which the specified entities are keys, and values are a nested association of properties and entity-property values
    "PropertyEntityAssociation"an association in which the specified properties are keys, and values are a nested association of entities and entity-property values
    "Dataset"a dataset in which the specified entities are keys, and values are an association of property names and entity-property values
  • The following annotations can be used in the second argument of EntityValue[property,annotation]:
  • "Qualifiers"the list of possible qualifiers for the property
    "QualifierValues"the list of possible values that can be given to each qualifier
    "DefaultQualifierValues"the list of default values for the property's qualifiers
    "Description"a brief textual description of the property
    "Definition"a detailed textual definition of the property
    "PhysicalQuantity"the physical quantity associated with the entity-property value
    "Unit"the unit associated with the entity-property value
  • A qualifier value of Automatic indicates that an applicable format of values can be used; e.g. for the "Date" qualifier, this includes a proper date or date span.

Examples

Basic Examples  (4)

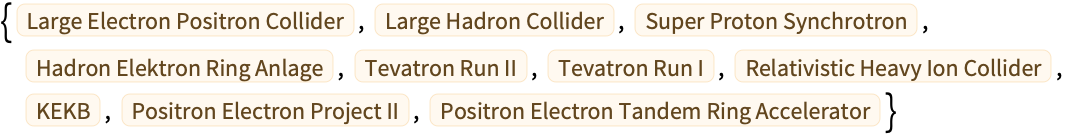

Use for entity discovery:

Find a property value for an entity:

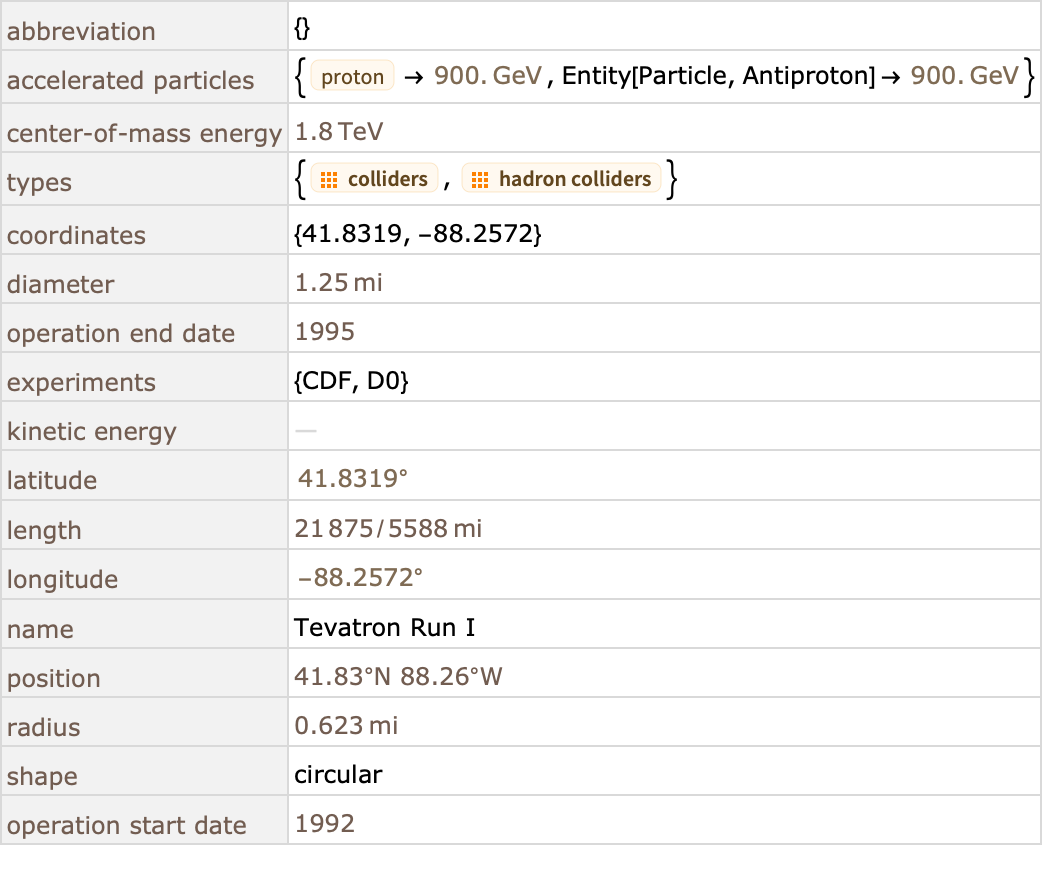

Retrieve a dataset of all available properties for an entity:

Find the particle accelerators with the largest diameter:
