IGES (.iges, .igs)

New in 14[Experimental]

Background & Context

    • MIME type: model/iges
    • IGES is an acronym for Initial Graphics Exchange Specification.
    • 3D geometry format.
    • Commonly used for representing 3D models for computer-aided design.
    • Binary format.
    • Stores a 3D object, including a solid, as a surface formed by a collection of adjacent triangles.

Import & Export

  • Import["file.igs"] imports an IGES file as a graphics object representing the surface.
  • Import["file.igs",elem] imports the specified element from an IGES file.
  • The import format can be specified with Import["file","IGES"] or Import["file",{"IGES",elem,…}].
  • Export["file.igs",expr] exports a 3D graphics object to a IGES file. The expr can be any region that is ConstantRegionQ or a Graphics or Graphics3D object.
  • The export format can be specified with Export["file",expr,"IGES"] or Export["file",expr,{"IGES",opt1->val1,…}].
  • See the following reference pages for full general information:
  • Import, Exportimport from or export to a file
    CloudImport, CloudExportimport from or export to a cloud object
    ImportString, ExportStringimport from or export to a string
    ImportByteArray, ExportByteArrayimport from or export to a byte array

Import Elements

  • General Import elements:
  • "Elements" list of elements and options available in this file
    "Summary"summary of the file
    "Rules"list of rules for all available elements
  • Graphics representation elements:
  • "Graphics3D"IGES file represented as a Graphics3D object
    "GraphicsComplex"IGES file as a GraphicsComplex object
    "PolygonObjects"list of polygon primitives given in absolute coordinates
  • Import and Export use the "Graphics3D" element by default for IGES files.

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

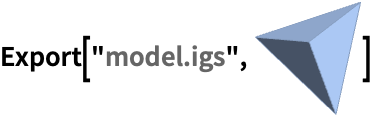

Import a 3D model from IGES as a Graphics3D object:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-ru9biw
Out[1]=1

Summary properties of the model:

In[2]:=2
✖
https://wolfram.com/xid/0b3t1w9fl2-ffnh4n
Out[2]=2

Export a 3D model to an IGES file:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-f161sr
Out[1]=1

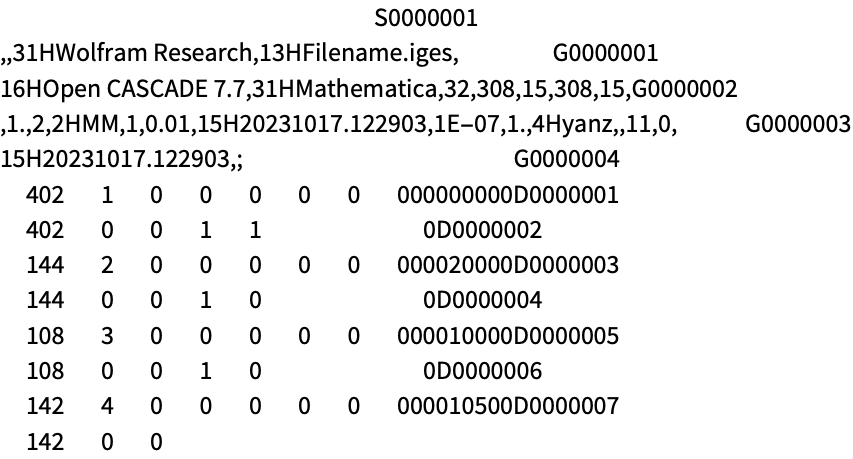

Print the raw textual contents of the file:

In[2]:=2
✖
https://wolfram.com/xid/0b3t1w9fl2-b11wj
Out[2]=2

Scope  (5)Survey of the scope of standard use cases

Import  (3)

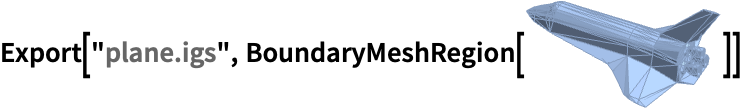

Import works on IGES files:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-k4r9lt
Out[1]=1

Stream:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-b7tz7s
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0b3t1w9fl2-c1otan
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0b3t1w9fl2-cel26n
Out[3]=3

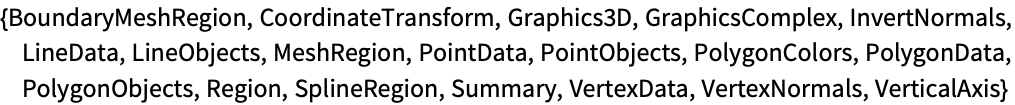

Import provides access to elements in the IGES file:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-g497j
Out[1]=1

Export  (2)

Special regions:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-j3291b
Out[1]=1

Boundary mesh regions:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-16b76j
Out[1]=1

Import Elements  (7)

"Graphics3D"  (1)

Give the Graphics3D object:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-c0g6z2
Out[1]=1

"MeshRegion"  (1)

Give the mesh region:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-e0nc0w
Out[1]=1

"SplineRegion"  (1)

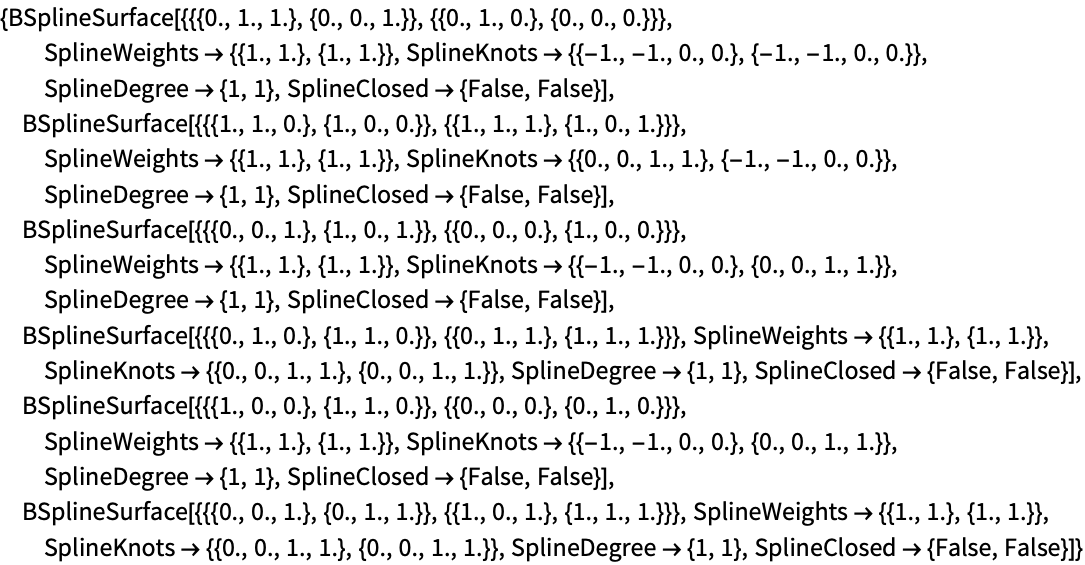

Give the spline region:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-xk4f7t
Out[1]=1

"PolygonData"  (1)

Give the polygon elements in indexed form:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-fe6av2

"PolygonObjects"  (1)

Give the list of Polygon primitives in absolute coordinates:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-y4td3
Out[1]=1

"Summary"  (1)

Give the summary of properties:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-h7yxm3
Out[1]=1

"VertexData"  (1)

Give the vertex coordinates:

In[1]:=1
✖
https://wolfram.com/xid/0b3t1w9fl2-dm56mx
