NDSolve`FEM`
NDSolve`FEM`

PrismElement

PrismElement[{{i11,i12,i13,i14,i15,i16},…,{in1,in2,in3,in4,in5,in6}}]

represents n linear prism elements ek with incidents {ik1,ik2,ik3,ik4,ik5,ik6}.

PrismElement[{{i11,…,i115},…,{in1,…,in15}}]

represents n quadratic prism elements ek with incidents {ik1,…,ik15}.

PrismElement[{e1,…,en},{m1,…,mn}]

represents n prism elements ek and n integer markers mk.

Details and Options

  • PrismElement is used to represent prism mesh elements in ElementMesh.
  • PrismElement can be used as an input to ToElementMesh.
  • Incidents ik,j are integers that index an array of spatial coordinates. The coordinates referenced by ek={ik1,…} are the nodes of the k^(th) prism.
  • The first six incidents ik1, ik2, ik3, ik4, ik5 and ik6 are always vertices.
  • For quadratic prism elements, the next nine incidents are mid-side nodes of possibly curved edges.
  • Linear elements are order-1 elements and quadratic elements are order-2 elements.
  • In PrismElement[{e1,…,en}], all elements ek need to be of the same order.
  • The prism in PrismElement[{e1,…,en}] will share common nodes, edges and faces, but these cannot intersect with each other, or for second-order prisms, with themselves.

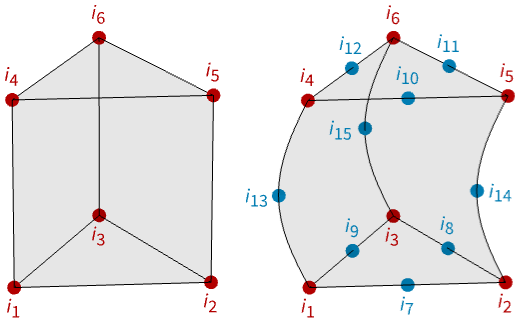

  • The nodes for a linear and a quadratic prism are shown:
  • For a PrismElement, the face incidents must be counterclockwise. An element {i1,i2,i3,i4,i5,i6} has the face incidents {i1,i2,i3,0}, {i4,i5,i6,0}, {i2,i5,i6,i3}, {i3,i6,i4,i1} and {i1,i4,i5,i2} for the five faces.
  • The prism element is known in the finite element method as a serendipity element.
  • Prism elements can be used to extrude 2D triangle meshes into 3D.
  • Prism elements can connect tetrahedron and hexahedron elements in the same mesh.

Examples

open allclose all

Basic Examples  (1)

Load the package:

Create a mesh with one prism element:

Generalizations & Extensions  (4)

The base coordinates of the linear element:

The base incidents of the linear element:

A mesh with a linear unit element:

Visualization of the linear unit element:

The base coordinates of the quadratic element:

The base incidents of the quadratic element:

The base face incidents of the linear element:

The base face incidents of the quadratic element:

Applications  (2)

Prism elements can be used to extrude a two-dimensional triangle mesh to three dimensions. Create and visualize a 2D first-order mesh:

Extract the coordinates of the 2D mesh, add a third dimension in the -direction and extrude the coordinates in the -direction:

Create and visualize the 3D prism element mesh:

Combine a prism and a tetrahedron element with markers:

Visualize the mesh with the elements' markers:

Possible Issues  (6)

The incidents must be of the appropriate length:

The incident order cannot be mixed:

The incidents must be lists of integers:

The number of markers must match the number of incidents:

Markers must be a vector of integers:

When possible, noninteger markers will be converted to integers:
