AlphaChannel

AlphaChannel[color]

returns the opacity of color.

AlphaChannel[image]

returns the alpha channel of image.

Details

  • AlphaChannel returns an image in which each pixel represents the opacity of the corresponding pixel. Alpha channels are typically used for highlighting regions of interest or masking the image.
  • If the input has no opacity, the opacity of color or all pixels of image is assumed to be 1. »
  • AlphaChannel works with any valid color directive as well as 2D and 3D images.

Background & Context

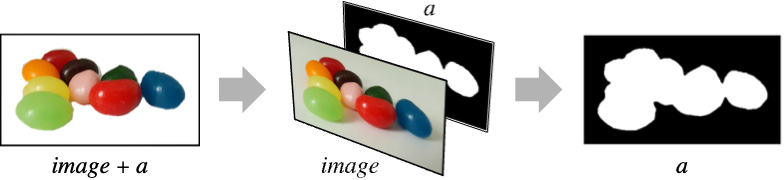

  • AlphaChannel gives the matte associated with an image that locally specifies opacity. It is therefore useful for combining an image with a background where the contribution from the image and the background vary across the image.
  • AlphaChannel returns a grayscale image whose pixel values are an array of real numbers between 0 and 1 inclusive. Here, 0 indicates the image is fully transparent and 1 indicates it is completely opaque. The pixels of an alpha channel are in one-to-one correspondence with the pixels of its associated image and are stored as a separate channel in the same file as the image data.
  • If an image does not have an explicit alpha channel, AlphaChannel returns an image of all 1s, i.e. one that is completely white. SetAlphaChannel can be used to add or modify an alpha channel in an image and RemoveAlphaChannel can be used to remove an alpha channel. ImageChannels will return a count one larger for an image containing an alpha channel compared to an image without one.
  • While an alpha channel specifies opacity (visibility) of individual pixels in an image, the graphics directive Opacity may be used to specify the level of opacity for graphics primitives in the Wolfram Language. Unlike an alpha channel, Opacity is not stored as a part of the graphics primitives themselves. It can therefore be applied to entire collections of graphics expressions (as opposed to a single image).

Examples

open allclose all

Basic Examples  (3)

Opacity of a color directive:

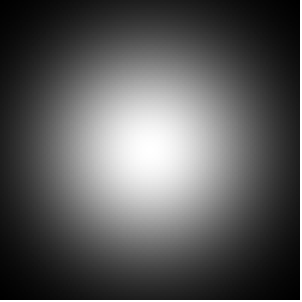

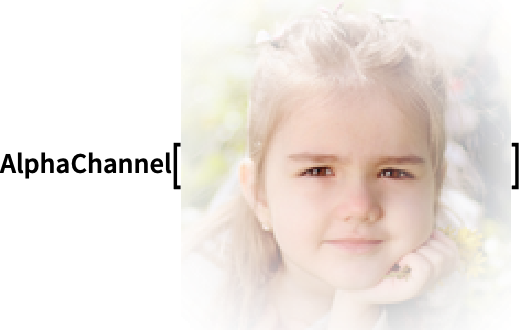

Alpha channel of an image:

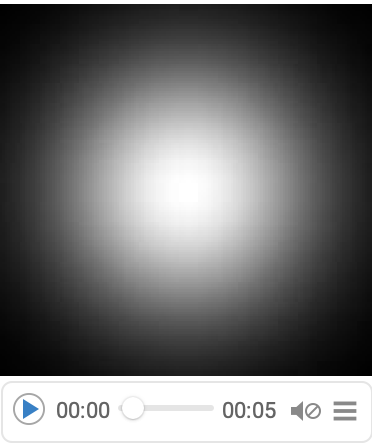

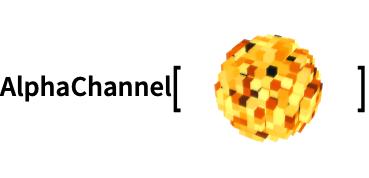

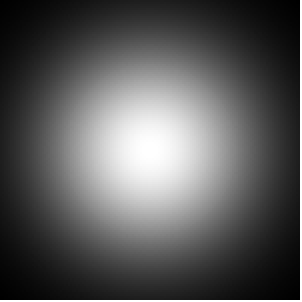

Alpha channel of a 3D image:

Applications  (3)

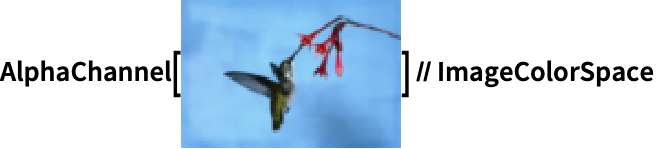

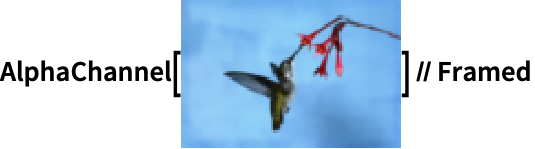

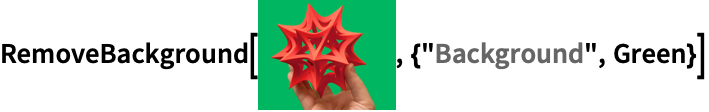

Visualize an image background by negating its alpha channel:

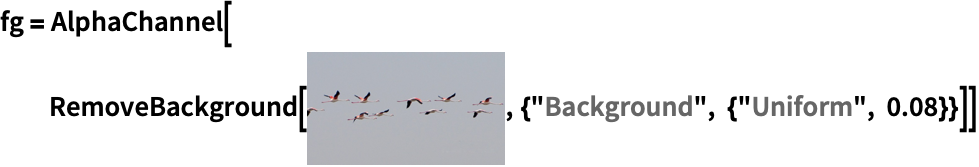

Alpha channel is used for separating foreground from background:

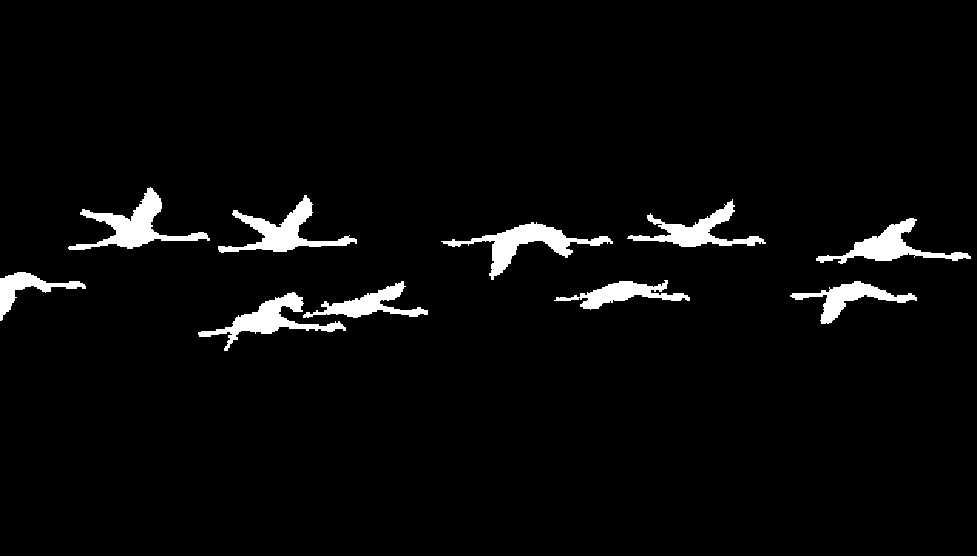

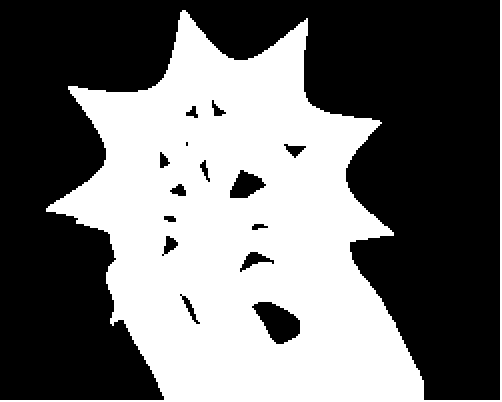

Extract the alpha channel corresponding to the foreground:

Compute the area of the foreground:

Count number of foreground components using the alpha channel:

Count the number of connected components:

Properties & Relations  (2)

Verify if an image has an alpha channel:

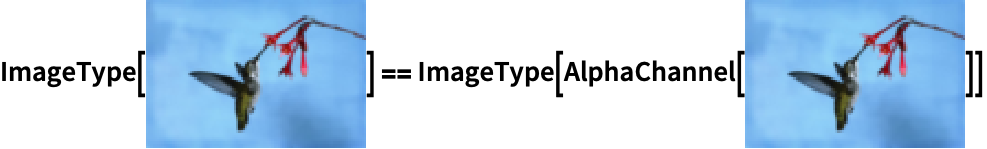

The alpha channel of a completely opaque image is white:

Alpha channel is returned as a grayscale image:

Alpha channel has the same data type as the image:
