ColorCombine

ColorCombine[{image1,image2,…}]

creates a multichannel image by combining the sequence of channels in the imagei.

ColorCombine[{image1,image2,…},colorspace]

combines images that represent the color components specified by colorspace.

Details

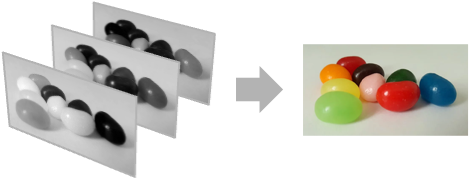

  • ColorCombine is typically used to combine multiple single-channel images into a multichannel image.
  • ColorCombine[{image1,image2,…}] creates an image containing channels obtained by concatenating the sequence of channels from each imagei.
  • ColorCombine works on 2D or 3D images.
  • The images {image1,image2,…} must have the same dimensions.
  • ColorCombine[{image1,image2,…},colorspace] returns an image of the specified colorspace.
  • The following colorspace specifications can be given:
  • "RGB"red, green, blue (RGBColor)
    "CMYK"cyan, magenta, yellow, black (CMYKColor)
    "HSB"hue, saturation, brightness (Hue)
    "XYZ"CIE XYZ channels (XYZColor)
    "LAB"CIE Lab channels (LABColor)
    "LCH"CIE LCH channels (LCHColor)
    "LUV"CIE LUV channels (LUVColor)
  • With a colorspace that requires n color channels, n or n+1 channels may be combined. The n+1^(th) channel is used as an alpha channel.
  • When combining a color image with a grayscale image, ColorCombine creates an image of the same color space with alpha channel.

Examples

open allclose all

Basic Examples  (2)

Combine three gray-level images into an RGB image:

Combine three gray-level 3D images into an RGB volume:

Scope  (6)

Combine three binary images into an RGB image:

Combine three single-channel images into an HSB image:

Combine images into a CMYK image:

Color combine channels of a three-channel image rendered using all the supported color spaces:

Combine four single-frame images into an RGBA image:

Combine an RGB image with a single-frame image to get an RGBA image:

Create a six-channel image:

Applications  (5)

Display a channel-wise GradientFilter:

Increase the contrast of the luminance channel only:

Highlight the result of corner filtering:

Show corners in red by adding the result to the red channel and subtract it from the green and blue channels:

Replace the red channel of an aerial image with an infrared image to highlight regions with greater biomass density:

Add an alpha channel to a 3D image that highlights a single slice:

Add an alpha channel in the shape of a Gaussian sphere to a 3D image:

Properties & Relations  (2)

By default, no explicit color space is assigned to the image:

Note that three channel images are rendered similarly to RGB images:

Images created with ColorCombine have Interleaving->False:

Neat Examples  (2)

Show color channel permutations:

Adjust a channel of an image:
