BubbleSizes
✖
BubbleSizes

✖

is an option to BubbleChart and related functions that specifies the range of sizes used for bubbles.

Details

  • The following settings can be given for BubbleSizes:
  • Automaticdetermine bubble sizes automatically
    Large, Medium, Small, Tinyuse preset bubble sizes
    {smin,smax}use minimum size smin and maximum size smax
  • The sizes smin and smax specify the fraction of the diagonal of the overall chart bounding box that should be occupied by the diagonals of the bounding boxes of bubbles.
  • If smin or smax is given as Automatic, the minimum or maximum bubble size is determined automatically on the basis of BubbleScale.

Examples

Basic Examples  (1)Summary of the most common use cases

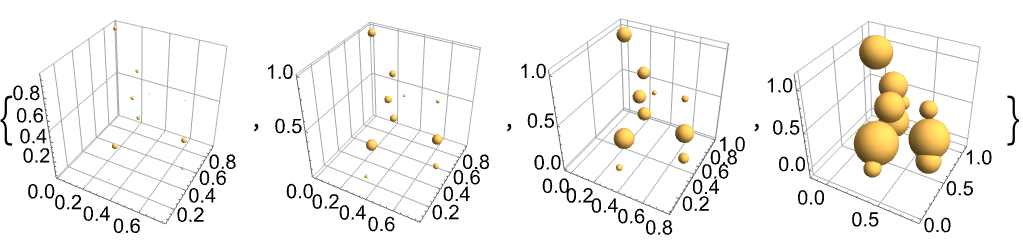

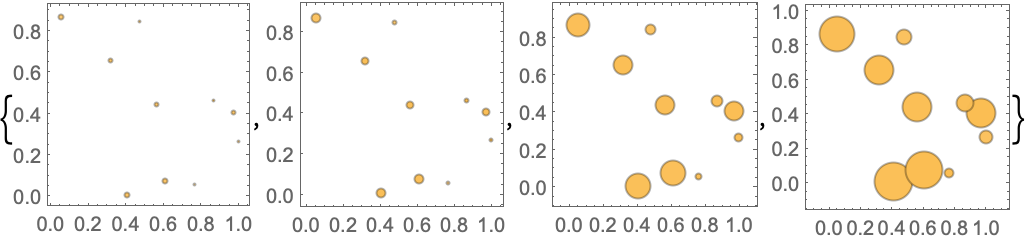

Specify the bubble sizes to use:

In[1]:=1
✖
https://wolfram.com/xid/0v55cxw2n742c-cmquih
In[2]:=2
✖
https://wolfram.com/xid/0v55cxw2n742c-dxc8u2
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0v55cxw2n742c-b9oozs
In[4]:=4
✖
https://wolfram.com/xid/0v55cxw2n742c-ixcv6d
Out[4]=4
