ColorSpace

✖
`ColorSpace`

✖

is an option for Image and related functions that specifies the color space to which color values refer.

Details

Color spaces, also known as color models, provide numerical models to represent colors. Some models such as RGB are designed to better represent colors on devices, and some like CIELAB are more suitable for perceptual color comparison.
Color spaces supported by Image and Image3D include:

	"Grayscale"	gray level (GrayLevel)
	"RGB"	red, green, blue (RGBColor)
	"CMYK"	cyan, magenta, yellow, black (CMYKColor)
	"HSB"	hue, saturation, brightness (Hue)
	"XYZ"	CIE XYZ (XYZColor)
	"LAB"	CIE (LABColor)
	"LCH"	CIE (LCHColor)
	"LUV"	CIE (LUVColor)
	ColorProfileData[…][i]	color profile with the specified rendering intent i

With ColorSpace->ColorProfileData[…][i], rendering intent can be specified. Possible settings are "PerceptualProfile" (default), "SaturationProfile", "MediaRelativeColorimetricProfile", and "ICCAbsoluteColorimetricProfile".

Examples

open allclose all

Basic Examples (3)Summary of the most common use cases

Create an RGB image from an array of data:

In[1]:=1

✖

https://wolfram.com/xid/0tzo6rqu-y6yvfs

Out[1]=1

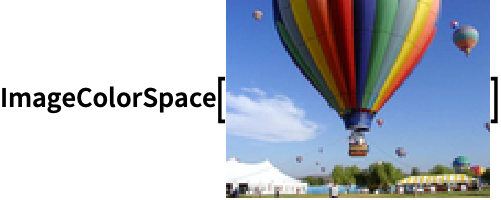

Change the interpretation of the channel values:

In[1]:=1

✖

https://wolfram.com/xid/0tzo6rqu-mc6mkg

Out[1]=1

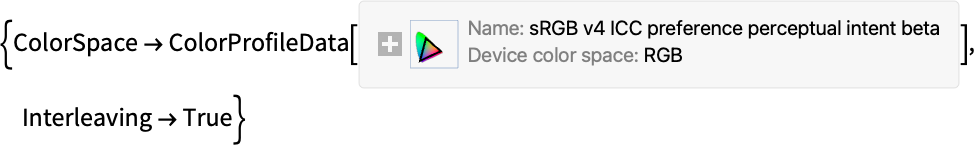

Color space can be stored as a ColorProfileData object:

In[1]:=1

✖

https://wolfram.com/xid/0tzo6rqu-4t20tk

Out[1]=1

Properties & Relations (2)Properties of the function, and connections to other functions

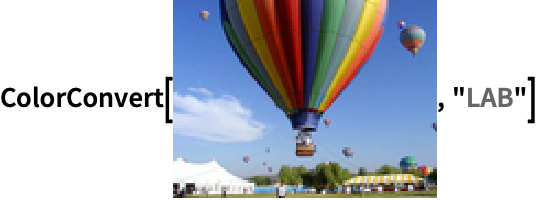

Use ImageColorSpace to extract the color space of an image:

In[1]:=1

✖

https://wolfram.com/xid/0tzo6rqu-htuxrb

Out[1]=1

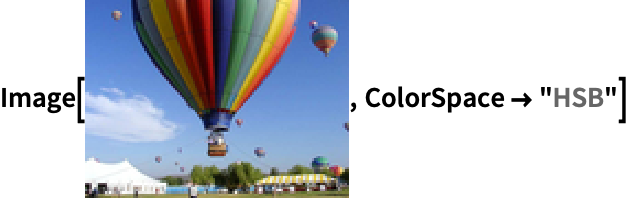

Use ColorConvert to switch between color spaces:

In[1]:=1

✖

https://wolfram.com/xid/0tzo6rqu-rb9g55

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0tzo6rqu-civc58

Out[2]=2
