GaborMatrix

✖
`GaborMatrix`

✖

GaborMatrix[r,k]

gives a matrix that corresponds to the real part of a Gabor kernel of radius r and wave vector k.

✖

GaborMatrix[r,k,ϕ]

uses phase shift ϕ.

✖

GaborMatrix[{r,σ},…]

uses the specified standard deviation σ.

✖

GaborMatrix[{{r₁,r₂,…}},…]

gives an array corresponding to a Gabor kernel with radius r_i in the i index direction.

Details and Options

GaborMatrix[{r,σ},k,ϕ] gives values proportional to at index position from the center.
GaborMatrix[r,k] is equivalent to GaborMatrix[{r,r/2},k,0].
By default, the matrix is rescaled so that the elements of Abs[GaborMatrix[r,k,0]+I GaborMatrix[r,k,π/2]] sum to 1.
For integer r, GaborMatrix[r,…] yields a × matrix.
For noninteger r, the value of r is effectively rounded to an integer.
Either of the r or σ can be lists, specifying different values for different directions.
With GaborMatrix[{r,{σ₁,σ₂,…}},k], σ₁ is the standard deviation along k, and σ₂, … are standard deviations perpendicular to k. The i direction is defined by the i column of RotationMatrix[{{1,0,…},k}].
For data arrays with n dimensions and a wave vector {k₁,…,k_n}, k_i is pointing in the same direction as the i dimension of data. For images, the filter is effectively applied to ImageData[image].
The following options can be specified:

	Standardized	True	whether to rescale the matrix to account for truncation
	WorkingPrecision	Automatic	the precision with which to compute matrix elements

Examples

open allclose all

Basic Examples (3)Summary of the most common use cases

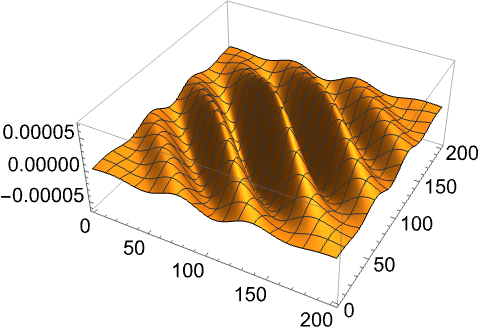

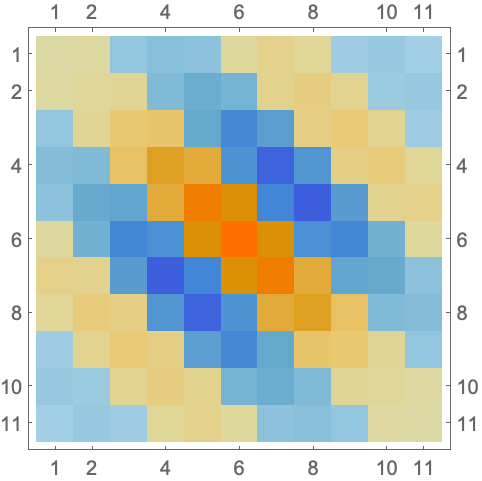

Visualize a Gabor matrix:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-gezb54

Out[1]=1

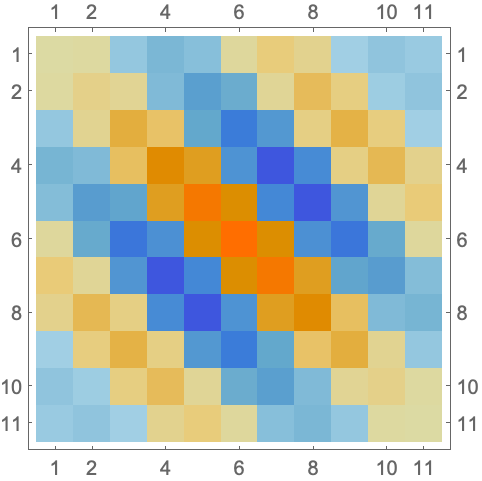

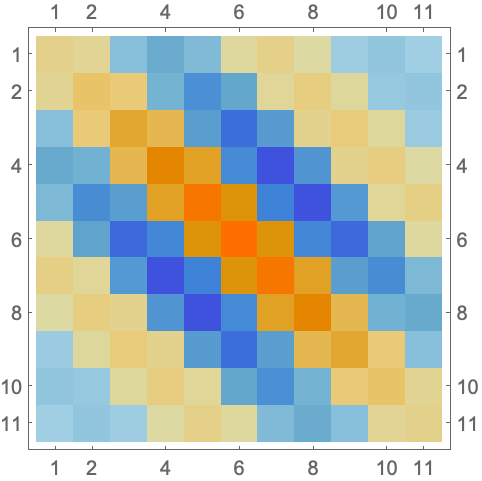

MatrixPlot of a Gabor matrix:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-kilgdo

Out[1]=1

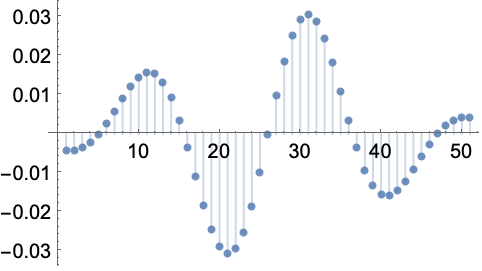

1D Gabor vector:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-v4a1ut

Out[1]=1

Scope (9)Survey of the scope of standard use cases

Gabor matrix using a 45° wave vector. Notice that the wave vector is perpendicular to the wave front:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-x98y0s

Out[1]=1

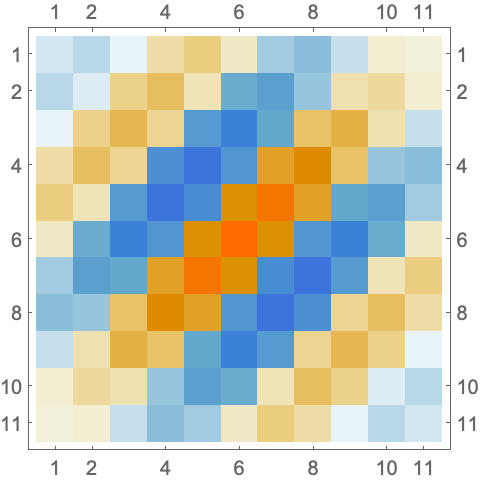

Specify an isotropic standard deviation :

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-x8r3wq

Out[1]=1

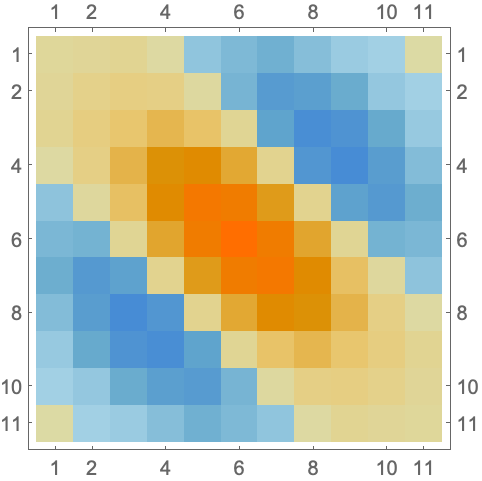

Specify an anisotropic standard deviation and :

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-ocb7ia

Out[1]=1

Decrease the wave number to get a Gabor matrix with a larger wavelength:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-1jaqkh

Out[1]=1

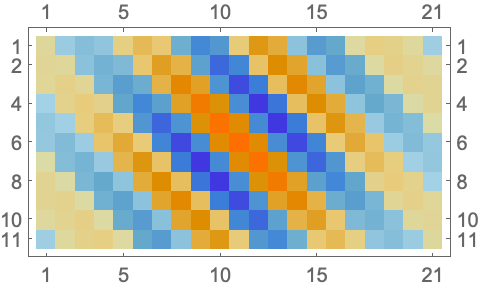

Create a rectangular Gabor matrix:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-7y8t0r

Out[1]=1

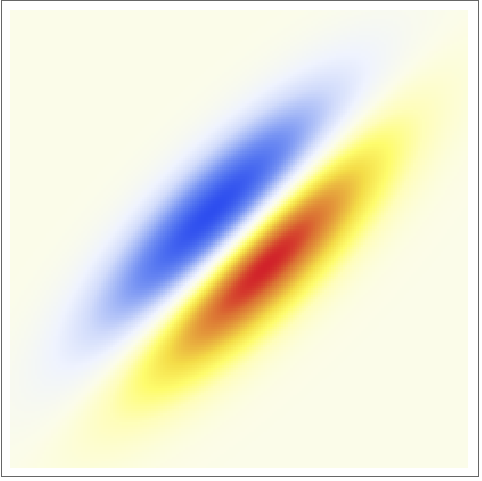

An anisotropic Gabor matrix with a large wavelength and a node at the center:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-bqqhqm

Out[1]=1

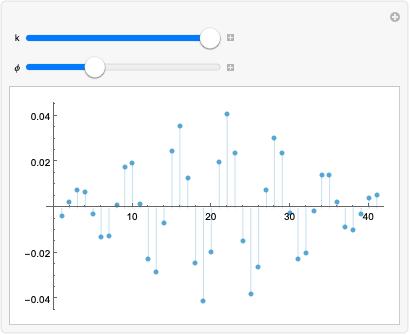

Visualize a 1D Gabor vector with different wave number and phase shift:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-b846jd

Out[1]=1

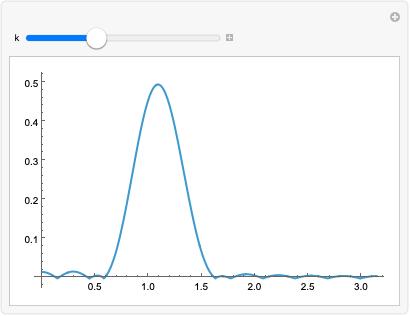

Visualize the magnitude spectrum of a 1D Gabor vector for different values of the wavenumber:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-jpzq5

Out[1]=1

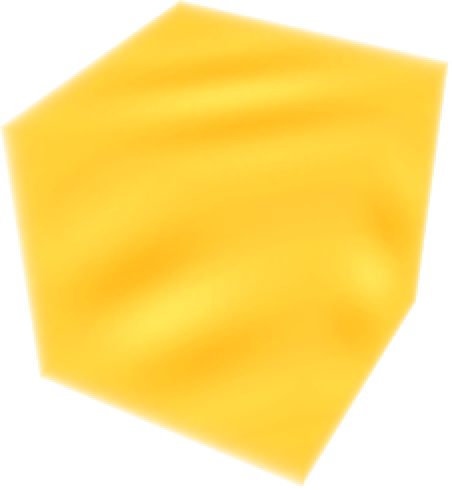

A 3D Gabor matrix:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-nl9i65

Out[1]=1

Options (2)Common values & functionality for each option

Standardized (1)

The default setting is True:

In[7]:=7

✖

https://wolfram.com/xid/01y98uar4u6-ggy8i

Out[7]=7

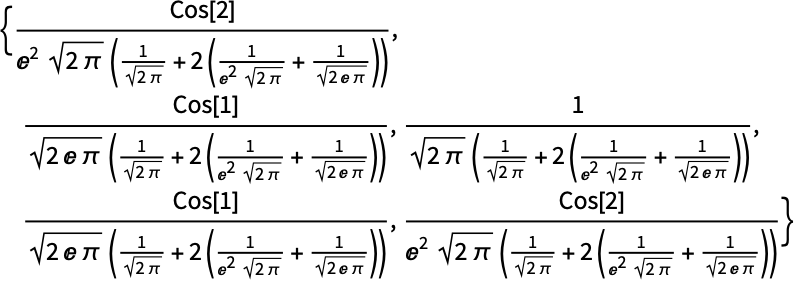

Use StandardizedFalse:

In[8]:=8

✖

https://wolfram.com/xid/01y98uar4u6-f9v0fb

Out[8]=8

WorkingPrecision (1)

MachinePrecision is used by default:

In[5]:=5

✖

https://wolfram.com/xid/01y98uar4u6-b9bieq

Out[5]=5

Perform exact computation instead:

In[4]:=4

✖

https://wolfram.com/xid/01y98uar4u6-b8ufl0

Out[4]=4

Properties & Relations (3)Properties of the function, and connections to other functions

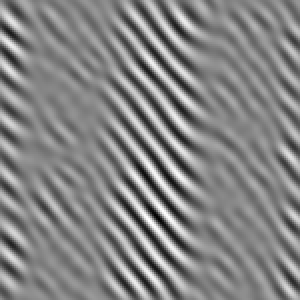

GaborFilter is equivalent to a convolution with a GaborMatrix:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-es6t43

Out[2]=2

In[3]:=3

✖

https://wolfram.com/xid/01y98uar4u6-ri8l57

Out[3]=3

In[4]:=4

✖

https://wolfram.com/xid/01y98uar4u6-bfgtky

Out[4]=4

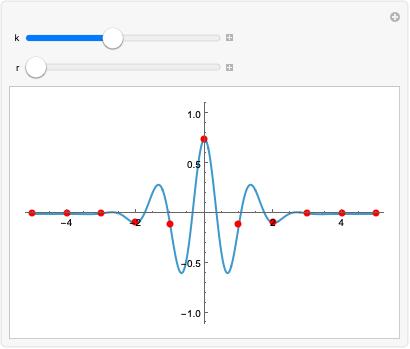

Visualize the 1D Gabor kernel on its equivalent Gabor wavelet function:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-ccnr7p

Out[1]=1

With a zero-length wave vector, Gabor matrix is equivalent to GaussianMatrix:

In[1]:=1

✖

https://wolfram.com/xid/01y98uar4u6-gppcpj

Out[1]=1
