Joined

Joined

is an option for ListPlot and related functions that specifies whether points in each dataset should be joined into a line, or should be plotted as separate points.

Details

  • Joined->True plots each dataset as a line.
  • Joined->False plots all datasets as points.
  • Joined->{s1,s2,…} specifies separately whether to join each dataset. If there are more datasets than si given, the si are used cyclically.
  • Joined->True specifies that a line rather than points should be drawn. The additional option Mesh->Full specifies that the original points should also be indicated.

Examples

Basic Examples  (2)

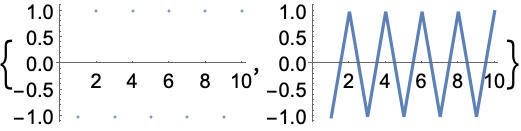

Specify that points should be joined:

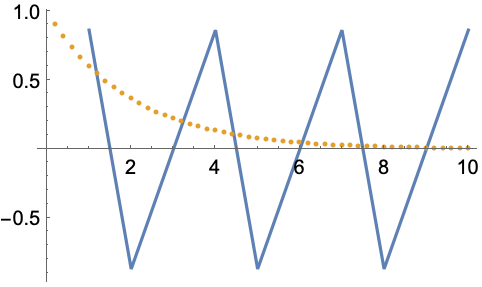

Use both standard and joined plots with multiple datasets:
