Laplacian
Laplacian[f,{x1,…,xn}]
gives the Laplacian
.
Laplacian[f,{x1,…,xn},chart]
gives the Laplacian in the given coordinates chart.
Details
- Laplacian is also known as Laplace–Beltrami operator. When applied to vector fields, it is also known as vector Laplacian.
- Laplacian[f,x] can be input as
f. The character ∇ can be typed as
del
or \[Del]. The list of variables x and the 2 are entered as a subscript and superscript, respectively. - An empty template
can be entered as
del2
, and
moves the cursor from the subscript to the main body. - All quantities that do not explicitly depend on the variables given are taken to have zero partial derivative.
- Laplacian[f,{x1,x2,…}] yields a result with the same dimensions as f.
- In Laplacian[f,{x1,…,xn},chart], if f is an array, it must have dimensions {n,…,n}. The components of f are interpreted as being in the orthonormal basis associated to chart.
- For coordinate charts on Euclidean space, Laplacian[f,{x1,…,xn},chart] can be computed by transforming f to Cartesian coordinates, computing the ordinary Laplacian and transforming back to chart. »
- A property of Laplacian is that if chart is defined with metric g, expressed in the orthonormal basis, then Laplacian[g,{x1,…,xn]},chart] gives zero. »
- Coordinate charts in the third argument of Laplacian can be specified as triples {coordsys,metric,dim} in the same way as in the first argument of CoordinateChartData. The short form in which dim is omitted may be used.
- Laplacian works with SparseArray and structured array objects.
Examples
open allclose allBasic Examples (4)
The Laplacian in three-dimensional Cartesian coordinates:
The Laplacian in three-dimensional cylindrical coordinates:
The Laplacian in two-dimensional polar coordinates:
Use
del
to enter ∇,
for the list of subscripted variables, and
to enter the 2:
Use
del2
to enter the template
, fill in the variables, press
, and fill in the function:
Scope (5)
Applications (3)

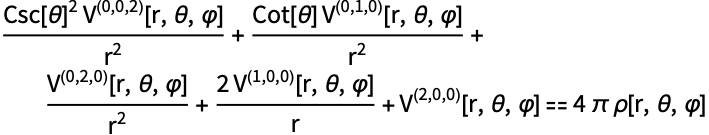

Poisson's equation in spherical coordinates:
Solve for a radially symmetric charge distribution
:
The Laplacian on the unit sphere:
The spherical harmonics
are eigenfunctions of this operator with eigenvalue
:
The generalization of the Coulomb potential—the electric potential of a point charge—to n dimensions is:
Since the charge density is only nonzero at the origin, the Laplacian must be equal to zero everywhere else:

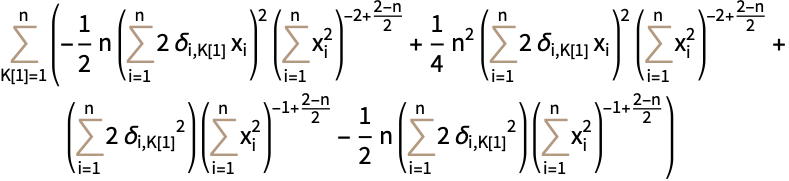

Activating the result in specific dimensions and combining denominators shows the result is zero:
This result can also be obtained in each dimension using spherical coordinates:
Properties & Relations (8)
Laplacian preserves the shape of an array:
The Laplacian is equal to the divergence of the gradient:
Since Grad uses an orthonormal basis, the Laplacian of a scalar equals the trace of the double gradient:
For higher-rank arrays, this is the contraction of the last two indices of the double gradient:
Compute Laplacian in a Euclidean coordinate chart c by transforming to and then back from Cartesian coordinates:
The result is the same as directly computing Laplacian[f,{x1,…,xn},c]:
The Laplacian of an array equals the Laplacian of its components only in Cartesian coordinates:
If chart is defined with metric g, expressed in the orthonormal basis, Laplacian[g,{x1,…,xn},chart] is zero:
For a vector field
in three-dimensional flat space, the Laplacian is equal to
:
In a flat space of dimension
, the Laplacian of a vector field equals
. For
:
Laplacian preserves the symmetry structure of SymmetrizedArray objects:
