LineGraph
LineGraph[g]
gives the line graph of the graph g.
LineGraph[{vw,…}]
uses rules vw to specify the graph g.
Details and Options
- Each vertex in LineGraph[g] corresponds to an edge in g.
- For an undirected graph g, two vertices in LineGraph[g] are adjacent if their corresponding edges share a common vertex.
- For a directed graph g, two vertices in LineGraph[g] are adjacent if their corresponding edges are connected, i.e. the target of one edge is the source of the other edge.
- The vertices in LineGraph[g] are taken to be successive integers starting at 1.
- LineGraph works with undirected graphs, directed graphs, and multigraphs.
Background & Context

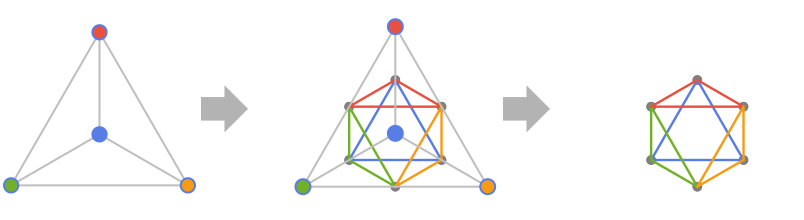

- LineGraph returns the line graph
of
, which is the graph whose vertices are the edges of
and whose vertex adjacencies correspond to the edge adjacencies of
. More formally, given a graph
with edges e1,…,em,
has vertices e1,…,em. For undirected
,
is an edge in
if
and
are incident to the same vertex in
, while for directed
,
is an edge in
if the head of
is the tail of
in
. A line graph is also known as an adjoint graph, conjugate graph, covering graph, derivative graph, derived graph, edge graph, edge-to-vertex dual graph, interchange graph, representative graph, or
-obrazom graph. - Line graphs are used to translate graph theoretical results about vertices to results about edges. For example, independent edge sets in
are independent vertex sets in
, the edge chromatic number of
is equal to the chromatic number of
, etc. - Line graphs are connected by a number of mathematical relations to their original graphs. The simplest of these is that the number of vertices of
equals the number of edges of
. In addition, if
is a simple graph having
edges and
vertices with vertex degrees d1,…,dn, then the number of edges in
is
. Another relation that allows explicit construction of line graphs is that for
the incidence matrix of a simple graph
and
an m×m identity matrix, the adjacency matrix for
is given by
. - Determining whether a graph is a line graph can be done in linear time. A graph
is the line graph of a simple graph or multigraph if and only if there exists a family of cliques such that each vertex in
is contained in exactly two of them, and each edge in
is induced by one of them.
is the line graph of a simple graph if this family of cliques can be formed so that no two vertices of
lie in the same two cliques. - There is a set of nine forbidden graphs, each having at most six vertices, such that a simple graph is a line graph of some simple graph if and only if it contains no graph in this set as an induced subgraph. This set of forbidden graphs is given by GraphData["Beineke"] and includes the complete bipartite graph
, so line graphs are claw-free. Only six of these forbidden graphs are needed to characterize which simple graphs having maximum degree at least 5 are line graphs (see GraphData["Metelsky"]). - Many important results in graph theory characterize the properties of line graphs. For example, Vizing's theorem implies that if
is a triangle-free simple graph, then the chromatic number of
is either equal to or one more than the size of a maximum clique in
, while König's line coloring theorem implies that the line graph
of a bipartite graph is perfect (i.e. the chromatic number of every induced subgraph of
equals the size of the largest clique of that subgraph).
Examples
open allclose allScope (5)
Properties & Relations (11)
The number of edges in a graph is equal to the number of vertices in its line graph:
The line graph of a connected graph is connected:
The adjacency matrix of a line graph can be computed by
:
A maximum independent set in a line graph of g corresponds to the maximum matching of g:
A cycle graph is isomorphic to its line graph:
The line graph of a claw
is a triangle:
The line graph of a path
is isomorphic to
:
The line graph of a bipartite graph is perfect:
The line graph of a Hamiltonian graph is Hamiltonian:
Neat Examples (1)
