LocalAdaptiveBinarize

LocalAdaptiveBinarize[image,r]

creates a binary image from image by replacing values above the mean of the range-r neighborhood with 1 and others with 0.

LocalAdaptiveBinarize[image,r,{α,β,γ}]

replaces values above with 1 and others with 0, where and are the local mean and standard deviation.

Details and Options

  • Local adaptive binarization determines the binarization thresholds locally and is typically used for segmenting the foreground of an image with nonuniform illumination or background.
  • LocalAdaptiveBinarize[image,r] is equivalent to LocalAdaptiveBinarize[image,r,{1,0,0}].

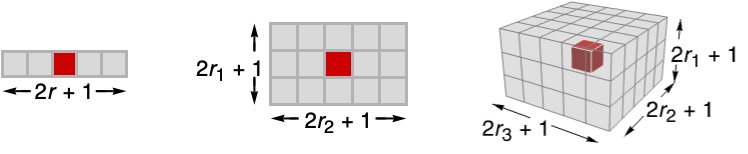

  • Using radius r, local mean and standard deviation are computed over blocks centered on each pixel.
  • LocalAdaptiveBinarize assumes the index coordinate system for images.
  • LocalAdaptiveBinarize works with 2D and 3D images, starting the binarization by converting multichannel and color images into grayscale.
  • The following options can be used:
  • Padding "Fixed"what padding scheme to use
    PerformanceGoal $PerformanceGoalwhat aspect of performance to optimize

Examples

open allclose all

Basic Examples  (1)

Locally adaptive thresholding of a color image in the presence of uneven illumination:

Scope  (10)

Data  (3)

Local thresholding of a grayscale image:

A 3D volume:

A 3D color volume:

Parameters  (7)

Specify a radius parameter of 1 to use 3×3 neighborhoods:

Specify a radius parameter of 10 to use 21×21 neighborhoods:

Segment pixels brighter than the local average around them:

Segment pixels brighter than the fraction 0.9 of the local average:

Segment pixels brighter than the local average plus half the standard deviation:

Segment pixels brighter than the local average minus 0.05:

Specify thresholding coefficients for local average, local standard deviation, and offset:

Options  (8)

PerformanceGoal  (4)

Use PerformanceGoal->"Quality" to emphasize quality of the result:

Use PerformanceGoal->"Speed" to emphasize speed of computation:

With PerformanceGoal->"Speed", the quality degrades toward the right and bottom:

Using PerformanceGoal->"Quality", computation time increases with respect to the radius:

Padding  (4)

By default, "Fixed" padding is used:

Use zero padding:

Use smaller neighborhoods at the boundaries of the image:

Compare different padding settings:

Applications  (3)

Features under uneven illumination are typically not recognized correctly:

TextRecognize fails in this case and returns only a few letters:

Improve the result of text recognition by removing uneven illumination:

Extract a cloth texture by removing uneven illumination:

Segment an electronic board:

Properties & Relations  (1)

A simple thresholding is performed when the coefficients for average and standard deviation are zero:

Interactive Examples  (1)

Interactively adjust the coefficients:
