MeshRefinementFunction
✖
MeshRefinementFunction

✖

is an option for DiscretizeRegion and related functions that specifies a function to indicate whether mesh cells should be refined or not.

Details

  • With MeshRefinementFunction->f, the function f[vlist,m] is applied to each simplex created, where vlist is a list of the vertices and m is the measure. If f[vlist,m] returns True, the simplex will be refined.

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

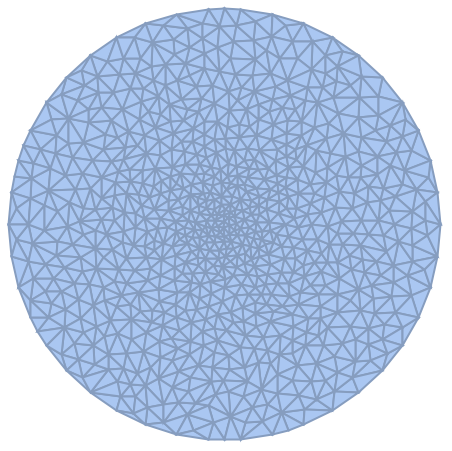

Discretize a Disk so that the triangles near the center are smaller:

In[2]:=2
✖
https://wolfram.com/xid/0yvywje8x8wi-m3r7n9
Out[2]=2

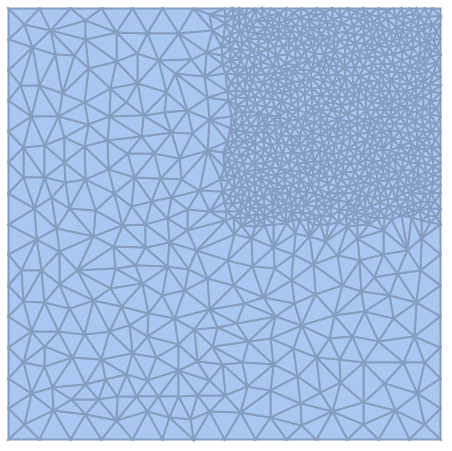

Discretize a Rectangle so that the triangles in the first quadrant are smaller:

In[1]:=1
✖
https://wolfram.com/xid/0yvywje8x8wi-cukfxs
Out[1]=1

Scope  (4)Survey of the scope of standard use cases

MeshRefinementFunction specifies a function to determine if further refinement is needed:

In[1]:=1
✖
https://wolfram.com/xid/0yvywje8x8wi-oo2q7b

Further refinement is performed on triangles for which the function returns True:

In[2]:=2
✖
https://wolfram.com/xid/0yvywje8x8wi-bv2zge
Out[2]=2

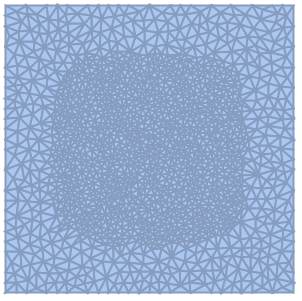

Using If makes it possible to refine triangles satisfying an implicit equation:

In[1]:=1
✖
https://wolfram.com/xid/0yvywje8x8wi-jmcojf
In[2]:=2
✖
https://wolfram.com/xid/0yvywje8x8wi-dq7x5t
Out[2]=2

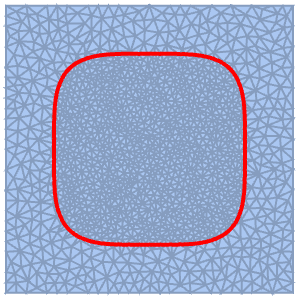

See the boundary between large and small triangles:

In[3]:=3
✖
https://wolfram.com/xid/0yvywje8x8wi-hh3voj
Out[3]=3

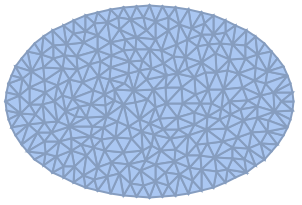

MeshRefinementFunction can be used with TriangulateMesh:

In[1]:=1
✖
https://wolfram.com/xid/0yvywje8x8wi-h1cy5l
Out[1]=1

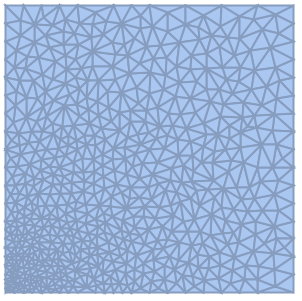

Triangulate it with smaller triangles near the lower-left corner:

In[2]:=2
✖
https://wolfram.com/xid/0yvywje8x8wi-eu1sf4
Out[2]=2

MeshRefinementFunction can be used with DiscretizeRegion:

In[1]:=1
✖
https://wolfram.com/xid/0yvywje8x8wi-bik1gm
Out[1]=1

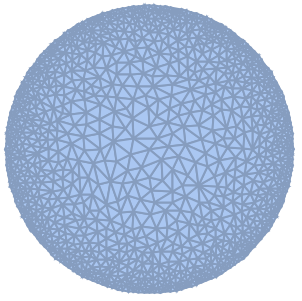

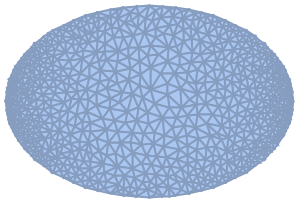

Discretize it with smaller triangles further away from the center:

In[2]:=2
✖
https://wolfram.com/xid/0yvywje8x8wi-o76mt
Out[2]=2
