SliderBox
✖
SliderBox
is a low-level box construct that represents a slider with setting x in the range 0 to 1.
takes the setting to be the dynamically updated current value of x, with the value of x being reset if the slider is moved.
represents a slider in which equally spaced intervals correspond to successive settings ei.
Details and Options

- SliderBox is generated as the low-level representation of Slider. Except for low-level notebook expression manipulation, SliderBox should not need to be used directly.
- The following options can be given:
-
Appearance {Automatic,Automatic,"Normal",Automatic} appearance of the slider AutoAction False whether to change the slider automatically when the mouse is over it Background Automatic background color BaselinePosition Automatic what to align with a surrounding text baseline BaseStyle {} base style specifications ContinuousAction True whether to update continuously when the slider is moved Enabled Automatic whether the slider is enabled or grayed out Exclusions {} specific values to be excluded ImageMargins Automatic margins around the image of the displayed slider ImageSize Automatic the overall image size of the displayed slider - xmin, xmax and dx must be machine-sized integers or reals. »
Examples
open allclose allBasic Examples (3)Summary of the most common use cases
Scope (4)Survey of the scope of standard use cases
Use the range to
, increasing when going from left to right:

https://wolfram.com/xid/0cg3hpyba-ba6qed

A slider with range to
, increasing when going from right to left:

https://wolfram.com/xid/0cg3hpyba-kuullp

Use only integer variable values:

https://wolfram.com/xid/0cg3hpyba-cp9znn

Use a list of possible values:

https://wolfram.com/xid/0cg3hpyba-m9ost7

Change the relative width corresponding to each possible value:

https://wolfram.com/xid/0cg3hpyba-eybem4

Properties & Relations (3)Properties of the function, and connections to other functions
SliderBox is used in the typesetting of Slider expressions:

https://wolfram.com/xid/0cg3hpyba-lp3sm

SliderBox with a custom Appearance option is used in the typesetting of VerticalSlider:

https://wolfram.com/xid/0cg3hpyba-bm98us

Although SliderBox is limited to machine numbers, Slider can do more:

https://wolfram.com/xid/0cg3hpyba-pjhkdr

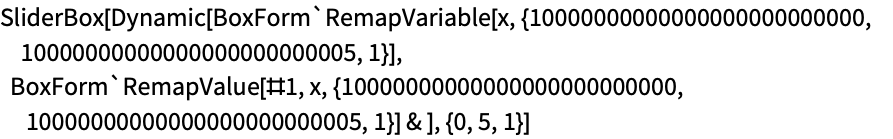

Slider does this by mapping the range into one that SliderBox can interpret:

https://wolfram.com/xid/0cg3hpyba-svixu

Slider also maps continuous ranges of symbolic values:

https://wolfram.com/xid/0cg3hpyba-1hdba
