SliderBoxOptions
Details


- The typical usage is SliderBoxOptions{opt1val1,opt2val2,…}.
- The following options may be specified:
-
Appearance {Automatic,Automatic,"Normal",Automatic} appearance of the slider AutoAction False whether to change the slider automatically when the mouse is over it Background Automatic background color BaselinePosition Automatic what to align with a surrounding text baseline BaseStyle {} base style specifications ContinuousAction True whether to update continuously when the slider is moved Enabled Automatic whether the slider is enabled or grayed out Exclusions {} specific values to be excluded ImageMargins Automatic margins around the image of the displayed slider ImageSize Automatic the overall image size of the displayed slider - Appearance can be specified as Appearanceval or Appearance{val1,…}. Values can specify appearance sizes or styles.
- The following values may be specified for Appearance sizes:
-
Tiny Small Medium Large - The following values may be specified for Appearance styles:
-
"Default" "UpArrow" "DownArrow" "Vertical" "LeftArrow" "RightArrow"
Examples
Basic Examples (3)Summary of the most common use cases
Modify the size of displayed sliders:
In[1]:=1

✖
https://wolfram.com/xid/0gfoxf01qlqr-cyl9zc
Out[1]=1

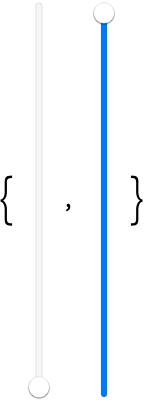

Modify the appearance of displayed sliders:
In[1]:=1

✖
https://wolfram.com/xid/0gfoxf01qlqr-r3g4h
Out[1]=1

Use BaseStyle to style all of the sliders in a given construct:
In[1]:=1

✖
https://wolfram.com/xid/0gfoxf01qlqr-ejzfo0
Out[1]=1
