VertexColors

✖
`VertexColors`

✖

is an option for graphics primitives which specifies the colors to assign to vertices.

Details

VertexColors can be used with Polygon, Line, Tube, Point, and GraphicsComplex.
VertexColors->{col₁,col₂,…} specifies that color col_i should be assigned to vertex i.
The interior of the polygon is colored by interpolating between the colors specified by VertexColors.
In 3D, settings for VertexColors can include any surface or material property, to be used with simulated lighting.
The colors col_i for each vertex can be an explicit color directive such as GrayLevel[g] or RGBColor[r,g,b], or can have the following forms:
g GrayLevel[g]

{g,a} GrayLevel[g,a]

{r,g,b} RGBColor[r,g,b]

{r,g,b,a} RGBColor[r,g,b,a]

Examples

open allclose all

Basic Examples (9)Summary of the most common use cases

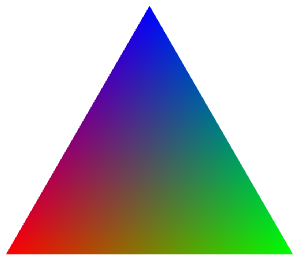

Specify vertex colors for 2D polygons:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-by2qz9

Out[1]=1

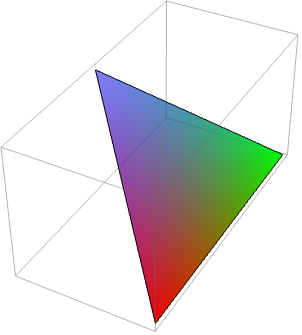

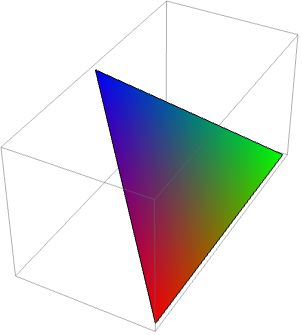

Specify vertex colors for 3D polygons:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-l58qcl

Out[1]=1

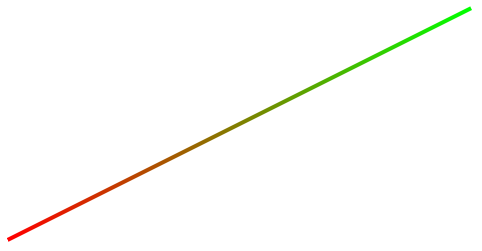

Specify vertex colors for 2D lines:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-cn0av

Out[1]=1

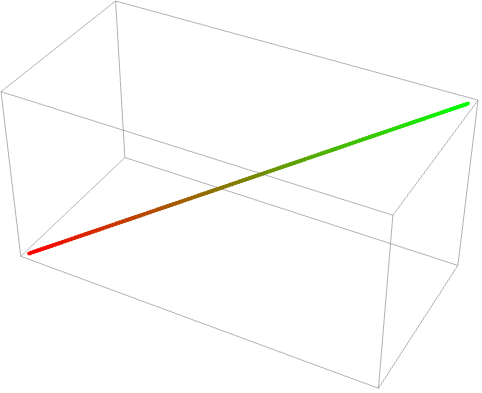

Specify vertex colors for 3D lines:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-gff7zx

Out[1]=1

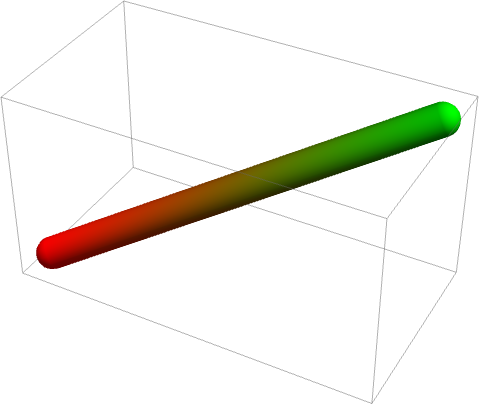

Specify vertex colors for tubes:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-gdsgth

Out[1]=1

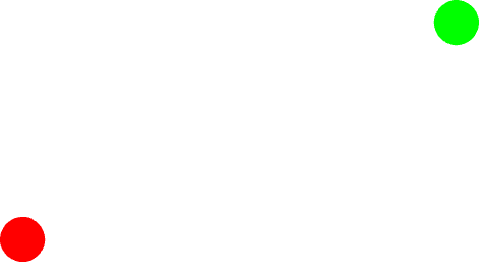

Specify vertex colors for 2D points:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-g3z8y

Out[1]=1

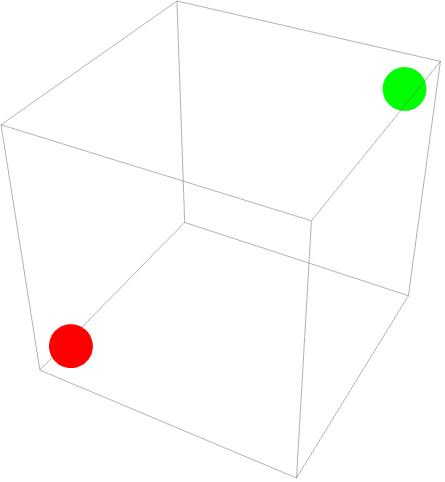

Specify vertex colors for 3D points:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-fkwrh4

Out[1]=1

Opacity can be specified for each vertex as well:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-lgy12

Out[1]=1

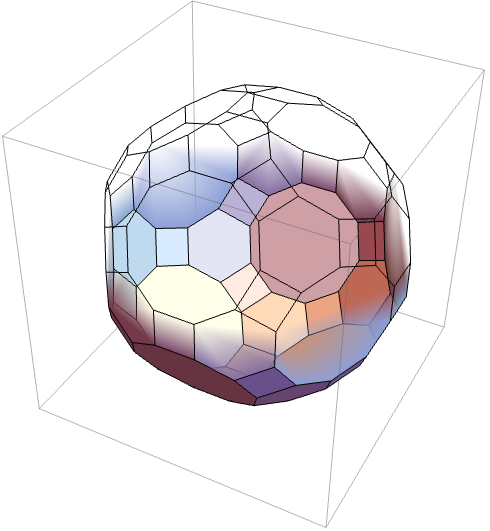

Assign colors for shared vertices:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-oj5cw

In[2]:=2

✖

https://wolfram.com/xid/0rtdmwyj6-hebi7

In[3]:=3

✖

https://wolfram.com/xid/0rtdmwyj6-eibhbd

Out[3]=3

Scope (1)Survey of the scope of standard use cases

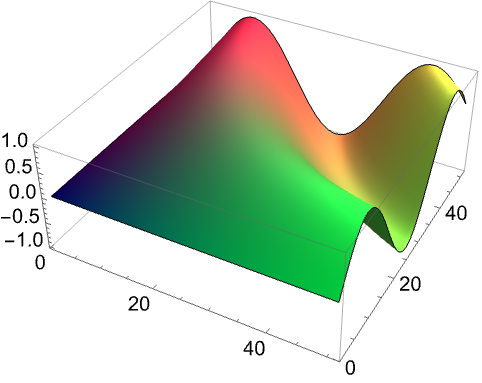

Some plot functions, such as ListPlot3D, support VertexColors:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-gbb7dj

In[2]:=2

✖

https://wolfram.com/xid/0rtdmwyj6-dh1jju

In[3]:=3

✖

https://wolfram.com/xid/0rtdmwyj6-kv3oge

Out[3]=3

Neat Examples (2)Surprising or curious use cases

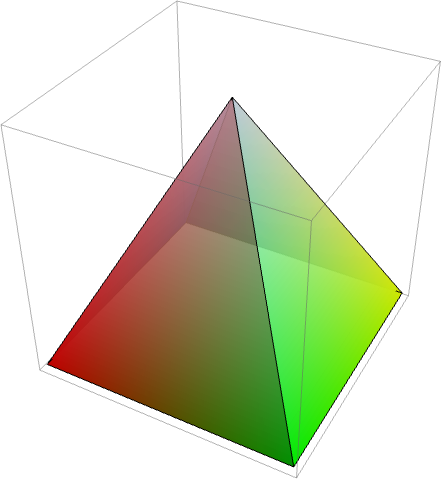

Create opacity gradients on 3D polygons:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-b9q7z3

Out[1]=1

Use an image from ExampleData:

In[1]:=1

✖

https://wolfram.com/xid/0rtdmwyj6-gv7e2q

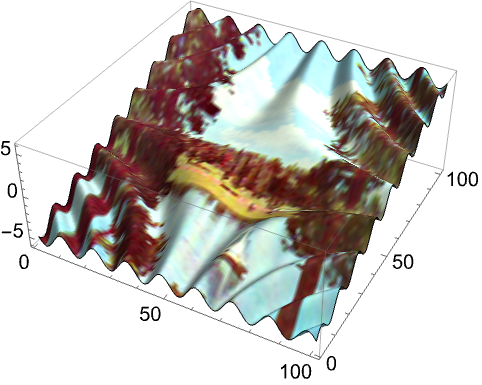

Plot the dataset with vertex colors, simulating the texture:

In[2]:=2

✖

https://wolfram.com/xid/0rtdmwyj6-nz9bo8

Out[2]=2
