VertexInComponent
✖
VertexInComponent

✖
VertexInComponent[g,{v1,v2,…},k]

gives the vertices with a directed path to at least one of v1, v2, … of at most length k.

✖
VertexInComponent[g,{v1,v2,…},{k}]

gives the vertices at length exactly k.

✖
VertexInComponent[{vw,…},…]

uses rules vw to specify the graph g.

Details

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

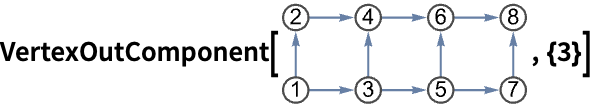

Find the in-component of a vertex:

In[2]:=2
✖
https://wolfram.com/xid/0ywrb6dlukqa-8risxi
In[3]:=3
✖
https://wolfram.com/xid/0ywrb6dlukqa-rdo0e7
Out[3]=3

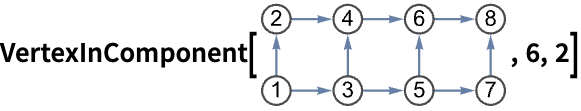

Highlight the in-component of a vertex:

In[4]:=4
✖
https://wolfram.com/xid/0ywrb6dlukqa-pjhv9j
Out[4]=4

Scope  (8)Survey of the scope of standard use cases

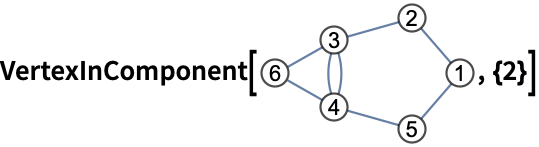

VertexInComponent works with undirected graphs:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-3jjvc1
Out[1]=1

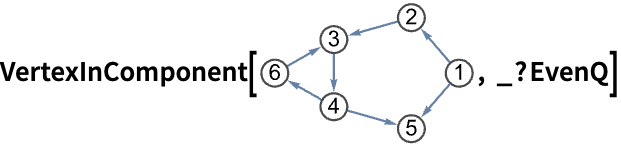

Directed graphs:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-zg3ksa
Out[1]=1

Multigraphs:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-w3859o
Out[1]=1

Mixed graphs:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-vbiq94
Out[1]=1

Use rules to specify the graph:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-bndh30
Out[1]=1

Use patterns to select a subset of vertices:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-bp7bob
Out[1]=1

Find the in-component connected to a vertex by a path of at most length 2 in a graph:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-imtbi
Out[1]=1

VertexInComponent works with large graphs:

In[1]:=1
✖
https://wolfram.com/xid/0ywrb6dlukqa-wd8zhr
In[2]:=2
✖
https://wolfram.com/xid/0ywrb6dlukqa-gopv0s
Out[2]=2

Properties & Relations  (1)Properties of the function, and connections to other functions

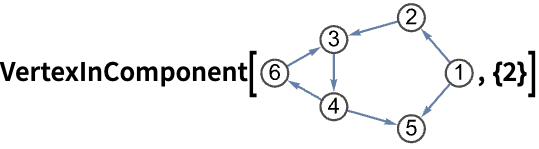

Use VertexOutComponent to find the out-component for directed graphs:

In[5]:=5
✖
https://wolfram.com/xid/0ywrb6dlukqa-nzzif9
Out[5]=5
