AcousticRadiationValue
AcousticRadiationValue[pred,vars,pars]
represents a time or frequency radiation boundary condition for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.
AcousticRadiationValue[pred,vars,pars,lkey]
represents a time or frequency domain boundary condition with local parameters specified in pars[lkey].
Details
- AcousticRadiationValue specifies a boundary condition for AcousticPDEComponent and is used as part of the modeling equation:
- AcousticRadiationValue is typically used to model sound sources and sinks on the boundary.
- AcousticRadiationValue models a time or frequency domain boundary source or sink with dependent variable pressure in , independent variables in and time variable in or frequency variable in .
- Time-dependent model variables vars are vars={p[t,x1,…,xn],t,{x1,…,xn}}.
- Frequency-dependent model variables vars are vars={p[x1,…,xn],ω,{x1,…,xn}}.
- The time domain acoustics model AcousticPDEComponent is based on a wave equation with time variable , density , sound speed and sound sources and :
- The frequency domain acoustics model AcousticPDEComponent is based on a Helmholtz equation with angular frequency :
- The time domain radiation value AcousticRadiationValue with boundary pressure source , boundary unit normal vector and unit wave direction vector models:
- The frequency domain radiation value AcousticRadiationValue models:
- The dipole source will only be valid within the domain and thus can be excluded from the boundary conditions.
- Model parameters pars are specified as for AcousticPDEComponent.
- The following model parameters pars can be given:
-
parameter default symbol "BoundaryUnitNormal" Automatic "MassDensity" 1 , density of media in "Material" Automatic "SoundSpeed" 1 , speed of sound in "SoundDirectionVector" , sound direction vector "SoundIncidentPressure" 0 , sound pressure in - The relation between the outward-pointing boundary unit normal vector and the incident sound wave direction vector is illustrated in the following:

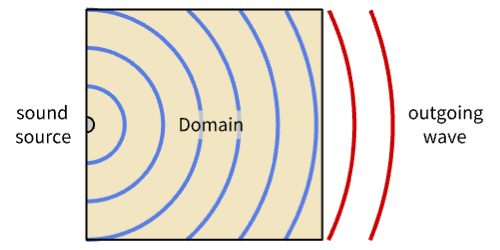

- AcousticRadiationValue combines an AcousticPressureCondition and an AcousticAbsorbingValue.
- AcousticRadiationValue evaluates to a generalized NeumannValue.
- The boundary predicate pred can be specified as in NeumannValue.
- An absorbing boundary can be used with:
-
analysis type applicable Time Domain Yes Frequency Domain Yes Eigenfrequency No - If the AcousticRadiationValue depends on parameters that are specified in the association pars as …,keypi…,pivi,…], the parameters are replaced with .
Examples
open allclose allBasic Examples (4)

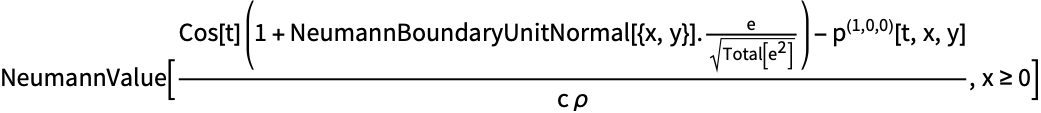

Set up a time domain acoustic radiation boundary:

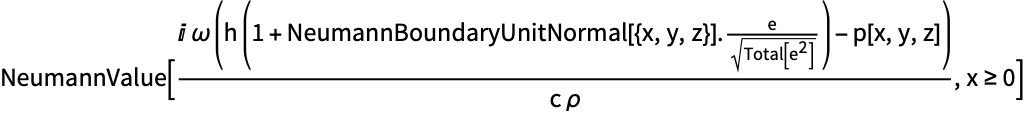

Set up a frequency domain acoustic radiation boundary:
Define model variables vars for a frequency domain acoustic pressure field with model parameters pars:
Define silent initial conditions ics:

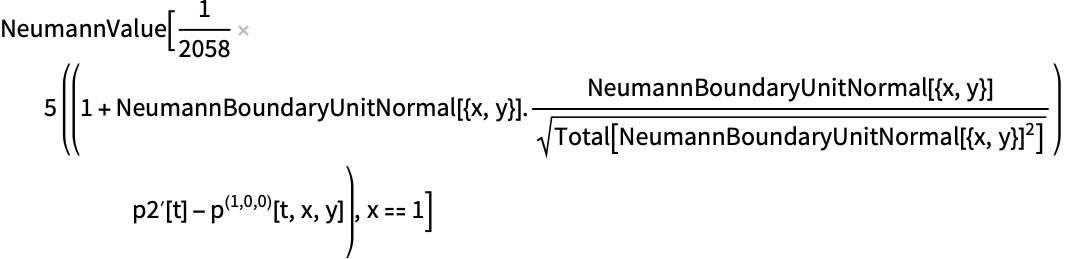

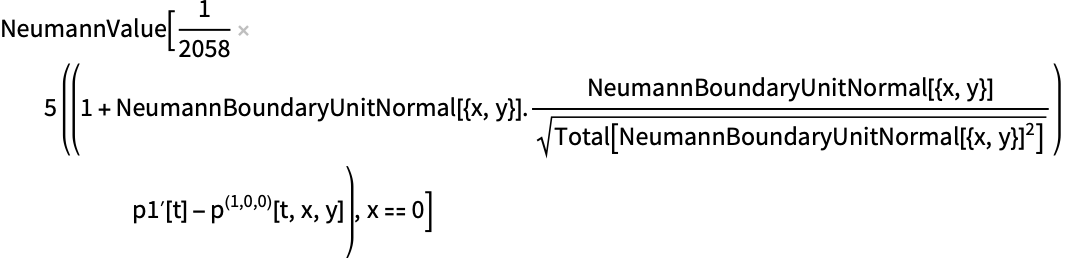

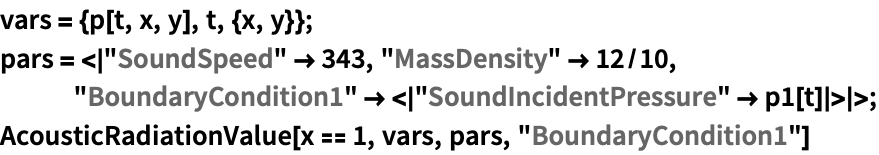

Set up the equation with an acoustic radiation boundary at the left end, a pressure source of and a radiation angle of :
Define model variables vars for a frequency domain acoustic pressure field with model parameters pars:

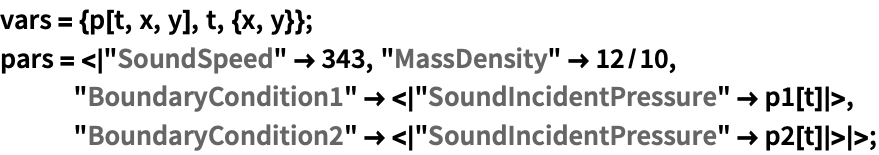

Set up the equation with an acoustic radiation boundary at the left end, a pressure source of and a radiation angle of :

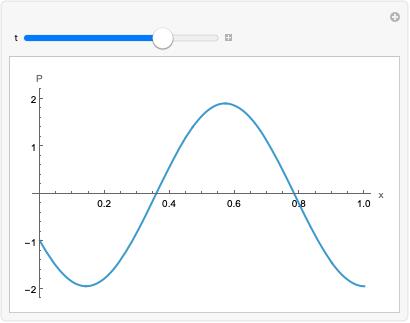

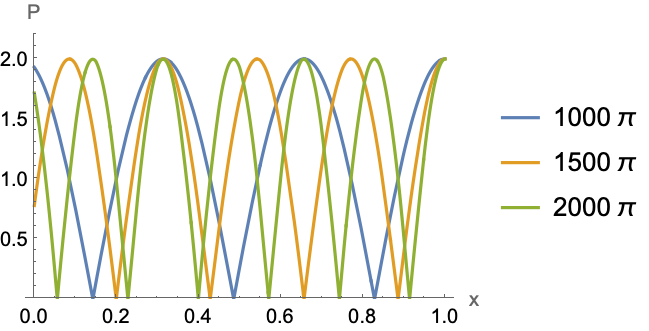

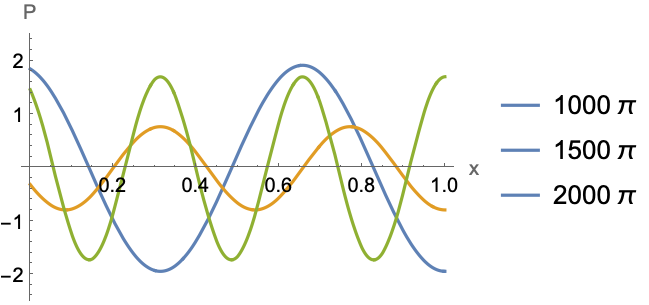

Visualize the sound field in the frequency domain at various frequencies :
