AcousticSoundHardValue
AcousticSoundHardValue[pred,vars,pars]
represents a time or frequency domain sound hard boundary condition for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.
AcousticSoundHardValue[pred,vars,pars,lkey]
represents a time or frequency domain boundary condition with local parameters specified in pars[lkey].
Details
- AcousticSoundHardValue specifies a boundary condition for AcousticPDEComponent and is used as part of the modeling equation:

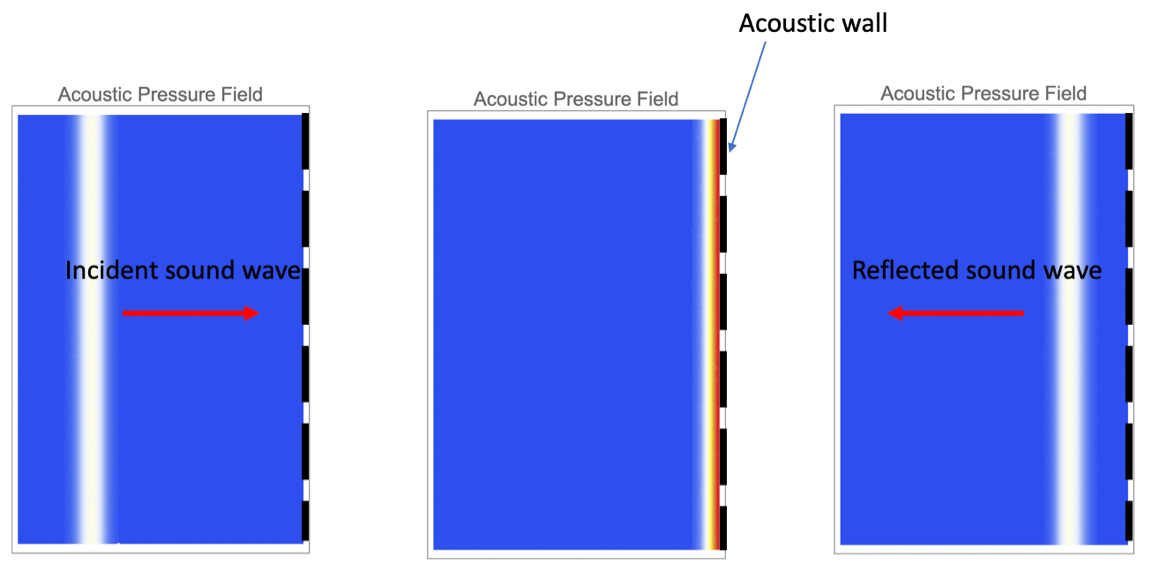

- AcousticSoundHardValue is typically used to model an acoustic wall on the boundary.
- AcousticSoundHardValue models a time or frequency domain sound hard boundary with dependent variable
, independent variables
and time variable
or frequency variable
. - Stationary model variables vars are vars={p[x1,…,xn],{x1,…,xn}}.
- Time-dependent model variables vars are vars={p[t,x1,…,xn],t,{x1,…,xn}}.
- Frequency-dependent model variables vars are vars={p[x1,…,xn],ω,{x1,…,xn}}.
- The time domain acoustics model AcousticPDEComponent is based on a wave equation with time variable
, density
, sound speed
and sound sources
and
: - The frequency domain acoustics model AcousticPDEComponent is based on a Helmholtz equation with angular frequency
: - The time domain absorbing value AcousticSoundHardValue models:
- The frequency domain absorbing value AcousticSoundHardValue models:
- If no other boundary condition is specified on some part of boundary, then AcousticSoundHardValue is the default.
- AcousticSoundHardValue evaluates to a NeumannValue.
- The boundary predicate pred can be specified as in NeumannValue.
- An absorbing boundary can be used with:
-
analysis type applicable Time Domain Yes Frequency Domain Yes Eigenfrequency Yes - If the AcousticSoundHardValue depends on parameters
that are specified in the association pars as …,keypi…,pivi,…], the parameters
are replaced with
.
Examples
open allclose allBasic Examples (3)
Set up an acoustic sound hard boundary:
Define model variables vars for a transient acoustic pressure field with model parameters pars:
Define initial conditions ics of a right-going plane wave
:
Set up the equation with an acoustic sound hard boundary at the right end:
Define model variables vars for a frequency domain acoustic pressure field with model parameters pars:
Set up the equation with an acoustic radiation boundary at the left, a pressure source
of
and an acoustic sound hard boundary at the right:
Visualize the solution in the frequency domain at various frequencies
:
